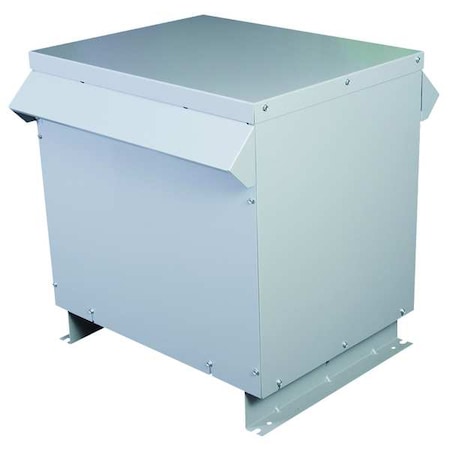

Acme Electric T3075K0044B 3 ?, Dry Type, 75kVA,240 Prim V, 208Y/120 Sec V, DOE 2016, NEMA 3R

Acme Electric T3075K0044B 3 ?, Dry Type, 75kVA,240 Prim V, 208Y/120 Sec V, DOE 2016, NEMA 3Rzoom

Attributes

Key Value
ApplicationDry Type Distribution T.
ApprovalsCSA, UL
BrandAcme Electric
Catalog NumberT3075K0044B
ColorASA 61 Gray
Country of OriginMexico
Depth22.37 in
Dimensions22.37 in x 28.15 in x 2.
Each - Width28.15 in
EnclosedYes
EnclosureNEMA 3R
Enclosure MaterialSteel
Enclosure RatingNEMA 3R
Family SeriesAcme Electric Transform.
Frequency Rating60 Hz
Gross Weight600 lbs
Height29.41 in, 29.41
Height UOMInch
Hz - Electrical60 Hz
IncludesWeathershield
Input Voltage - Transfo.240V AC Delta
Item - TransformerThree Phase Transformer
Item NumberT3075K0044B
Item TypeIsolation transformer
Knockout Size - Transfo.No Knockout
Length22.37 in, 22.37
Length UOMInch
Made in USANo
ManufacturerAcme Electric, Acme Ele.
Manufacturer Part NumberT3075K0044B
MountingFloor
Mounting - TransformerFloor
Net Weight0 lbs
Number of TapsTwo 2-1/2% (+) & Two 2-.
Outdoor Rated - Transfo.Yes
Output Voltage208VAC Wye/120VAC
Output Voltage - Transf.120V AC, 208V AC Wye
Phase3
Phase - ElectricalThree
Primary Voltage240 V, 240D V
Secondary Voltage208Y/120 V, 120 V, 208 V
Special FeaturesMeet DOE 2016 efficienc.
StandardUL 1561, UL File Number.
StandardsC22.2 No. 47, File E125.
Temp. Rise150 Degrees C
Temperature Rating150 Degrees C
TypeDry Sealed
UPC047503093184
VA Rating75,000 VA
VA Rating - Transformer75 kVA
Voltage Function - Tra.Step Down
Width28.15, 28.15 in
Width UOMInch
Winding Material - Tran.Aluminum

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG01305644315.991In StockAcme Electric600.04315.99 @ 1
Newark08AC12434398.641In StockACME ELECTRIC4398.64 @ 1
thumbzoomGalcoT3075K0044B-ACME5034.591In StockAcme Electric600.05034.59 @ 1
thumbzoomcrescentelectric.com5541618627.81In StockAcme Electric8627.8 @ 1
