Acme Electric

B07R3QSTJ3

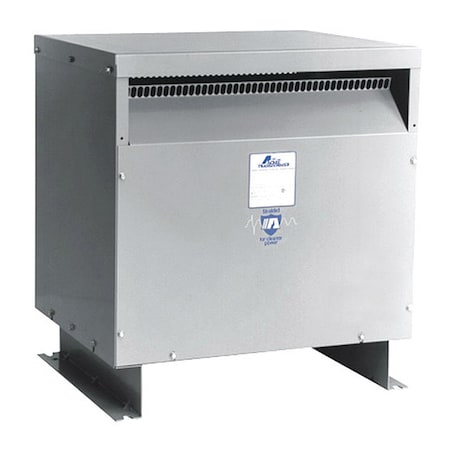

Acme Electric TP531203S 1 ?, 60 Hz, 600 Primary Volts-Three Windings, 50 W

Acme Electric TP531203S 1 ?, 60 Hz, 600 Primary Volts-Three Windings, 50 Wzoom

Attributes

Key Value
Approvals:UL;CSA
Brand:Acme Electric
Circuit Diag. No.:ACME_XFMR_WD-11
ColorGray
Country of Origin (subj.Mexico
Depth22.37 in
Diag. No.:ACME_DIAG_E
Enclosed:No
Enclosure FinishPowder Coated
Enclosure MaterialSteel
Enclosure RatingNEMA 2
Enclosure TypeIndoor
Height29.9 in
Hz60
Hz - Electrical60 Hz
Input Voltage600VAC
Input Voltage - Transfo.600V AC
Insulation Class:Class R
IP Rating11
ItemSingle Phase Energy Eff.
Item - TransformerSingle Phase Energy Eff.
Item Category:Transformers
Item Number:TP-53120-3S
Knockout Size - Transfo.No Knockout
Manufacturers Warranty .10 yr
MountingFloor
Mounting - TransformerFloor
Mounting - TransformerFloor
Mounting:Wall;Floor
NEMA Rating:NEMA 2
Outdoor Rated - Transfo.No
Output Voltage120/240VAC
Output Voltage - Transf.120V AC, 240V AC
Phase - Electrical1
Phase:1
Picture No.:ACME_XFMR_E
Primary Fuseholder:Not Available
Primary Voltage:600
Promotion RestrictionNot eligible for promot.
Secondary Fuseholder:Not Available
Secondary Voltage:120/240
Series:TP
StandardsUL Listed,CSA Certified
Subcategory:General Purpose Transfo.
Temp. Rise150 Degrees C
Temperature Rise (F):302 Degrees F
Type:Distribution
UPC:475032043378
VA Rating50kVA
VA Rating - Transformer50 kVA
VA Rating:50,000 Volt-Amps
Voltage Function - Tra.Step Down
Width28.15 in
Winding Material - Tran.Aluminum

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoTP-53120-3S3240.951In StockAcme Electric340.03240.95 @ 1
thumbzoomZoroG21966613541.111In Stock26Acme Electric357.03541.11 @ 1
cbtcompany.comTP531203S4238.851In StockAcme Electric4238.85 @ 1
