| Application | Shop/Distribution Carts, Dollies, Waste Disposal Trucks, Warehouse Trucks, Floor Trucks |
| Caster Brake Type | Face Brake |
| Caster Frame Material | Steel |
| Caster Mounting Type | Plate |
| Caster Stem Type | Top Plate |
| Caster Sub-Type | Swivel |
| Core Color | Grey |
| Country of Origin (subject to change) | United States |
| Features | Economical Wheel, Kingpin, Medium Heavy Duty Caster |
| For Axle Dia. | 1/2 in |
| Frame Construction | Cold Formed |
| Frame Finish | Zinc |
| Hub Length | 2 3/16 in |
| Includes Spanner Bushing | Yes |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 2-5/8 in X 3 in |

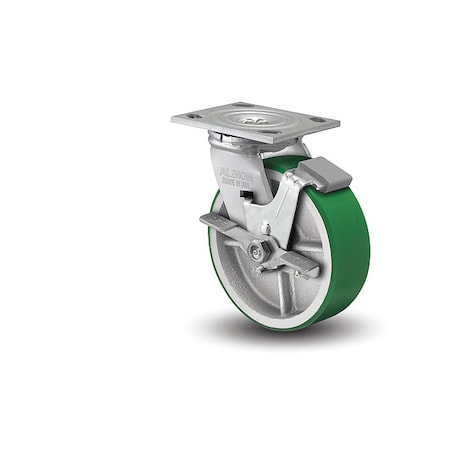

| Item | Medium Duty Industrial Plate Caster W/ Brake |
| Load Rating | 1200 lb |
| Load Rating Range | 1000 to 2999 lb |
| Mounting Bolt Dia. | 3/8 in |
| Mounting Height | 7-1/4 in |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4 in X 4-1/2 in |
| Mounting Plate Thickness | 1/4 in |
| Non-Marking | Yes |
| NSF Listed | Yes |
| Number of Mounting Holes | 4 |
| Number of Wheels | 1 |
| Operating Temperature Range | -40?F to 180?F |
| Outside Bolt Hole Spacing | 3 in X 3-5/8 in |
| Overall Wheel Width | 2 in |
| Standards | NSF Listed, RoHS Compliant |
| Swivel Construction | Kingpin |
| Swivel Lead | 1 3/4 in |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 4 3/4 in |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Core Material | Cast Iron |
| Wheel Dia. | 6 in |
| Wheel Type | Polyurethane (Cast Iron Core) |
| Wheel Width | 2 in |
| Wheel/Tread Color | Green |
| Wheel/Tread Hardness | 95A |
| Wheel/Tread Hardness Rating | Hard |
| Wheel/Tread Material | Polyurethane |
| With Toe Plate | No |
