TE CONNECTIVITY / ALCOSWITCH MTG-206N

B00MEJGDPQ

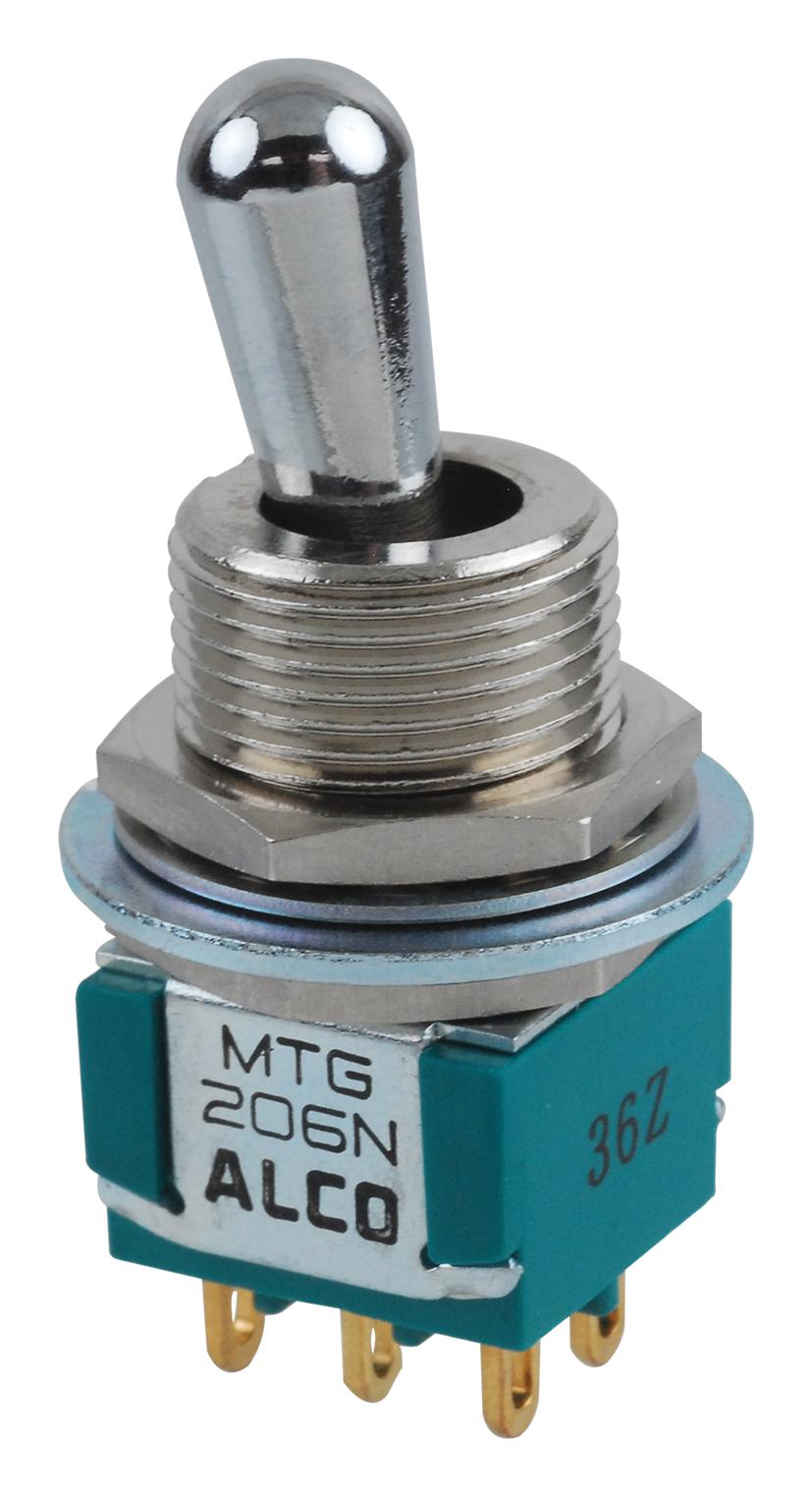

TE CONNECTIVITY/ALCOSWITCH MTG-206N Toggle Switch

TE CONNECTIVITY/ALCOSWITCH MTG-206N Toggle Switchzoom

Attributes

Key Value
ActuatorBat
Actuator Length11.48mm, 11.50mm
Actuator MaterialBrass, Chrome Plated Co.
Actuator TypeStandard Round, Bat
Alternate Part No.506-MTG206N
Base Product NumberMTG206
Body MaterialThermoset
BrandTE Connectivity / Alcos.
Bushing Size15/32-32
Bushing Thread15/32-32
CategorySwitches
CircuitDPDT
Contact ConfigurationDPDT
Contact Current Rating6 A@ 125 V ac
Contact FormDPDT
Contact MaterialCopper Alloy, Gold Flas.
Contact PlatingGold Flash over Silver
Contact Resistance20 mOhms, 10m?
Current Rating6 A
Current Rating (Amps)6A (AC), 4A (DC)
DescriptionSWITCH TOGGLE DPDT 6A 1.
Detailed DescriptionToggle Switch DPDT Pane.
Dielectric Strength1000 VAC
Digi-Key Part Number450-1314-ND
Electrical Life80,000 Cycles
Family NameAlcoswitch Family
FeaturesEpoxy Sealed Terminals
IlluminationNon-Illuminated
Illumination Type, Color-
Illumination Voltage (N.-
Ingress Protection-
Insulation Resistance1000 MegaOhms
ManufacturerTE Connectivity, TE Con.
Manufacturer Part No.MTG206N
Manufacturer Product Nu.MTG206N
Manufacturer Standard L.19 Weeks
Maximum Operating Tempe.+85?C, +80 ?C
MfrTE Connectivity ALCOSWI.
Minimum Operating Tempe.-20 ?C, -20?C
Mounting Hole Size0.468 in
Mounting StyleThrough Hole
Mounting TypePanel Mount
Number of Poles2
Number of Positions2
Operating Temperature-20?C ~ 80?C
Operating Temperature R.-20 +85?C
OperationOn-On
PackageBulk
Panel Cut Out DiameterPanel Cut Out Diameter
Panel Cut Out Size11.94 (Dia.)mm
Panel Cutout DimensionsCircular - 11.94mm Dia
Part # Aliases1-1437559-8
Product CategoryToggle Switches
Product StatusActive
Seal TypeEpoxy
SeriesMTG Green, Green, MTG S.
StockStock
Switch FunctionOn-On, ON - NONE - ON
Switch OperationLatching
Terminal SealSealed
Terminal TypeSolder
TerminationSolder Lugs
Termination StyleSolder Pin, Solder Lug
TypeToggle
Voltage Rating250 V, 125V ac
Voltage Rating - AC125 V
Voltage Rating - DC28 V
Voltage Rating AC125 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsMTG206N5.01In StockAlcoswitch5.0 @ 1
Sager Electronics1-1437559-814.76138TE Connectivity14.76 @ 1
Mouser506-MTG206N20.881305TE Connectivity20.88 @ 1

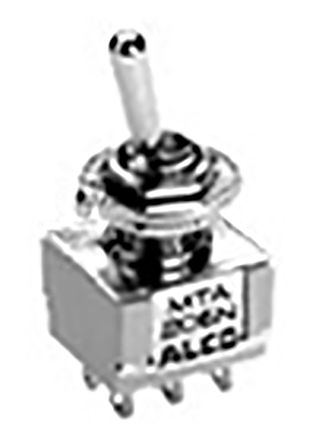

thumbzoomRS Delivers875-071621.6924100In StockTE Connectivity21.6924 @ 100
thumbzoomNewark61F88422.171132ALCOSWITCH - TE CONNECTIVITY22.17 @ 1
AmazonSCB00MEKOMIU22.451In StockTE CONNECTIVITY / ALCOSWITCH22.45 @ 1
thumbzoomDigi-Key72492423.6881459TE Connectivity ALCOSWITCH Switches23.688 @ 1
thumbzoomswatee.comMTG206N24.481123TE Connectivity24.48 @ 1
Onlinecomponents.comMTG206N24.62257TE Connectivity24.6 @ 2
us.rs-online.com7015611937.93147TE Connectivity37.93 @ 1
