mpn:
brand:
manufacturer:
MPN:
Description:

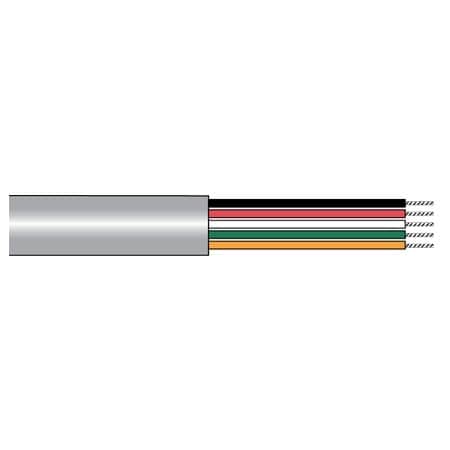

Multiconductor Cable, 5C, 22 AWG, 7x30, TC, PVC Ins, Slate PVC Jkt,UL CM,CSA CMG
Weight:
1.598125
Weight:
1.598125 LB
Price:
477.17
qty:
68
simpleSku:
TMyOTM:::1175C SL001
sku:
TMyOTM::SW:1175C SL001@y0
condition:
11
seller:
Digi-Key
amzMan:
alpha wire
DropShip:
True
Dimensions:
[12.0, 1.0, 1.0]
Attributes
| Key | Value |
|---|---|
| Alternate Part No. | 602-1175C-1000 |
| Application | For communication and control |
| Brand | Alpha Wire |
| Cable Type | Multi-Conductor |
| Category | Cables, Wires |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Tinned Copper (TC), Copper, Tinned, Copper |
| Conductor Size | 22 AWG |
| Conductor Strand | 7/30 |
| Configuration | Conductors |
| Delivery Restrictions | Due to size or weight of the product, your shipping charge may increase. |
| Features | - |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Thickness | 0.010 in. |
| Jacket (Insulation) Diameter | 0.200" (5.08mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0320" (0.813mm) |
| Jacket Color | Slate |
| Jacket Colour | Slate |
| Jacket Material | PVC, Polyvinyl Chloride (PVC) |
| Jacket Thickness | 0.032 in. |
| Length | 12, 1000.0' (304.8m), 1000 ft |
| Manufacturer | Alpha Wire |
| Manufacturer Part No. | 1175C SL001 |
| Maximum Operating Temperature | 75 ?C |
| Mfr | Alpha Wire |
| Number of Conductors | 5 |
| Operating Temperature | -20?C ~ 80?C |
| Outer Diameter | 0.2 in. |
| Outside Dia. | 0.2 in |
| Outside Diameter | 0.2 in |
| Package | Spool |
| Package Quantity | 1 |
| Packaging | Coil |
| Part Status | Active |
| Product Category | Multi-Conductor Cables |
| Product Header | Multiconductor Unshielded Communication and Control Cable |
| Ratings | - |
| Series | 1175C Series, - |
| Shield Coverage | - |
| Shield Material | - |
| Shield Type | - |
| Shielded / Unshielded | Unshielded |
| Shielding | Unshielded |
| Standards | CSA CMG; CSA FT4; UL AWM 2576; UL CM; UL VW-1, UL Type CM ; AWM 2576 ; CSA CMG FT4 |
| Stranding | 7x30, 7 x 30 |
| Temperature, Rating | -20 to 80 C |
| Type | Communication and Control |
| Unit Weight | 11.598 kg |
| Usage | Communication, Control |
| Voltage | 150 V, 300V |
| Voltage Rating | 300 V |
| Wire Gauge | 22 AWG |
| Wire Gauge - AWG | 22 |
| Wire Size | 22 AWG |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | alldataresource.com | A1175C | 1.46 | 1.46 | 1 | 68 | Alpha Wire | 1.46 @ Qty: 1+ | ||
| RS Delivers | 187-1877 | 1.7988 | 1.7988 | 1 | 305 | Alpha Wire | 1.7988 @ Qty: 1+ | |||
 | AI Consolidated | 1175C-SL001-ALPHA-WIRE | 374.39 | 374.39 | 1 | 68 | Alpha Wire | 25.57 | 374.39 @ Qty: 1+ | |
 | Digi-Key | A123-1000-ND | 477.17 | 477.17 | 1 | 68 | Alpha Wire | 477.17 @ Qty: 1+ | ||
| absupply.net | ALPHA WIRE CMP. 1175C SL001 | 512.66 | 512.66 | 1 | 68 | Alpha Wire | 512.66 @ Qty: 1+ | |||
 | Zoro | G1161003 | 548.99 | 548.99 | 1 | 68 | Alpha Wire | 548.99 @ Qty: 1+ | ||
| us.rs-online.com | 70139554 | 668.88 | 668.88 | 1 | 2 | Alpha Wire | 668.88 @ Qty: 1+ | |||
 | swatee.com | 1175C SL001 | 718.66 | 718.66 | 1 | 4 | Alpha Wire | 718.66 @ Qty: 1+ | ||
 | Newark | 02F8735 | 722.58 | 722.58 | 1 | In Stock | ALPHA WIRE | 722.58 @ Qty: 1+ |
