- mpn5507 SL002
- brandname: Alpha Wire
- manufacturername: Alpha Wire

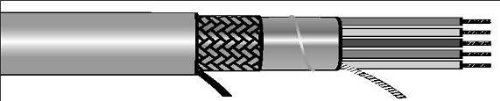

Alpha Wire 5507 SL002 Multi-Conductor Cables 24AWG7C SHIELD 500ft SPOOL SLATE
- Brand: Alpha Wire
- PartNumber: 5507 SL002
- Manufacturer: Alpha Wire
- Label: Alpha Wire
Attributes
| Key | Value |
|---|
| Application | For high technology in . |
| Base Product Number | 5507 |
| Cable Type | Multi-Conductor |
| Category | Cables, Wires |
| Conductor Insulation | Poly-Vinyl Chloride (PV. |
| Conductor Material | Tinned Copper (TC), Cop. |
| Conductor Size | 22 AWG |
| Conductor Strand | 7/28 |
| Description | CABLE 7CON 22AWG SLATE . |
| Detailed Description | 7 Conductor Multi-Condu. |
| Digi-Key Part Number | 5507SL002-ND |
| Family Name | Xtra-Guard Performance . |
| Features | Drain Wire, Rip Cord |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Thickness | 0.032 in. |
| Jacket (Insulation) Dia. | 0.442" (11.23mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0630" (1.600mm) |
| Jacket Color | Gray, Slate |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Thickness | 0.063 in. |
| Length | 500.0' (152.4m), 500 ft |
| Manufacturer | Alpha Wire |
| Manufacturer Product Nu. | 5507 SL002 |
| Manufacturer Standard L. | 21 Weeks |
| Maximum Operating Tempe. | 105 ?C |
| Mfr | Alpha Wire |
| Minimum Operating Tempe. | -20 ?C |
| Number of Conductors | 7 |
| Operating Temperature | -30?C ~ 105?C |
| Outer Diameter | 0.48 in. |
| Package | Spool |
| Packaging | Coil |
| Product Header | Xtra.Guard? 1 Suprashie. |
| Product Status | Active |
| Ratings | UL Style 21896 |
| Series | Xtra-Guard? 1, Xtra-Gua. |
| Shield | Aluminum/Polyester/Alum. |
| Shield Coverage | 100%, 70% |
| Shield Material | Aluminum/Polyester/Alum. |
| Shield Type | Foil, Braid |
| Shielding | Foil & Braid |
| Standards | CA Prop 65,CE,CSA TEW,C. |
| Stranding | 7x30 |
| Temperature, Rating | -20 to 105 C |
| Usage | - |
| Voltage | 600 V |
| Voltage Rating | 600 V |
| Wire Gauge | 22 AWG |
| Wire Size | 22 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | AI Consolidated | 5507-SL002-ALPHA-WIRE | 3738.23 | 1 | 500 | | Alpha Wire | 61.0 | 3738.23 @ 500 |
 | Digi-Key | 3713389 | 6180.99 | 1 | 500 | | Alpha Wire | | 6180.99 @ 500 |
 | Newark | 02F9166 | 7129.93 | 1 | 500 | | ALPHA WIRE | | 7129.93 @ 500 |
| us.rs-online.com | 70138526 | 8259.58 | 1 | 500 | | Alpha Wire | | 8259.58 @ 500 |
