- mpn5547SL005
- brandname: ALPHA WIRE
- manufacturername: ALPHA WIRE

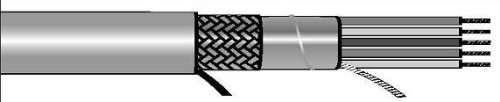

Alpha Wire 5547 SL005 Multi-Conductor Cables 14AWG 7C SHIELD 100ft SPOOL SLATE
- Brand: Alpha Wire
- PartNumber: 5547 SL005
- Model: 5547 SL005
- PackageQuantity: 1
- Manufacturer: AlphaWire
- Label: AlphaWire
Attributes
| Key | Value |
|---|
| Application | For high technology in . |
| Base Product Number | 5547 |
| Cable Type | Multi-Conductor |
| Category | Cables, Wires |
| Conductor Insulation | Poly-Vinyl Chloride (PV. |
| Conductor Material | Tinned Copper (TC), Cop. |
| Conductor Size | 14 AWG |
| Conductor Strand | 41/30 |
| Configuration | Conductors |
| Family Name | Xtra-Guard Performance . |
| Features | Drain Wire, Rip Cord |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Thickness | 0.032 in. |
| Jacket (Insulation) Dia. | 0.575" (14.61mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0630" (1.600mm) |
| Jacket Color | Gray, Slate |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Thickness | 0.063 in. |
| Length | 100.0' (30.5m), 100 ft |
| Maximum Operating Tempe. | 105 ?C |
| Mfr | Alpha Wire |
| Minimum Operating Tempe. | -20 ?C |
| Number of Conductors | 7 |
| Operating Temperature | -30?C ~ 105?C |
| Outer Diameter | 0.61 in. |
| Package | Spool |
| Packaging | Coil |
| Part Status | Active |
| Product Header | Xtra.Guard? 1 Suprashie. |
| Ratings | UL Style 21896 |
| Series | Xtra-Guard? 1, Xtra-Gua. |
| Shield Coverage | 100%, 70% |
| Shield Material | Aluminum/Polyester/Alum. |
| Shield Type | Foil, Braid |
| Shielding | Braid, Foil |
| Standards | CA Prop 65 ; CE ; CSA A. |
| Stranding | 41x30 |
| Temperature, Rating | -20 to 105 C |
| Usage | - |
| Voltage | 600 V |
| Voltage Rating | 600 V |
| Wire Gauge | 14 AWG |
| Wire Size | 14 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | AI Consolidated | 5547-SL005-ALPHA-WIRE | 1943.85 | 1 | 100 | | Alpha Wire | 24.1 | 1943.85 @ 100 |
| Digi-Key | 3713608 | 3214.07 | 1 | 100 | | Alpha Wire | | 3214.07 @ 100 |
 | Newark | 27M3025 | 3707.51 | 5 | 100 | | ALPHA WIRE | | 3707.51 @ 100 |
| Radwell | 5547SL005 | 3850.63 | 1 | 100 | | ALPHA WIRE | | 3850.63 @ 100 |
| us.rs-online.com | 70138562 | 4046.35 | 5 | 100 | | Alpha Wire | | 4046.35 @ 100 |
