- mpn6307SL005
- brandname: ALPHA WIRE
- manufacturername: ALPHA WIRE

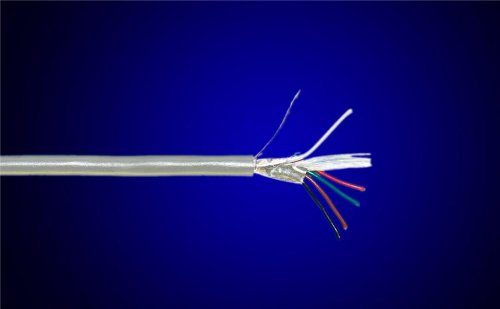

Multiconductor Shielded Cable, Control, Slate, 15 Conductor, 24 AWG, 0.22 mm?, 100 ft, 30.5 m
- Brand: Alpha Wire
- PartNumber: 6307 SL005
- Model: 6307 SL005
- PackageQuantity: 1
- Manufacturer: ALPHA WIRE
- Label: ALPHA WIRE
Attributes
| Key | Value |
|---|
| Alternate Part No. | 602-6307-100 |
| Application | For EIA RS-232C interfa. |
| Brand | Alpha Wire |
| Cable Type | Multi-Conductor |
| Category | Cables, Wires |
| Conductor Insulation | Poly-Vinyl Chloride (PV. |
| Conductor Material | Tinned Copper (TC), Cop. |
| Conductor Size | 24 AWG |
| Conductor Strand | 7/32 |
| Configuration | Conductors |
| Features | Drain Wire, Shield : Al. |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Jacket (Insulation) Dia. | 0.270" (6.86mm) |
| Jacket (Insulation) Mat. | Poly-Vinyl Chloride (PV. |
| Jacket (Insulation) Thi. | 0.0320" (0.813mm) |
| Jacket Color | Gray, Slate |
| Jacket Colour | Gray |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Thickness | 0.032 in. |
| Length | 100.0' (30.5m), 100 ft |
| Manufacturer | Alpha Wire |
| Manufacturer Part No. | 6307 SL005 |
| Maximum Operating Tempe. | 80 ?C |
| Mfr | Alpha Wire |
| Minimum Operating Tempe. | -20 ?C |
| Number of Conductors | 15 |
| Operating Temperature | -20?C ~ 80?C |
| Outer Diameter | 0.284 in. |
| Outside Diameter | 6.86 mm |
| Package | Spool |
| Packaging | Coil |
| Part Status | Active |
| Product Category | Multi-Conductor Cables |
| Product Header | Multiconductor Foil Shi. |
| Ratings | UL Style 2464 |
| Series | 6307, -, 6307 Series |
| Shield | Foil with Drain Wire |
| Shield Coverage | 100% |
| Shield Material | Aluminum/Polyester Tape. |
| Shield Type | Foil |
| Shielding | Shielded, Foil |
| Standards | UL Type CM ; UL AWM Sty. |
| Stranding | 7 x 32, 7x32 |
| Temperature, Rating | -20 to 80 C |
| Unit Weight | 2.313 kg |
| Usage | - |
| Voltage | 300 V |
| Voltage Rating | 300 V |
| Wire Gauge | 24 AWG |
| Wire Gauge - AWG | 24 |
| Wire Size | 24 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Digi-Key | A6307SL-100-ND | 240.88 | 1 | In Stock | | Alpha Wire | | 240.88 @ 1 |
 | Radwell | 6307SL005 | 273.85 | 1 | In Stock | | ALPHA WIRE | | 273.85 @ 1 |
 | swatee.com | 6307 SL005 | 278.83 | 1 | 4 | | Alpha Wire | | 278.83 @ 1 |
| us.rs-online.com | 70139315 | 366.55 | 1 | In Stock | | Alpha Wire | | 366.55 @ 1 |
 | Newark | 01C8558 | 396.88 | 1 | 1 | | ALPHA WIRE | | 396.88 @ 1 |
