- mpn3G15UM
- brandname: Altech Corp
- manufacturername: Altech Corp

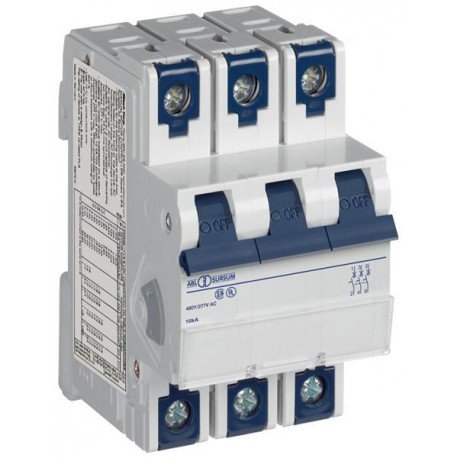

Circuit Breaker, Three Pole, G Curve, 15A, UL508 Listed
- Brand: ALTech
- PartNumber: 3G15UM
- Model: 3G15UM
- PackageQuantity: 1
- Manufacturer: Altech
- Label: Altech
Attributes
| Key | Value |
|---|
| Actuator Type | Lever, Toggle, Handle |
| Alarm Switch | No |
| Alternate Part No. | 845-3G15UM |
| Approval Agency | CSA, UL508 |
| Approvals | CSA C22.2 No. 14 Certif. |
| Auxiliary Switch | Optional |
| Base Product Number | 3G15 |
| Brand | Altech |
| Breaker Type | Thermal Magnetic |
| Busbar | Optional |
| Category | Circuit Protection |
| Characteristic | G Curve |
| Circuit Function | Control Circuit |
| CSA Standard | 22.2 |
| Current Rating | 15A, 15 A |
| Current Rating (Amps) | 15A |
| Description | CIR BRKR THRM-MAG 15A L. |
| Detailed Description | Circuit Breaker Thermal. |
| Digi-Key Part Number | 1920-1520-ND |
| Dimensions | 2.94 L x 2.07 W x 3.67 . |
| Family Series | Altech Circuit Breakers. |
| Gross Weight | 0.9 lbs |
| Illuminated | Not Illuminated |
| Illumination | None |
| Illumination Voltage (N. | - |
| Item Number | 3G15UM |
| kAIC @ 277/480 VAC | 10 |
| Manufacturer | Altech, Altech Corporat. |
| Manufacturer Part No. | 3G15UM |
| Manufacturer Part Number | 3G15UM |
| Manufacturer Product Nu. | 3G15UM |
| Manufacturer Standard L. | 19 Weeks |
| Max Voltage | 480 VAC |
| Mfr | Altech Corporation |
| Mounting | DIN Rail |
| Mounting Style | DIN Rail |
| Mounting Type | DIN Rail Mount, DIN Rail |
| Net Weight | 0.905 lbs |
| Neutral Pole | No |
| Number of Poles | 3 Poles, 3 |
| Operating Temperature R. | - 25 C to + 55 C |
| Package | Bulk |
| Poles | 3 |
| Product | Circuit Protection Devi. |
| Product Category | Circuit Breakers |
| Product Series | V-EA |
| Product Status | Active |
| Product Type | G-Trip |
| Protection | Motor |
| Series | UM, V-EA, V-EA Series |
| Shunt Trip | Optional |
| Standards | CSA C22.2 No. 14 Certif. |
| Terminal Type | Screw |
| Terminals Included | Line and Load |
| Termination | Screw |
| Termination Style | Box Clamp, Ring Tongue |
| Trip Curve | G |
| Trip Time | 100 ms |
| Trip Unit | Fixed Thermal / Fixed M. |
| Type | Thermal/Magnetic |
| UL Standard | 508 |
| Undervoltage Release | Optional |
| Voltage Rating | 480 ; 480 ; 277 V, 277 . |
| Voltage Rating - AC | 480 V |
| Voltage Rating AC | 277 V |
| Voltage Rating DC | 80 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hawk Electronics | 3G15UM | 50.6 | 1 | In Stock | | Altech | | 50.6 @ 1 |
 | Galco | 3G15UM-ALTH | 61.61 | 1 | In Stock | | Altech | 0.905 | 61.61 @ 1 |
 | jensentools.com | 10109360 | 69.3 | 1 | In Stock | | Altech | | 69.3 @ 1 |
| Future Electronics | 6107433 | 70.128 | 4 | 4 | | Altech Corporation | | 70.128 @ 4 |
| Newark | 95AK6968 | 71.0 | 4 | In Stock | | ALTECH | | 71.0 @ 1 |
 | Digi-Key | 8547310 | 72.8 | 1 | 7 | | Altech Corporation | | 72.8 @ 1 |
 | swatee.com | 3G15UM | 75.64 | 1 | 1 | | Altech | | 75.64 @ 1 |
| us.rs-online.com | 70076369 | 80.07 | 1 | 3 | | Altech Corp | | 80.07 @ 1 |
