TE Connectivity JMAPD-26XL

B096T2H8VW

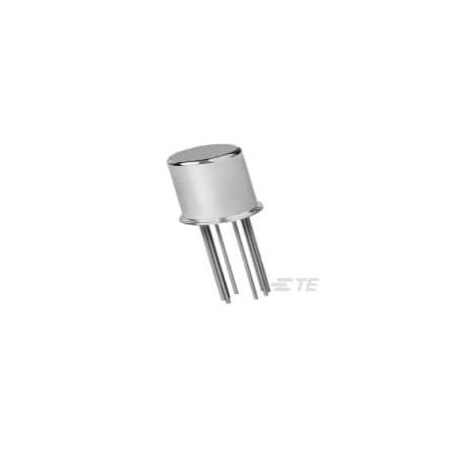

TO-5-.100 Grid Relays

TO-5-.100 Grid Relayszoom

Attributes

Key Value
CategoryRelays
Coil Current17 mA
Coil Insulation-
Coil Resistance1.56 kOhms
Coil TypeNon Latching
Coil Voltage26.5VDC
Contact FormDPDT (2 Form C)
Contact MaterialSilver Palladium (AgPd).
Contact Rating (Current)1 A
Country of Origin (subj.India
DescriptionJMAPD-26XL = M39016/15.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number2266-1617124-3-ND
FeaturesDiode
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.1617124-3
MfrTE Connectivity Aerospa.
Mounting TypeThrough Hole
Must Operate Voltage14.2 VDC
Must Release Voltage1.37 VDC
Operate Time2 ms
Operating Temperature-65?C ~ 125?C
PackageBulk
Product StatusActive
Relay TypeGeneral Purpose
Release Time4 ms
Seal RatingSealed - Hermetically
SeriesMAPD
Switching Voltage28VDC - Nom
Termination StylePC Pin

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1617124-350.27238TE CONNECTIVITY/AMP BRAND50.27 @ 2
Newark41AJ344772.682528AMP - TE CONNECTIVITY72.68 @ 25
thumbzoomDigi-Key1470136375.52238TE Connectivity Aerospace, Defense and Marine75.52 @ 2
thumbzoomZoroG40097514177.4625In StockTe Connectivity77.46 @ 25
Onlinecomponents.comM39016/15-039L98.23In StockTE Connectivity / CII Brand98.2 @ 3
Allied ElectronicsE5192518100.210In StockTE Connectivity100.2 @ 10
Electro SonicM3901615039L104.0923251TE Connectivity / CII104.092 @ 3
