TE Connectivity JMSP-12XL

B083G9LFD3

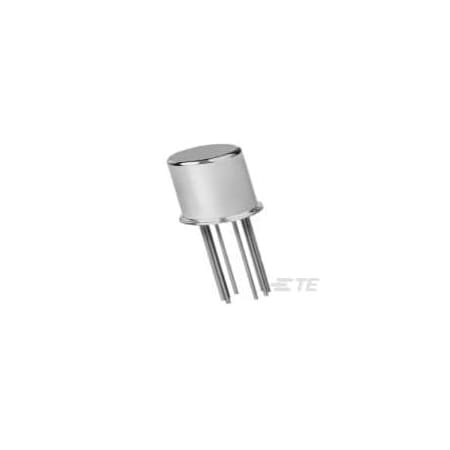

JMSP-12XL, to-5 DPDT Established Reliability Relay

JMSP-12XL, to-5 DPDT Established Reliability Relayzoom

Attributes

Key Value
CategoryRelays
Coil Current14.1 mA
Coil Insulation-
Coil Resistance850 Ohms
Coil TypeNon Latching
Coil Voltage12VDC
Contact FormDPDT (2 Form C)
Contact MaterialSilver Palladium (AgPd).
Contact Rating (Current)1 A
Country of Origin (subj.India
DescriptionJMSP-12XL = M39016/11-0.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number2266-1617129-1-ND
Features-
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.1617129-1
MfrTE Connectivity Aerospa.
Mounting TypeThrough Hole
Must Operate Voltage7 VDC
Must Release Voltage0.64 VDC
Operate Time4 ms
Operating Temperature-65?C ~ 125?C
PackageBulk
Product StatusActive
Relay TypeGeneral Purpose
Release Time2 ms
Seal RatingSealed - Hermetically
SeriesMSP
Switching Voltage28VDC - Nom
Termination StylePC Pin

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1617129-162.62501TE CONNECTIVITY/AMP BRAND62.62 @ 50
Newark41AJ345280.6711AMP - TE CONNECTIVITY80.67 @ 1
thumbzoomDigi-Key1468629681.2950In StockTE Connectivity Aerospace, Defense and Marine81.29 @ 50
Onlinecomponents.comM39016/11-022L102.13In StockTE Connectivity / CII Brand102.1 @ 3
Allied ElectronicsE5192616104.1810In StockTE Connectivity104.18 @ 10
thumbzoomZoroG4009747792611.525In StockTe Connectivity2611.5 @ 25
