TE Connectivity / AMP 3-2176054-5

B0849M4GRH

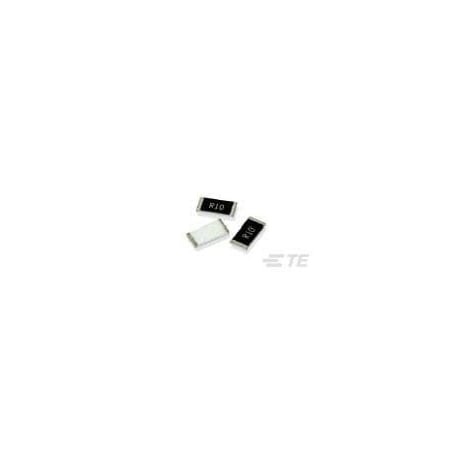

3-2176054-5, SMD Low OHMIC Current Sense Resistor (250 Items)

3-2176054-5, SMD Low OHMIC Current Sense Resistor (250 Items)zoom

Attributes

Key Value
Base Product NumberRLP73M2
CategoryResistors
CompositionThick Film
DescriptionRES 0.047 OHM 5% 1/4W 0.
Detailed Description47 mOhms ?5% 0.25W, 1/4.
Digi-Key Part NumberA109785TR-ND - Tape & R.
Dimensions2 x 1.25 x .4
Element TypeThick Film
Failure Rate-
FeaturesCurrent Sense
Height - Seated (Max)0.026" (0.65mm)
ManufacturerTE Connectivity Passive.
Manufacturer Product Nu.RLP73M2AR047JTD
Manufacturer Standard L.10 Weeks
MfrTE Connectivity Passive.
Mount StyleSurface Mount
Number of Resistors1
Number of Terminations2
Operating Temperature-55?C ~ 155?C
PackageTape & Reel (TR)
Package / Case0805 (2012 Metric)
Package Quantity1
Packaging MethodTaped & Reeled
Power (Watts)0.25W, 1/4W
Power Rating.25
Product StatusActive
Product TypeFixed Resistor
Resistance47 mOhms, .047
Resistor TypeLow Ohmic Resistor
SeriesRL73, CGS
Size / Dimension0.079" L x 0.049" W (2..
Size Code0805
Supplier Device Package0805
Temperature Coefficient?400ppm/?C, ?400
Termination TypeSolder
Tolerance5%, ?5%

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark36AC33780.145000714AMP - TE CONNECTIVITY0.14 @ 5000
TE Connectivity3-2176054-50.14713749TE Connectivity (TE)0.147 @ 1
thumbzoomDigi-Key40321600.561340TE Connectivity Passive Product0.56 @ 1
thumbzoomZoroG501068797950.01714Te Connectivity950.0 @ 1
