- mpn112975
- brandname: Amphenol RF
- manufacturername: Amphenol RF

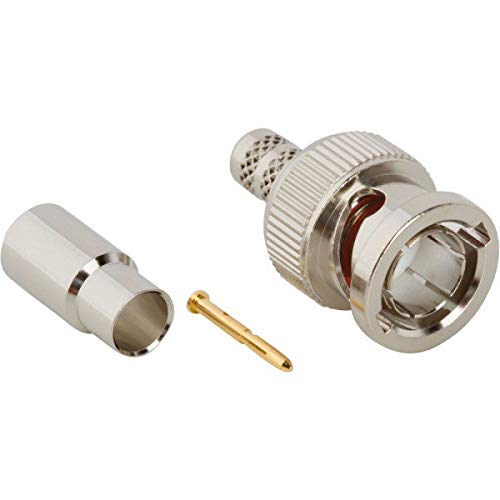

112975, RF Connector - BNC Straight Crimp Plug for RG-59 Plenum 20AWG 75 Ohms (10 Items)
- Brand: Amphenol RF
- PartNumber: 112975
- Model: 112975
- Manufacturer: Amphenol RF
- Label: Amphenol RF
Attributes
| Key | Value |
|---|
| Alternate Part No. | 523-112975 |
| Base Product Number | 1129 |
| Body Finish | Nickel |
| Body material | Brass |
| Body Material | Brass |
| Body plating | Nickel |
| Brand | Amphenol Connex |
| Cable Group | RG-59 Plenum, Belden 15. |
| Cable Type | Belden 1506A |
| Category | Connectors, Interconnec. |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector | Plug |
| Connector Style | BNC |
| Connector Type | BNC, Plug, Male Pin |
| Contact material | Brass |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact plating | gold-plated |
| Contact Termination | Crimp |
| Coupling Mechanism | Bayonet |
| Description | CONN BNC PLUG STR 75 OH. |
| Detailed Description | BNC Connector Plug, Mal. |
| Dielectric Material | Polytetrafluoroethylene. |
| Digi-Key Part Number | 112975-ND |
| Electrical mounting | crimped |
| Fastening Type | Bayonet Lock |
| Features | - |
| Frequency | 4GHz |
| Frequency - Max | 4 GHz |
| Gender | Plug |
| Housing Color | Silver |
| Impedance | 75 Ohms, 75Ohm |
| Includes | 3 pcs - 1 Connector, 1 . |
| Ingress Protection | - |
| Insertion Loss | - |
| Insulator material | PTFE |
| Kind of cable | Belden 1506A, |
| Kind of connector | male |
| Manufacturer | AMPHENOL RF, Amphenol |
| Manufacturer Part No. | 112975 |
| Manufacturer Product Nu. | 112975 |
| Manufacturer Standard L. | 14 Weeks |
| Mating Cycles | 500 |
| Max. frequency | 4GHz |
| Maximum Frequency | 4 GHz |
| Mechanical durability | 500 cycles |
| Mechanical mounting | for cable |
| Mfr | AMPHENOL RF |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line),. |
| Number of Ports | 1 |
| Operating Temperature | - |
| Operating temperature | -65...165?C |
| Operating Temperature R. | - 65 C to + 165 C |
| Orientation | Straight |
| Package | Bag |
| Packaging | Bulk |
| Polarity | Standard |
| Primary Type | BNC |
| Product | Connectors |
| Product Category | RF Connectors / Coaxial. |
| Product Status | Active |
| RF Series | BNC |
| Series | BNC, - |
| Shield Termination | Crimp |
| Spatial orientation | Straight |
| Termination | Crimp |
| Termination Style | Cable - Crimp |
| Type | Cable Plug |
| Type of connector | BNC |
| Unit Weight | 10.420 g |
| Voltage Rating | 500 V |
| Wave impedance | 75? |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | 112975 | 2.17 | 1 | 44 | | AMPHENOL RF | | 2.17 @ 1 |
| Waldom | AMPHENOL RF 112975 | 2.88 | 20 | 45 | | AMPHENOL RF | | 2.88 @ 20 |
| Hawk Electronics | 112975 | 3.31 | 100 | 30 | | Amphenol-RF | | 3.31 @ 100 |
 | jensentools.com | 52357.1 | 3.88 | 1 | 30 | | Amphenol RF | | 3.88 @ 1 |
 | swatee.com | 112975 | 4.6 | 1 | 59 | | Amphenol | | 4.6 @ 1 |
 | NEP Electronics | 112975 | 5.35 | 13 | 45 | | Amphenol RF | | 5.35 @ 13 |
| us.rs-online.com | 70032410 | 5.53 | 100 | 30 | | Amphenol RF | | 5.53 @ 100 |
| Mouser | 523-112975 | 5.55 | 1 | 14 | | Amphenol RF | | 5.55 @ 1 |
| Newark | 01AK4043 | 5.89 | 1 | In Stock | | AMPHENOL RF | | 5.89 @ 1 |
| TME | 112975 | 6.25 | 1 | 30 | | AMPHENOL RF | | 6.25 @ 1 |
| Verical | 112975 | 6.93 | 9 | 75 | | Amphenol RF | | 6.93 @ 9 |
 | Digi-Key | 3125477 | 19.62 | 1 | 45 | | Amphenol RF | | 19.62 @ 1 |
| Freelance Electronics | 112975 | 54.89744 | 1 | 7 | | AMPHENOL CONNEX | | 54.89744 @ 1 |
