- mpn82-4426-11RFX
- brandname: AMPHENOL RF
- manufacturername: AMPHENOL RF

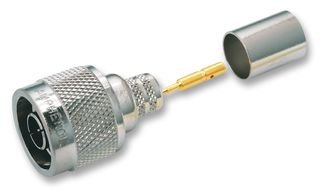

AMPHENOL RF 82-4426-11RFX RF/COAXIAL, N PLUG, STR, 50 OHM, CRIMP (1 piece)
- PartNumber: 82-4426-11RFX-AMPHENOL RF
- Model: 82-4426-11RFX-AMPHENOL RF
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: AMPHENOL RF
- Label: AMPHENOL RF
Attributes
| Key | Value |
|---|
| Alternate Part No. | 523-82-4426-11RFX |
| Angle | straight |
| Application | Commercial |
| ASIN | B00DED06Z4 |
| Base Product Number | 082-442 |
| Body Finish | nickel |
| Body Material | brass |
| Body material | brass |
| Body plating | nickel |
| Body Style | straight |
| Brand | AMPHENOL RF |
| Cable Group | RG-8, 8A, 9, 9A, 9B, 87. |
| Cable Type | RG-/U 213 ; RG-/U 225 ;. |
| Category | Connectors, Interconnec. |
| Center Contact Material | brass |
| Center Contact Plating | Gold |
| Connector | plug |
| Connector Style | N Type |
| Connector Type | Plug, Male Pin |
| Contact material | brass |
| Contact Material | brass |
| Contact Plating | Gold |
| Contact plating | gold-plated |
| Contact Termination | Crimp |
| Coupling Mechanism | Threaded |
| Description | CONN N PLUG STR 50 OHM . |
| Detailed Description | N Type Connector Plug, . |
| Dielectric Material | Tetrafluoroethylene ; S. |
| Digi-Key Part Number | ARFX1882-ND |
| Electrical mounting | crimped |
| Fastening Type | Threaded |
| Features | - |
| Frequency | 11GHz |
| Frequency - Max | 11 GHz |
| Gender | plug |
| Housing Color | Silver |
| Housing Finish | nickel |
| Housing Material | brass |
| Impedance | 50Ohm, 50 Ohms |
| Includes | 3 pcs - 1 Connector, 1 . |
| Ingress Protection | - |
| Inner Diameter | 0.437 in. |
| Insertion Loss | 0.15dB |
| Insulator material | PTFE |
| Item model number | 082-4426-11RFX |
| Kind of cable | Belden 7733A, |
| Kind of connector | male |
| Length | 1.48 in |
| Manufacturer | AMPHENOL RF, Amphenol |
| Manufacturer Part No. | 82-4426-11RFX |
| Manufacturer Product Nu. | 082-4426-11RFX |
| Manufacturer Standard L. | 14 Weeks |
| Mating Cycles | 500 |
| Mating Type | Threaded |
| Max. frequency | 11GHz |
| Maximum Frequency | 11 GHz |
| Mechanical durability | 500 cycles |
| Mechanical mounting | for cable |
| Mfr | AMPHENOL RF |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line),. |
| Number of Ports | 1 |
| Operating temperature | -65...165?C |
| Operating Temperature | -65?C ~ 165?C |
| Operating Temperature R. | - 65 C to + 165 C |
| Orientation | straight |
| Outer Diameter | 0.827 in. |
| Package | Bulk |
| Packaging | Bulk |
| Part # Aliases | 082-4426-11RFX |
| Polarity | Standard |
| Primary Type | N Type |
| Product | Connectors |
| Product Category | RF Connectors / Coaxial. |
| Product Status | Active |
| RF Series | N |
| Series | Type N Series, Type N, - |
| Shield Termination | Crimp |
| Spatial orientation | straight |
| Special Features | Captivated Contact |
| Termination | Crimp |
| Termination Style | Cable - Crimp |
| Type | Cable Plug |
| Type of connector | N |
| Voltage Rating | 1500 V |
| Wave impedance | 50? |
