ANALOG DEVICES LTC6803IG-3#PBF

B09CWY7ZTC

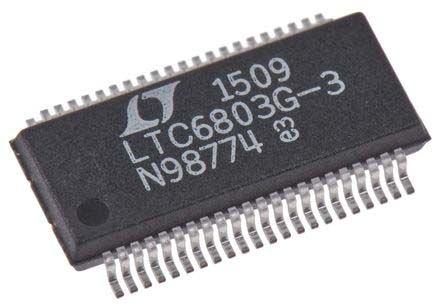

Analog Devices Inc. LTC6803IG-3#PBF IC Batt MON Multi 1-12C 44SSOP

Analog Devices Inc. LTC6803IG-3#PBF IC Batt MON Multi 1-12C 44SSOPzoom

Attributes

Key Value
Base Product NumberLTC6803
Battery ChemistryMulti-Chemistry
BrandAnalog Devices
CaseSSOP44
CategoryIntegrated Circuits (IC.
Dimensions13.1 x 5.6 x 1.85mm
Fault ProtectionOver/Under Voltage
FunctionBattery Monitor
Height1.85mm
Input voltage4...55V
Integrated circuit feat.supercapacitor charger
InterfaceSerial
Kind of integrated circ.battery charging contro.
Length13.1mm
ManufacturerAnalog Devices
Maximum Operating Tempe.+85 ?C
Maximum Output Current1.6mA
MfrAnalog Devices Inc.
Minimum Operating Tempe.-40 ?C
MountingSMD
Mounting TypeSurface Mount
Number of Cells1 ~ 12
Number of channels12
Operating Temperature-40?C ~ 85?C (TA)
Operating temperature-40...85?C
PackageTube
Package / Case44-FSOP (0.209", 5.30mm.
Package TypeSSOP
Pin Count44
Product StatusActive
Series-
Supplier Device Package44-SSOP
Type of integrated circ.PMIC
Typical Operating Suppl.10 ? 55 V
Width5.6mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH258275617.011482Linear Technology17.0 @ 1
thumbzoomRS Delivers920-014917.691637In StockAnalog Devices17.6916 @ 37
Digi-Key262000821.41In StockAnalog Devices Inc.21.4 @ 1
thumbzoomNewark50AK397023.881109ANALOG DEVICES23.88 @ 1
