ANALOG DEVICES AD569AD

B017T0PAR6

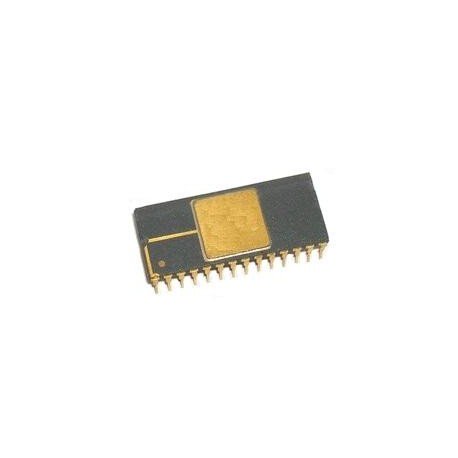

AD569AD, DAC 1-CH Segment 16-bit 28-Pin CDIP Tube

AD569AD, DAC 1-CH Segment 16-bit 28-Pin CDIP Tubezoom

Attributes

Key Value
Alternate Part No.584-AD569AD
ArchitectureSegmented DAC, Resistor.
Base Product NumberAD569
BrandAnalog Devices
CaseDIC28
CategoryIntegrated Circuits (IC.
Data InterfaceParallel
DescriptMonotonic 8-16 Bit DAC
Differential OutputNo
FSR Error (LSB/%).04%
INL/DNL (LSB)?0.02, ?0.5
Inp Arith. CodeA
Integral Non-linearity+/- 0.04 % FSR
Interface TypeParallel
Logic Level FamilyTTL
ManufacturerAnalog Devices Inc., An.
Manufacturer Part No.AD569AD
Maximum Operating Tempe.+ 85 C
Maximum Power Dissipati.1000 mW
MfrAnalog Devices Inc.
Minimum Operating Tempe.- 25 C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
No. of Pins28
Nom. Neg Supp12
Nom. Pos. Supp12
Number of Bits16
Number of Converters1
Number of D/A Converters1
Oper. Temp (?C) Max.85
Oper. Temp (?C) Min-25
Operating Temperature-25?C ~ 85?C
Output TypeVoltage - Buffered, Vol.
PackageTube
Package / Case28-CDIP (0.600", 15.24m.
Package/CaseCDIP-28 SB
PackagingTube
Part StatusActive
PD Max. (W)200m
Pinout Equivalence Numb.28-63
Product CategoryDigital to Analog Conve.
Reference TypeExternal
Resolution16 bit
Series-, AD569
Settling Time3 us, 6?s
Settling Time (S)6.0u
SKU93580
Supplier Device Package28-CDIP
Supply Voltage - Max13.2 V
Supply Voltage - Min10.8 V
Surface Mounted Yes/NoNo
Tech.CMOS Integrated Circuit
TypeIntegrated Circuit
Vih Min (V)2.0
Vil Max. (V)0.8
Volt or Cur. ModeVoltage
Voltage - Supply, Analog?10.8V ~ 13.2V
Voltage - Supply, Digit.-
Voltage ReferenceExternal

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsAD569AD53.091In StockAnalog Devices53.09 @ 1
HotendaH239264374.61In StockAnalog Devices, Inc.74.6 @ 1
thumbzoomswatee.comAD569AD113.22113Analog Devices Inc.113.22 @ 1
Little DiodeAD569AD118.87486651In StockAnalog Devices118.8748665 @ 1
thumbzoomRadwellAD569AD130.05In StockANALOG DEVICES130.0 @ 5
Digi-Key617615133.675In StockAnalog Devices Inc.133.67 @ 5
