- mpnAD7949SCPZ-EP-RL7
- brandname: Analog Devices Inc.
- manufacturername: Analog Devices Inc.

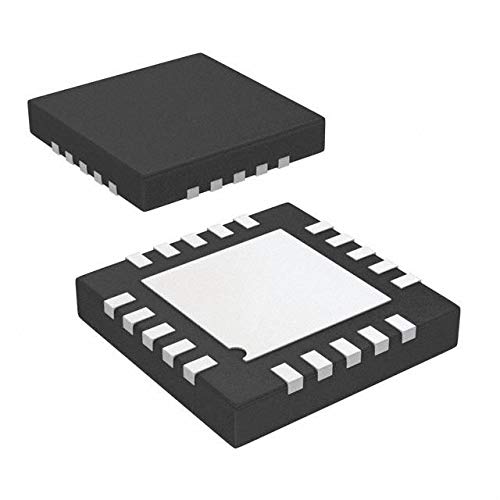

AD7949SCPZ-EP-RL7
- Brand: ANALOG DEVICES
- PartNumber: AD7949SCPZ-EP-RL7
- Model: AD7949SCPZ-EP-RL7
- Manufacturer: Analog Devices Inc
- Label: Analog Devices Inc
Attributes
| Key | Value |
|---|
| Architecture | SAR |
| Base Part Number | AD7949 |
| Base Product Number | AD7949 |
| Category | Integrated Circuits (IC. |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI, DSP |
| Description | IC ADC 14BIT SAR 20LFCSP |
| Detailed Description | 14 Bit Analog to Digita. |
| Digi-Key Part Number | AD7949SCPZ-EP-RL7TR-ND . |
| Features | Temperature Sensor |
| Input Type | Differential, Pseudo-Di. |
| Lead Free Status / RoHS. | RoHS Compliant |
| Manufacturer | Analog Devices Inc. |
| Manufacturer Part Number | AD7949SCPZ-EP-RL7 |
| Manufacturer Product Nu. | AD7949SCPZ-EP-RL7 |
| Manufacturer Standard L. | 15 Weeks, 33 Weeks |
| Mfr | Analog Devices Inc. |
| Mounting Type | Surface Mount |
| Number of A/D Converters | 1 |
| Number of Bits | 14 |
| Number of Inputs | 8 |
| Operating Temperature | -55, -55?C ~ 125?C |
| Package | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad, C. |
| Packaging | Reel |
| Product Status | Active |
| Ratio - S/H:ADC | 1:1 |
| Reference Type | External, Internal |
| Sampling Rate (Per Seco. | 250k |
| Series | PulSAR, PulSAR? |
| Standard Package | 1,500 |
| Supplier Device Package | 20-LFCSP (4x4), 20-LFCS. |
| Voltage - Supply, Analog | 2.3V ~ 5.5V |
| Voltage - Supply, Digit. | 2.3V ~ 5.5V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H2357932 | 10.47774 | 1 | In Stock | | Analog Devices, Inc. | | 10.47774 @ 1 |
| iodParts | AD7949SCPZ-EP-RL7 | 10.77 | 25 | 1500 | | Analog Devices | | 10.77 @ 25 |
 | Radwell | AD7949SCPZ-EP-RL7 | 18.0 | 1500 | In Stock | | ANALOG DEVICES | | 18.0 @ 1500 |
 | Newark | 62AK1436 | 20.88 | 1 | 1500 | | ANALOG DEVICES | | 20.88 @ 1 |
 | Digi-Key | 2700090 | 21.27 | 1 | 2945 | | Analog Devices Inc. | | 21.27 @ 1 |
| AmazonTP | B00AZVJUKA | 25.53 | 1 | In Stock | 2 | Analog Devices | | 25.53 @ 1 |
| AmazonUNK | B00AZVJUKA | 25.53 | 1 | In Stock | | Analog Devices | | 25.53 @ 1 |
| AmazonSC | B00AZVJUKA | 27.1 | 1 | In Stock | | ANALOG DEVICES | | 27.1 @ 1 |
