ANALOG DEVICES AD8421TRMZ-EP

mpnAD8421TRMZ-EP
brandname: Analog Devices Inc.
manufacturername: Analog Devices Inc.

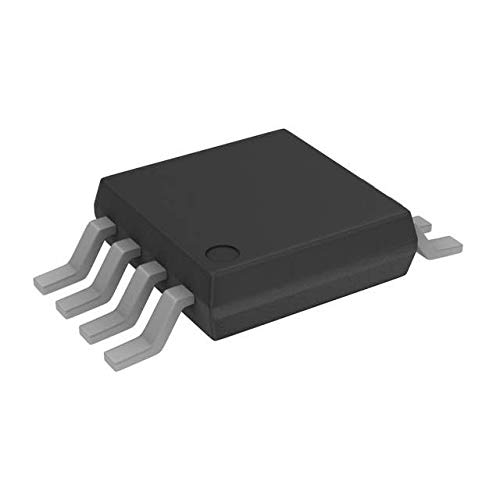

AD8421TRMZ-EP, INST Amp Single ?18V/36V 8-Pin MSOP Tube

Brand: ANALOG DEVICES
PartNumber: AD8421TRMZ-EP
Model: AD8421TRMZ-EP
PackageQuantity: 1
Binding: Electronics
Manufacturer: Analog Devices
Label: Analog Devices

Attributes

Key	Value
-3db Bandwidth	10 MHz
Alternate Part No.	584-AD8421TRMZ-EP
Amplifier Type	Instrumentation
Bandwidth	10 MHz
Base Product Number	AD8421
Brand	Analog Devices
Category	Integrated Circuits (IC.
CMRR - Common Mode Reje.	140 dB
Current - Input Bias	1 nA
Current - Output / Chan.	65 mA
Current - Supply	2mA
Dimensions	3.2 x 3.2 x 0.95mm
Dual Supply Voltage	2.5 V to 18 V
Gain V/V	1 V/V to 10000 V/V
Height	0.95mm
Ib - Input Bias Current	0.5 nA
Length	3.2mm
Manufacturer	Analog Devices Inc.
Manufacturer Part No.	AD8421TRMZ-EP
Maximum Input Offset Vo.	70?V
Maximum Operating Tempe.	+ 85 C, +125 ?C
Maximum Supply Current	2.3 mA
Mfr	Analog Devices Inc.
Minimum CMRR	134dB
Minimum Operating Tempe.	-55 ?C, - 40 C
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of Channels	1 Channel
Number of Circuits	1
Operating Supply Voltage	5 V to 36 V
Operating Temperature	-55?C ~ 125?C
Operating Temperature R.	- 40 C to + 85 C
Output Type	-
Package	Tube
Package / Case	8-TSSOP, 8-MSOP (0.118".
Package Type	MSOP
Package/Case	MSOP-8
Packaging	Tube
Pin Count	8
Power Supply Type	Dual, Single
Product	Operational Amplifiers
Product Category	Instrumentation Amplifi.
Product Status	Active
Series	-, AD8421
Single Supply Voltage	5 V to 36 V
Slew Rate	35V/?s
SR - Slew Rate	35 V/us
Stock	Stock
Supplier Device Package	8-MSOP
Supply Current per Chan.	2 mA
Supply Voltage - Max	36 V
Supply Voltage - Min	5 V
Typical Dual Supply Vol.	Typical Dual Supply Vol.
Typical Gain Bandwidth .	Typical Gain Bandwidth .
Typical Single Supply V.	5 36 V
Voltage - Input Offset	70 ?V
Voltage - Supply Span (.	36 V
Voltage - Supply Span (.	5 V
Vos - Input Offset Volt.	25 uV
Width	3.2mm

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
RS Delivers	183-1763	14.4396	50	50		Analog Devices	14.4396 @ 50
Hotenda	H2693526	15.01	1	644		Analog Devices, Inc.	15.01 @ 1
Newark	60AK7496	19.99	1	50		ANALOG DEVICES	19.99 @ 1
Digi-Key	4250206	20.19	1	In Stock		Analog Devices Inc.	20.19 @ 1
AmazonTP	B0180QFS0M	21.52	1	In Stock	2	Analog Devices	21.52 @ 1
swatee.com	AD8421TRMZ-EP	28.57	1	1		Analog Devices Inc.	28.57 @ 1
