mpn:
brand:
manufacturer:
MPN:
Description:

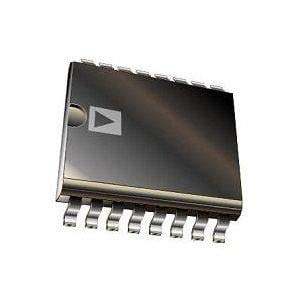

2 Circuit IC Switch 4:1 100Ohm 16-TSSOP
Weight:
Weight:
0.0440924524 LB
Preferred Price:
17.28
Price:
17.28
Min Simple Price:
8.63
Absolute Min Price:
12.88
Min Price:
12.88
qty:
21
simpleSku:
TAyNTA:::ADG409BRUZ-REEL7
sku:
TAyNTA::HS:ADG409BRUZ-REEL7@y0
condition:
11
seller:
Digi-Key
amzMan:
analog devices
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| -3db Bandwidth, Series, Switch Time (Ton, Toff) (Max) | - |
| Base Product Number | ADG409 |
| Category | Integrated Circuits (ICs) |
| Channel Capacitance (CS(off), CD(off)) | 11pF, 20pF |
| Channel-to-Channel Matching (?Ron) | 15Ohm (Max) |
| Charge Injection | 20pC |
| Crosstalk | -85dB @ 100kHz |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Description | IC SWITCH SP4TX2 100OHM 16TSSOP |
| Detailed Description | 2 Circuit IC Switch 4:1 100Ohm 16-TSSOP |
| Digi-Key Part Number | ADG409BRUZ-REEL7TR-ND - Tape & Reel (TR) |
| Manufacturer Product Number | ADG409BRUZ-REEL7 |
| Manufacturer Standard Lead Time | 13 Weeks |
| Manufacturer, Mfr | Analog Devices Inc. |
| Mounting Type | Surface Mount |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 100Ohm |
| Operating Temperature | -40?C ~ 85?C (TA) |
| Package | Tape & Reel (TR) |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Product Status | Active |
| Supplier Device Package | 16-TSSOP |
| Switch Circuit | SP4T |
| Voltage - Supply, Dual (V?) | ?15V |
| Voltage - Supply, Single (V+) | 12V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Digi-Key | 995064 | 8.63 | 29.342 | 1 | 2975 | Analog Devices Inc. | 8.63 @ Qty: 5+ | ||
 | Newark | 60AK4800 | 10.16 | 34.544 | 1 | 874 | ANALOG DEVICES | 10.16 @ Qty: 5+ | ||
| AmazonTP | B07R3FQ211 | 44.16 | 150.144 | 1 | 5 | 2 | Analog Devices | 44.16 @ Qty: 5+ |
