Description:

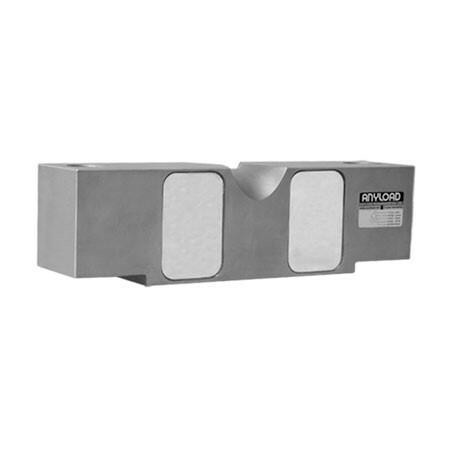

Buy the top selling Anyload 102BH-10Klb from Scales Plus and receive free product support from our trained technicians for life!
Attributes
| Key | Value |
|---|---|
| Approvals | CE, RoHS, and Ex |
| Cable Color Code | Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield |
| Cable Length | 10 m |
| Capacity | 10,000 lb |
| Compensated Temperature Range | 14?F to 122?F/-10?C to 50?C |
| Construction | Alloy steel |
| Full Scale Output | 3.0 mV/V ? 0.25% |
| Height | 1.70" |
| Input Resistance | 700 (? 10) ohms |
| IP Rating | IP67 |
| Length | 7.75" |
| Manufacturer | Anyload |
| Model | 102BH-10Klb |
| Output Resistance | 700 (? 5) ohms |
| Rated Excitation | 10 V (maximum of 15 V) |
| Safe Overload | 150% capacity |
| Seal Type | Environmentally sealed |
| Width | 1.69" |
