Apollo Valves 61LF10801PR

B01M14X05V

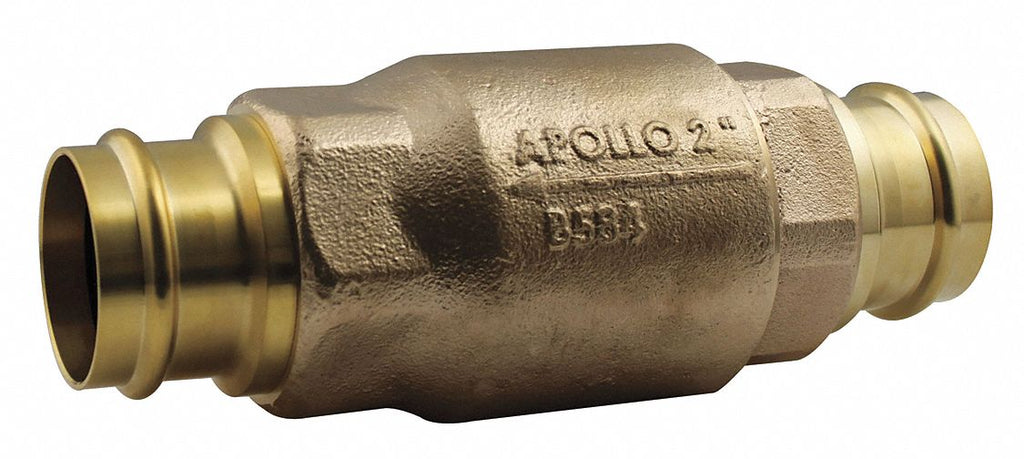

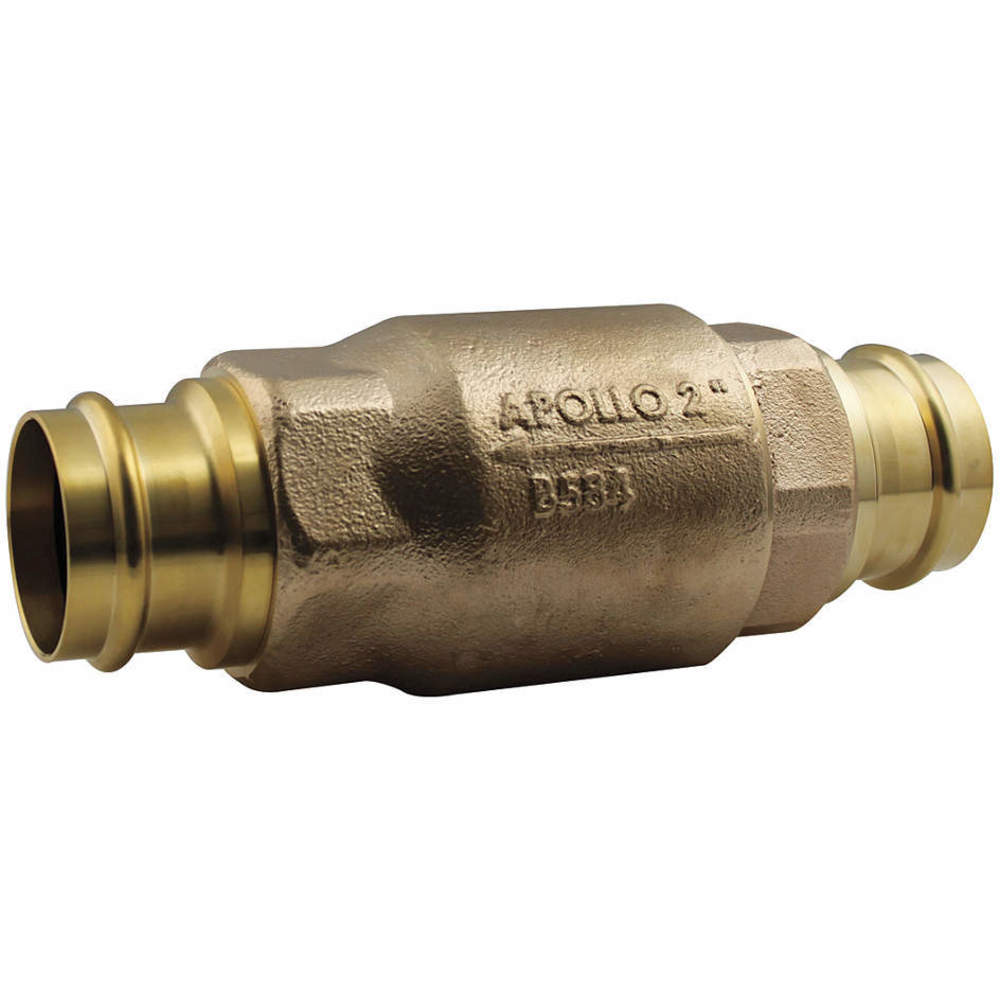

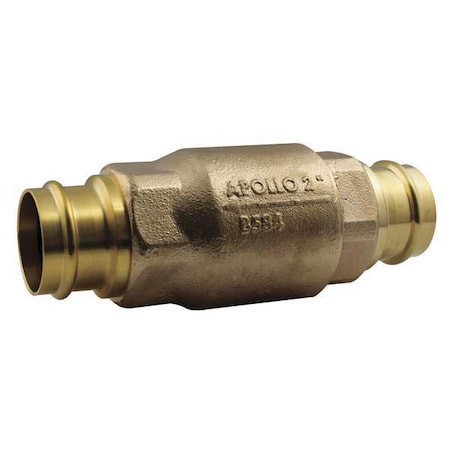

Apollo Valves - 61LF10801PR - Check Valve, 2 in, Single, Inline Ball Cone, Bronze, Press x Press

Apollo Valves - 61LF10801PR - Check Valve, 2 in, Single, Inline Ball Cone, Bronze, Press x Presszoom

Attributes

Key Value
ANSI SpecificationsANSI 372, ANSI 61
Application - ValvesGeneral Purpose
ASTM SpecificationsASTM B-584, ASTM B-88
Body MaterialLead Free Bronze, Bronze
Body Material - ValvesBronze
BrandApollo Valves
Collection61LF-PR Series
ColorBronze
ComplianceNSF61-G, NSF 377
Connection TypePress
Connection Type - Check.Press x Press
Description:VLV,BALL CONE CHK,2",61.
Domestic/ImportDomestic
End Connection 1Press
End Connection 2Press
End ConnectionsPress
End StylePress
Flow DesignSingle
Flow Rate81 gpm
Inlet to Outlet Length9.7 in
Installation TypeHorizontal, Vertical
International ShippingNo
Lead Law CompliantYes
Length9-7/10 in, 9.7"
Low Lead ComplianceYes
ManufacturerApollo Conbraco Industr.
MaterialBrass, Bronze, Plastic,.
Material of ConstructionLead Free Bronze
Material Type316, C89836, RPTFE
Max. Pressure300 psi
Max. Temp. - Valves180 Degrees F
Maximum Pressure300 psi
Maximum Temperature350
MediaLiquid
MFG Part #:61LF10801PR
Mounting Orientation - .Horizontal, Vertical
Mounting PositionVertical or Horizontal
Mpn61LF10801PR
Nominal Size2 in
NSF CertifiedYes
NSF SpecificationsNSF 372, NSF 61
Pipe or Tube Size2 in
Pipe or Tube Size - Che.2"
Pipe Size2"
Pressure Class400#
Pressure Rating250 psi
Prop 65WARNING: Cancer and Rep.
Recommended Valve Appli.Commercial, Potable Wat.
Seal MaterialNSF Grade EPDM
Seal Material - Check V.EPDM
Seat MaterialRPTFE
Series61LF-PR
Size2"
SKUZO-G4684967
Softgoods MaterialEPDM O-Ring
Spring Material316 Stainless Steel
Spring Material - Check.316 Stainless Steel
StandardsNSF61-G, NSF 372
SubCategoryPlumbing
Supplier:Apollo Conbraco Industr.
Temperature Range0 to 250 Deg F (-18 to .
Temperature Rating0 to 250 deg F
Trim MaterialBrass
TypeStandard
UL ListedNo
UPC670750663772
UPC:670750663772
Valve Body StyleInline
Valve Port OpeningFull Port
Valve Seat MaterialEPDM
Valve Size2 in
Valve TypeBall Check Valve
Weight7.3
Width9-11/16"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG4684967275.9911Apollo Valves8.25275.99 @ 1
thumbzoomsupply.com61LF10801PR322.131In StockApollo322.13 @ 1
thumbzoomsustainablesupply.comC1910646325.591In StockApollo Valves8.25325.59 @ 1
thumbzoomsimsupply.comZO-G4684967326.71In StockApollo Valves326.7 @ 1
kscdirect.comCON 61LF10801PR353.151In StockApollo Conbraco Industries353.15 @ 1
thumbzoomRaptor SuppliesAC6WNP406.9835641In StockAPOLLO406.983564 @ 1
AF Supply61LF10801PR414.431In StockApollo414.43 @ 1
ferguson.com4445631538.181In StockApollo Valves538.18 @ 1
