Appleton CMBP400MT

B007IBDSPS

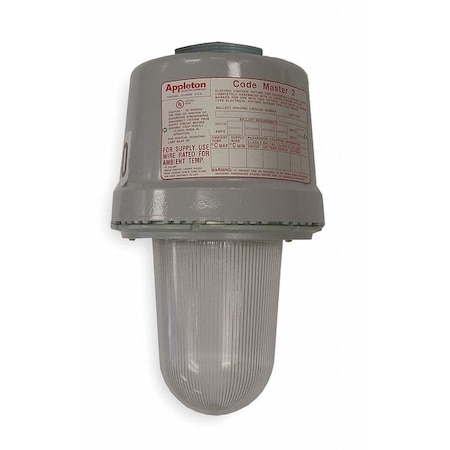

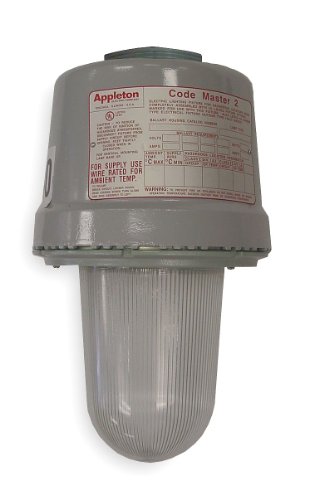

APPLETON CMBP400MT 400W PSMH MT Code 2

APPLETON CMBP400MT 400W PSMH MT Code 2zoom

Attributes

Key Value
Ambient Temp. Range0 Degrees to 104 Degre.
Ambient Temperature Ran.40 DEG C
Amperage Rating1.5 to 1.75 A
Amperage Rating:1.5/1.75 A
ApprovalsUL;CSA
Ballast Quantity:1
Ballast TypeSuper Constant Wattage .
Ballast Type:Super Constant Wattage .
CategoryHigh Intensity Discharg.
Country of OriginMX
Country of Origin (subj.Mexico
Description/Special Fea.For areas such as manuf.
Description:400W PSMH MT CODE 2
Dimensions12 in L x 12 in W x 20-.
Family SeriesAppleton Light Fixtures
Fixture Item NumberCMBP400MT
Fixture MaterialAluminum
Fixture TypeExplosion Proof Lightin.
Fixture Type - Decorati.Explosion Proof Pendant
Fixture Voltage120/208/240/277V AC
Fixture Wattage400 W, 400
Fixture Wattage:400 WTT
Flasher Strobe ColorNot Applicable
For Bulb Base TypeMogul
For Bulb TypeMetal Halide
For Max. Bulb Wattage400 W
Gross Weight0 lbs
GuardedNo
Height20-3/8"
Housing ColorGray
Housing FinishGray, Epoxy Powder Coat.
Housing Finish:Epoxy Powder Coat
Housing MaterialAluminum
Housing Material:Copperfree (4/10 Of 1 P.
ItemHazardous Location Ligh.
Item NumberCMBP400MT
Lamp IncludedNo
Lamp TypeMetal Halide, High Pres.
Lamp Type:400 WTT 34000 LM Mogul .
Lamp Wattage400 W
Lamp Wattage:400 WTT
Lamp Watts400
Length12"
Lens MaterialGlass
Lens Material:Heat And Impact Resista.
Lens TypeGlass
Light TechnologyHID
Lighting TechnologyMetal Halide
Lumens34000 Lumens
ManufacturerAppleton-Emerson Indust.
Manufacturer Part NumberCMBP400MT
MaterialAluminum
Material:Copperfree (4/10 Of 1 P.
Max. Ambient Temp.104 Degrees F
Max. Fixture Wattage400 W
MFG Part #:CMBP400MT
Min. Ambient Temp.0 Degrees F
MountingCeiling
Mounting Bracket Item N.5KF32, 5KF31
Mounting LocationCeiling, Pendant
Mounting StylePendant
Mounting TypeCeiling
Net Weight0 lbs
Nominal Voltage120 VAC;208 VAC;240 VAC.
Number of Lamps1
Number Of Lamps:1
Overall Height17 5/8 in
Power400 Watts
Safety RatingClass I, Division 1 and.
SeriesCM Series, CMB
Standard:NEC: Class I, Division .
StandardsClass 1, Div 1 and 2, G.
StyleGlobe
Sub Brand:Code Master 2
Suggested Lamp Item No.3JJ96
Supplier:Appleton-Emerson Indust.
Temperature Range:75 DEG C Supply Wire
Type:Factory Sealed HID Lumi.
UL/CSA/ETL ListedCSA Type 4X
UNSPSC39111524
UPC781381845502
UPC:78138184550
Voltage120 to 277VAC
Voltage Rating120/208/240/277 VAC
Voltage Rating:120/208/240/277 V
Volts AC120-277
Wattage400
Width12"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.comCMBP400MT1679.8612380APPLETON1679.86 @ 2
thumbzoomZoroG22070641863.381215Appleton Electric1863.38 @ 2
steinerelectric.com852222757.9812Appleton?2757.98 @ 2
Dale-ElectricCMBP400MT3449.3112Appleton Electric Co3449.31 @ 2
thumbzoomGalcoCMBP400MT-APTN3519.712Appleton3519.7 @ 2
thumbzoomPlatt.com01481433874.612Appleton3874.6 @ 2
kscdirect.comAPP CMBP400MT3880.0812Appleton-Emerson Industrial Automation3880.08 @ 2
kirbyrisk.com23562105307.7212Appleton5307.72 @ 2
