Appleton DBR1034EH70

mpnDBR1034EH70
brandname: Appleton Electric
manufacturername: Appleton Electric

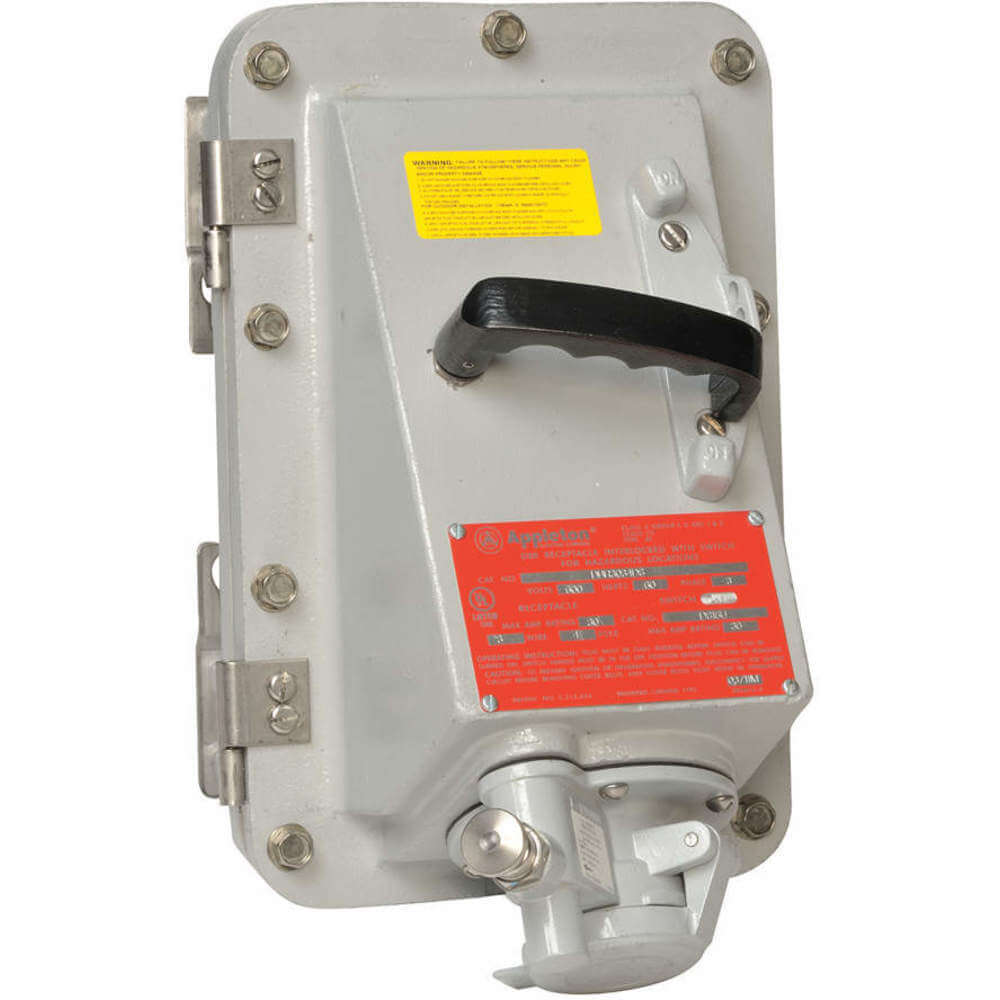

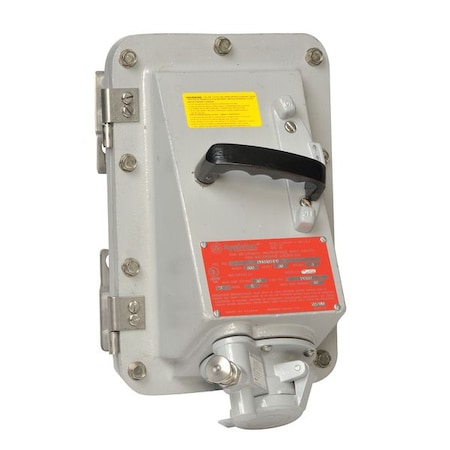

APPLETON DBR1034EH70 DBR 100A 3W 4P WEST EHB 70A

Brand: Appleton
PartNumber: DBR1034EH70
Model: CJPPB1775GMTDOW
PackageQuantity: 1
Binding: Misc.
Manufacturer: Appleton
Label: Appleton

Attributes

Key	Value
Amperage Rating	100 A
Amps	100 A
Approvals	UL
Aux/Pilot Contacts	None
Built-In Strain Relief	Yes
Case Material	Metallic
Category	Electrical Receptacles
Circuit Breaker	Yes
Circuit Breaker Amp Rat.	70 A
Circuit Breaker Type	EHD 480V AC
Comments	Explosionproof, Dust-Ig.
Compatible Plug Manufac.	Not Applicable
Compatible with Series	Powertite
Connection Description	Non-Fusible
Connection Type	Receptacle
Contact Material	Brass
Country of Origin	MX
Country of Origin (subj.	Mexico
Current Rating	100 A
Description:	DBR 100A 3W 4P WEST EHB.
Dimensions	16.57 in H x 5.57 in W .
Disconnect Switch	No
Enclosure Lock Type	Padlockable
Family Series	Appleton Plugs & Recept.
Finish	Epoxy Powder Coated
For Environment	Hazardous Location
For Maximum Cable Diame.	Not Applicable
For Minimum Cable Diame.	Not Applicable
Fuse Protection	Not Applicable
Fuse Type	Not Applicable
Gross Weight	0 lbs
Grounding	Grounded
Handle Type	Knob
Hazardous Location Spec.	Class I, Div 1 and 2, G.
Horsepower	20 hp
Horsepower Rating	30 hp
Housing Material	Copper-Free Aluminum
Housing Material Finish	Epoxy Powder Coated
Housing Material Type	Metallic
HP	30 hp
Hub Diameter	1.5 in
Hub Type	Feed Through
Includes	Screw Cap
Includes Mounting Hardw.	Yes
Insulation Material	Fiberglass-Reinforced P.
Item	Receptacle
Item Number	DBR1034EH70
Locking Handle	Yes
Lockout-Tagout	No
Manufacturer	Appleton-Emerson Indust.
Manufacturer Part Number	DBR1034EH70
Material	Copper-Free Aluminum, C.
Maximum Wire Size	Not Applicable
MFG Part #:	DBR1034EH70
Mounting Box	Copperfree Aluminum
NEMA Enclosure Rating	3, 3R, 4, 4X, 9FG
NEMA Rating	NEMA 3/3R/4/4X/9FG, 3, .
Net Weight	0 lbs
Number of Gangs	1
Number of Poles	4
Number of Poles & Wires	4 Pole / 3 Wire
Number of Wires	3
Phase	Three
Product Series	DBR
Product Type	Receptacle
Resistance Properties	Waterproof
Series	DBR
Standards	E10784, UL 1010 (UL 120.
Supplier:	Appleton-Emerson Indust.
Type	Dust-Ignitionproof
UNSPSC	39121406
UPC	781381474832
UPC:	78138147483
Voltage	600V AC, 600 V
Voltage Rating	480V AC, 600 VAC
Wire Connection Type	Quick-Disconnect Termin.

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
gordonelectricsupply.com	DBR1034EH70	4025.96	1	In Stock	380	APPLETON		4025.96 @ 1
Zoro	G3046815	4282.21	1	In Stock	62	Appleton Electric	42.0	4282.21 @ 1
Dale-Electric	DBR1034EH70	5128.13	1	In Stock		Appleton Electric Co		5128.13 @ 1
Galco	DBR1034EH70-APTN	5389.77	1	In Stock		Appleton		5389.77 @ 1
kscdirect.com	APP DBR1034EH70	5658.69	1	In Stock		Appleton-Emerson Industrial Automation		5658.69 @ 1
Platt.com	0374972	7359.43	1	In Stock		Appleton		7359.43 @ 1
sustainablesupply.com	C1159437	8031.29	1	In Stock		Appleton Electric	42.0	8031.29 @ 1
Raptor Supplies	AA4DPM	12019.378644	1	In Stock		APPLETON ELECTRIC		12019.378644 @ 1
