Appleton EBR1023HFB70

mpnEBR1023HFB70
brandname: APPLETON ELECTRIC
manufacturername: APPLETON ELECTRIC

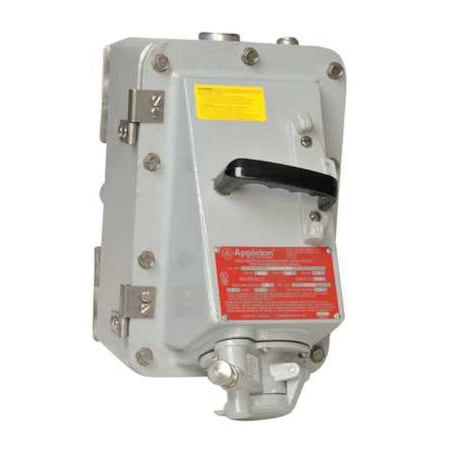

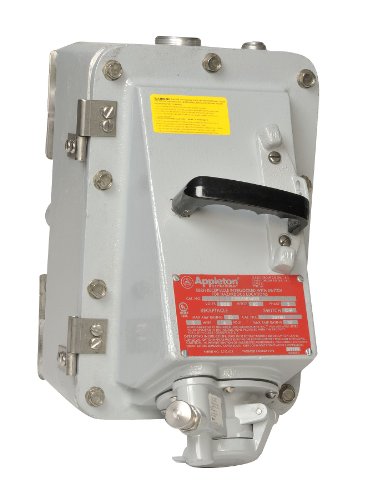

APPLETON EBR1023HFB70 EBR 100A 2W 3P WEST HFB 70A

Brand: Appleton
PartNumber: EBR1023HFB70
Model: CJPPB1775GMTDOW
PackageQuantity: 1
Binding: Misc.
Manufacturer: Appleton
Label: Appleton

Attributes

Key	Value
Amperage Rating	100 A
Amps	100 A
Approvals	UL
Aux/Pilot Contacts	None
Case Material	Metallic
Category	Electrical Receptacles
Circuit Breaker	Yes
Circuit Breaker Amp Rat.	70 A
Circuit Breaker Type	FD 600V AC
Comments	Receptacle with 600 VAC.
Compatible Plug Manufac.	Not Applicable
Compatible with Series	Powertite
Connection Description	Circuit Breaker
Connection Type	Receptacle
Contact Material	Brass
Country of Origin	MX
Country of Origin (subj.	Mexico
Current Rating	100 A, 100 Amps
Description:	EBR 100A 2W 3P WEST HFB.
Dimensions	17.3 in H x 9.06 in W x.
Disconnect Switch	No
Enclosure Lock Type	Padlockable
Family Series	Appleton Plugs & Recept.
Finish	Epoxy Powder Coated
For Environment	Hazardous Location
For Maximum Cable Diame.	Not Applicable
For Minimum Cable Diame.	Not Applicable
Frequency Rating	60 Hz
Fuse Protection	Not Applicable
Fuse Type	Not Applicable
Gross Weight	0 lbs
Grounding	Grounded
Handle Type	Knob
Hazardous Location Spec.	Class I, Div 1 and 2, G.
Housing Material	Copper-Free Aluminum
Housing Material Finish	Epoxy Powder Coated
Housing Material Type	Metallic
Hub Diameter	1.5 in
Hub Size	3/4 in, 1 1/2 in
Hub Type	Feed Through
Hz	60
Includes	Screw Cap
Includes Mounting Hardw.	Yes
Insulation Material	Fiberglass-Reinforced P.
Item	Receptacle
Item Number	EBR1023HFB70
Locking Handle	Yes
Manufacturer	Appleton-Emerson Indust.
Manufacturer Part Number	EBR1023HFB70
Material	Copper-Free Aluminum, C.
Maximum Wire Size	Not Applicable
MFG Part #:	EBR1023HFB70
Mounting Box	Copperfree Aluminum
NEMA Enclosure Rating	3, 3R, 4, 4X, 7CD, 9FG
NEMA Rating	3, 3R, 4, 4X, 7CD, 9FG,.
Net Weight	0 lbs
Number of Gangs	1
Number of Poles	3
Number of Poles & Wires	3 Pole / 2 Wire
Number of Wires	2
Product Series	EBR
Product Type	Receptacle
Resistance Properties	Waterproof
Series	EBR
Standards	E10784, E313360(EBR), E.
Supplier:	Appleton-Emerson Indust.
Terminal Type	Pressure Wire
Type	Dust-Ignitionproof
UNSPSC	39121406
UPC	781381187848
UPC:	78138118784
Voltage	600V AC, 600
Voltage Rating	600V AC, 600 VAC
Wire Connection Type	Quick-Disconnect Termin.

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
gordonelectricsupply.com	EBR1023HFB70	5545.38	1	In Stock	380	APPLETON		5545.38 @ 1
Zoro	G8002601	5899.0	1	In Stock	60	Appleton Electric	42.0	5899.0 @ 1
Dale-Electric	EBR1023HFB70	7063.52	1	In Stock		Appleton Electric Co		7063.52 @ 1
Galco	EBR1023HFB70-APTN	7207.67	1	In Stock		Appleton		7207.67 @ 1
kscdirect.com	APP EBR1023HFB70	7794.32	1	In Stock		Appleton-Emerson Industrial Automation		7794.32 @ 1
cbtcompany.com	EBR1023HFB70	9796.84	1	In Stock		Appleton		9796.84 @ 1
Platt.com	0375092	10136.91	1	In Stock		Appleton		10136.91 @ 1
Raptor Supplies	AA3XUQ	16555.5850005	1	In Stock		APPLETON ELECTRIC		16555.5850005 @ 1
