ASHCROFT 451379SSL04LVAC/30#

B007ID7DTI

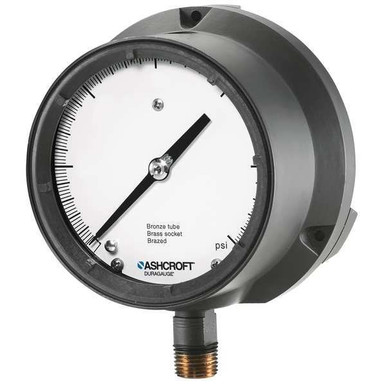

Compound Gauge, 30 Hg to 30 psi, 4-1/2In

Compound Gauge, 30 Hg to 30 psi, 4-1/2Inzoom

Attributes

Key Value
Accuracy+/-0.5%
Accuracy GradeASME B40.100 Grade 2A
Accuracy ScaleFull Scale
Ambient Operating Tempe.20 Degrees to 150 Degr.
ApplicationChemical Industries, Re.
Basic Gauge Case Materi.Plastic
Bezel MaterialPolypropylene
Blowout Safety BackYes
Bolt Circle Diameter5.375 in
BrandAshcroft
Case ColorBlack
Case ColourBlack
Case ConstructionSolid Front with Pressu.
Case Depth3.375 in
Case Diameter5.812 in
Case FinishEpoxy Coated
Cleaned for Oxygen Serv.No
ColorBlack
Compatible Process MediaChemical and Petrochemi.
Connection LocationLower
Connection Size1/2 in NPT
Current Stock9
Dial ColourWhite
Dial Face MaterialAluminum
Dial Size (In.)4-1/2
Diameter5-13/16"
Dry Dampening FeatureNone
Field FillableYes
For Use WithMedia Compatible with B.
Freeze Resistant Moveme.No
Gauge ApplicationTest
Gauge Case LiquidGlycerin
Gauge Case MaterialAluminum
Gauge Connection Size1/2 in
Gauge Connection TypeMNPT
Gauge Nominal Dial Size4 1/2 in
Gauge Primary Range Uni.in Hg/psi
Gauge Primary Range Val.-30 to 0 to 30
Hazardous Location Rati.Not Rated
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugNo
International ShippingNo
IP/NEMA RatingIP66, NEMA 4X
ItemProcess Compound Gauge
Lead TimeExpected to ship in 1-2.
Lens MaterialGlass
Liquid-Filled CaseYes
Manufacturer Warranty L.10 yr
MaterialPhenolic/Thermoplastic
Mounting TypeFlush-Mount, Stem-Mount.
Movement Material400 Stainless Steel
Movement TypeRotary
Mpn451379SSL04LVAC/30#
Nominal Dial Size4 1/2 in
Non-SparkingNo
Panel Mount Characteris.3 0.218 Dia Holes on 5 .
Panel-MountableNo
Pointer CharacteristicsMicrometer Adjustable
Pointer ColourBlack
Pointer MaterialAluminum
Pressure Gauge TypeProcess Pressure Gauge
Pressure Range TypeCompound
Primary Pressure Range30 to 0 to 30
Primary Pressure Scale .Black
Primary Scale Minor Gra.3
Primary Scale Unitsin Hg/psi
Process Connection Gend.Male
Process Connection Loca.Bottom
Process Connection Size1/2 in
Process Connection TypeNPT
Process Temperature Ran.20 Degrees to 150 Degr.
Range30 in Hg Vac to 30 psi
Removable BezelNo
Scale TypeSingle
Sensor Material316L Stainless Steel
Sensor TypeBourdon Tube
Series1379
SKUZO-G3629787
Socket Material316L Stainless Steel
StandardsASME, CRN
SubCategoryTest Instruments
UPC723259023193
Vibration ResistanceLiquid-Filled

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caWWG6WZV5126.377340721In StockASHCROFT4.0126.37734072 @ 1
thumbzoomZoroG3629787175.99126Ashcroft4.0175.99 @ 1
AmazonTPB007ID7DTI187.871In Stock3ASHCROFT187.87 @ 1
thumbzoomsustainablesupply.comC1758805198.221In StockAshcroft4.0198.22 @ 1
thumbzoomsimsupply.comZO-G3629787219.0219Ashcroft219.02 @ 1
