- mpnA4SBF0242D03000#
- brandname: Ashcroft
- manufacturername: Ashcroft

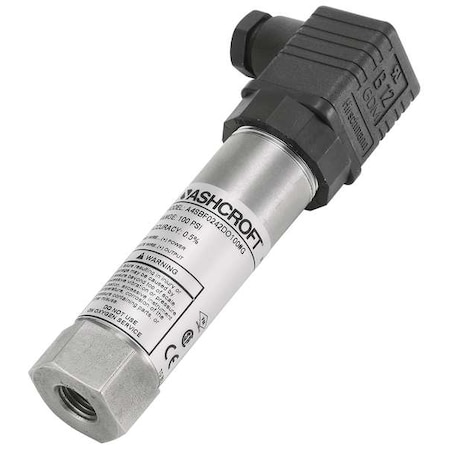

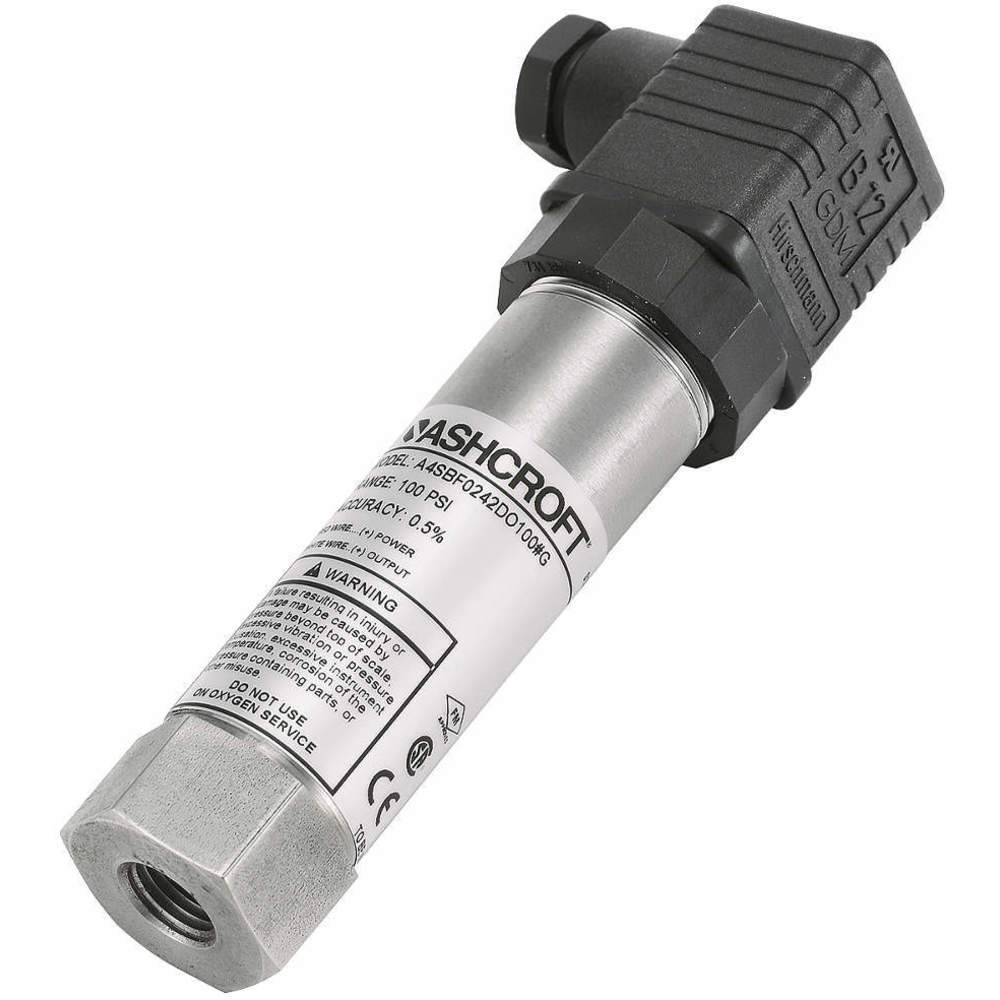

Intrinsically Safe Transducer, 0to3000psi
- Brand: ASHCROFT
- PartNumber: A4SBF0242D03000#
- PackageQuantity: 1
- Manufacturer: Ashcroft
- Label: Ashcroft
Attributes
| Key | Value |
|---|
| (hidden) product type b. | ASHCROFT A4SBF0242D0300. |
| Accuracy | +/-0.3% |
| Accuracy - Transmitter | +/-0.25% |
| Burst Pressure | 1.5x Range |
| Calibration Certificate | - |
| Compatible With | Any Process Compatible . |
| Country of Origin (subj. | United States |
| Electrical Connection | DIN 43650 Form A Connec. |
| Electrical Connections | DIN 43650-A |
| Electrical Connections . | 4 Pin Hirschmann Style . |
| Enclosure Rating | IP65 ; NEMA 4X |
| Explosion/Fire Proof | No |
| Features | - |
| Fitting Material | Stainless Steel |
| For Use With | - |
| Housing | 304 Stainless Steel |
| Housing Material | Stainless Steel |
| Includes | Instructions |
| Intrinsically Safe | Yes |
| IP Rating | IP65 |
| Item | Pressure Transmitter |
| Loop Resistance | Dependent on Loop Suppl. |
| Manufacturers Warranty . | 1 yr |
| Max. Pressure (PSI) | 6,000 psi |
| Maximum Operating Tempe. | 257 Degrees F |
| Maximum Pressure | 3,000 psi |
| Minimum Operating Tempe. | -40 Degrees F |
| Minimum Pressure | 0 psi |
| NEMA Rating | NEMA 4X |
| Number of Wires | 2 |
| Operating Temp. | -40 to 257 F |
| Operating Temp. - Trans. | -40 Degrees to 257 Deg. |
| Output | 4 to 20 mA at 12 to 30V. |
| Output - Transmitter | 4 to 20mA DC |
| Overall Height | 4.45 in |
| Overall Width | 1.06 in |
| Power Required | 12 to 30VDC |
| Power Required - Transm. | 12 to 30V DC |
| Pressure Range | 0 psi to 3,000 psi |
| Pressure Units | psi |
| Process Connection | 1/4 in NPT Female |
| Process Connection Gend. | Female |
| Process Connection Size | 1/4 in |
| Process Connection Size. | 1/4 in |
| Process Connection Type | NPT |
| Process Connection Type. | FNPT |
| Product Type | Intrinsically Safe-Rate. |
| Range | 0 to 3000 psi |
| Range Units - Transmitt. | psi |
| Range Values - Transmit. | 0 to 3000 |
| Response Time | 2 msec |
| Safety Rating | Class I, II and III, Di. |
| Safety Rating - Transmi. | Class I, II and III, Di. |
| Series | A4 |
| Standards | CE, CSA, FM, RoHS |
| Storage Temperature Ran. | -40 Degrees F to 257 De. |
| Thermal Error | +/-2% (-4 Degrees to 1. |
| Transmitter Type | Intrinsically Safe Pres. |
| Type of Pressure | Positive |
| Wetted Materials | 316L Stainless Steel |
| Wetted Materials - Tran. | 316L Stainless Steel |
| Wiring Entry | With Mating Connection |
| Wiring Entry - Transmit. | 1/2 in FNPT |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0119971 | 364.0 | 1 | In Stock | 26 | Ashcroft | 0.56 | 364.0 @ 1 |
 | Raptor Supplies | AE3GGF | 834.43698 | 1 | In Stock | | ASHCROFT | | 834.43698 @ 1 |
