Sargent 28-7G04 LP 26

B01863AYQM

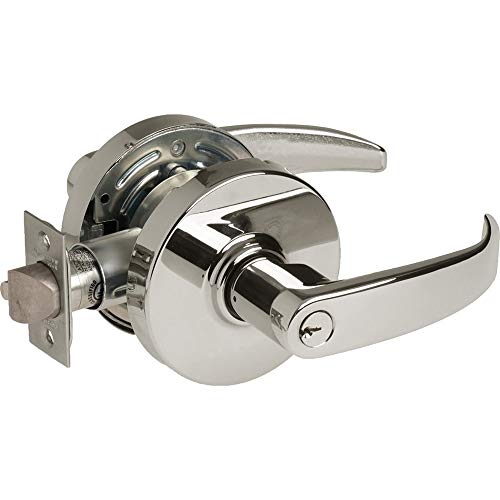

SARGENT 28-7G04-LP-26 :7 SERIES CYLINDRICAL LOCK IN BRIGHT CHROME

SARGENT 28-7G04-LP-26 :7 SERIES CYLINDRICAL LOCK IN BRIGHT CHROMEzoom

Attributes

Key Value
ADA ApprovedFalse
ADA CompliantYes
ANSI FunctionF86
ApplicationStandard Duty Commercia.
BAA QualifiedYes
Backset2-3/4 Inch
Bolt Protection1/2"
Bore Size2.1250
Case Height9"
Case Length20.75"
Case Volume2801.25
Case Width15"
Color Code625/US26
Cylinder MaterialBrass
Cylinder TypeConventional Cylinder
Cylinder Type UsedConventional
DesignP Lever and L Rose
Door Cross Bore2.125 Inch
Door Thickness1-3/4 inch
Dust BoxNone
FeaturesSolid Feel and Precise .
FinishBright Polished Chrome
Finish DescriptionBright Polished Chrome
Finish FamilyPolished Chrome
Fire RatedNo
Front Size2-1/4" x 1-1/8"
FunctionG04-Storeroom/Closet
Function DescriptionOutside knob/lever alwa.
Function FamilyStoreroom
GradeANSI/BHMA Grade 2
HandNot Handed
Handle TypeLever
Key(s)Cut
Keyblank GroupingSRGT-LA-6-1
KeyingKeyed Different
Keying ChargesCCAM
KeywaySargent LA
Knob/Lever Size5-1/2 Inch
Latch Backset Dim2-3/4"
Latch Bolt MaterialBrass
Latch CornerSquare
Latch Number07-2430
Latch Throw1/2 Inch
Latch TypeDeadlocking/Guarded
Lever Length5.5000
Lever Length-Inches5.50 Inch
Lever StyleP-Lever
Lever Style FamilyCurved Return Lever
Lever/Knob DesignP - Lever
Lock Face Size2-1/4" x 1-1/8"
Manufacturer ParentAssa Abloy
OriginUSA
Package Height4.25"
Package Length8.25"
Package Qty1
Package Volume249.8203125
Package Width7.125"
Product Projection2-1/2 Inch
Product TypeCylindrical Lock
Projection2.5000
Rose Diameter3-3/8 Inch
Rose/Escutcheon DesignL - Rose
Rose/Escutcheon TrimL-Rose
ScrewsCombination
Special MarksConventional Cylinder
StandardsANSI/BHMA A156.2 (2017).
StrikeANSI, 1-1/4 Inch x 4-7/.
Strike Height4-7/8"
Strike Lip1-1/4 Inch
Strike Number808 ANSI Strike
Strike Size4-7/8" x 1-1/4"
Strike TypeANSI Curved Lip
Strike Width1-1/4"
Sub-SeriesCL_Cylindrical_Locks_sa.
Thickness1-3/8" - 1-3/4"
Trim MaterialSolid Cast (Lever); Hea.
Warranty5 year limited
