ATCO 13102504

B076CC2FH8

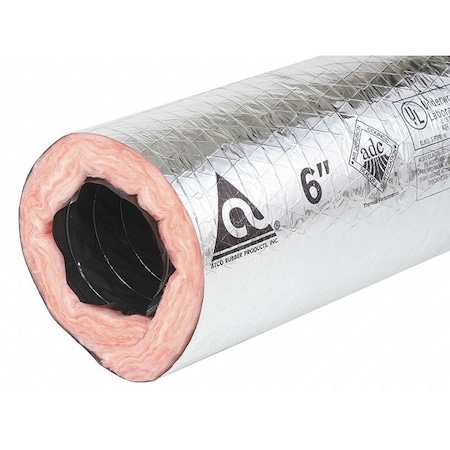

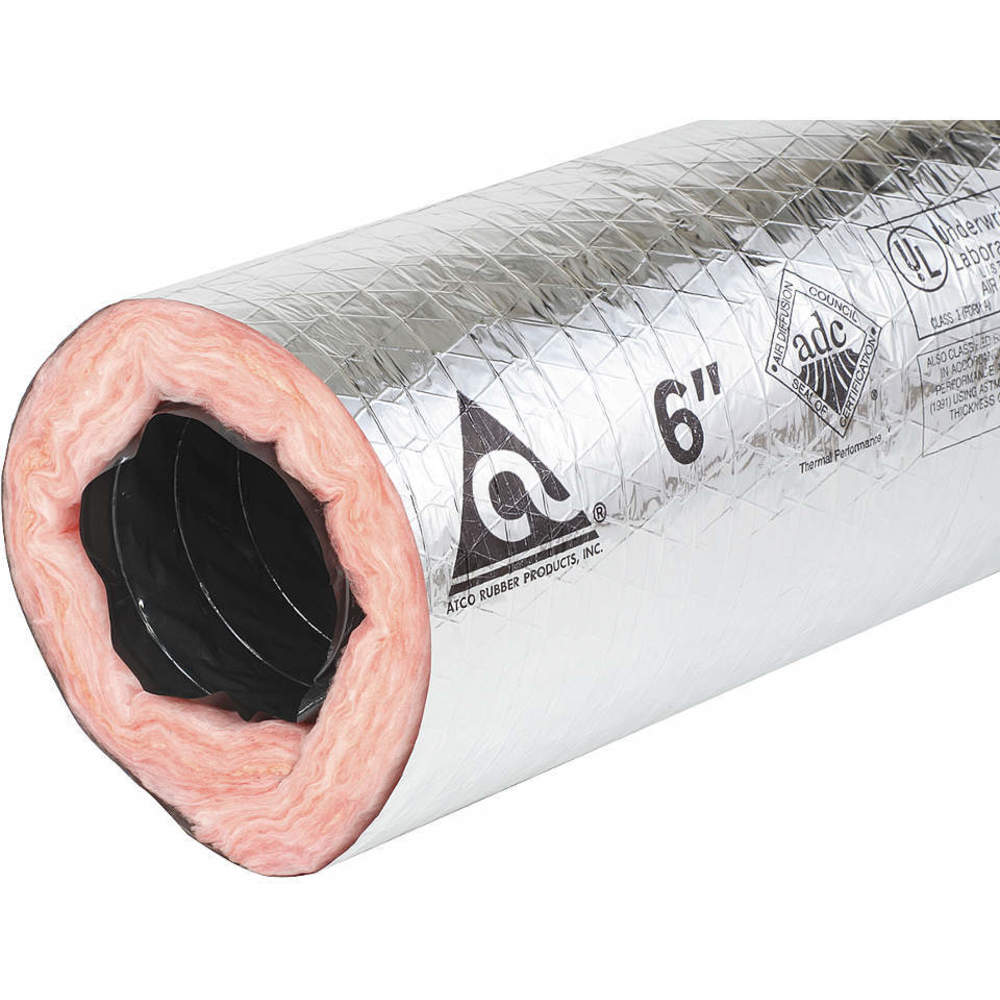

Insulated Flexible Duct, 5000 fpm, 6"WC

Insulated Flexible Duct, 5000 fpm, 6"WCzoom

Attributes

Key Value
BrandATCO
CertificationsGreenguard
ColorSilver
ComplianceUL 181, NFPA 90A & 90B,.
CompositionMetallized Polyester
Compressed Length38 in
Compressed Size38 in
Core MaterialDouble ply polyester co.
Cubic Measurement1.5
Dimensional Weight19
EAN0671094169678
FeaturesDouble Ply Vapor Barrie.
Fire RatingFlame Spread: 25 Max; S.
Flex Length25'
Flex TypeInsulated
Flexible Duct Inside Di.4 in
Flexible Duct ItemInsulated Flexible Duct
Flexible Duct Length25 ft
Flexible Duct Wall Thic.2 1/2 in
For Nominal Duct Diamet.4 in
For Use WithLow Pressure Air Moving.
Height9
Inside Diameter4", 4 in
InsulatedYes
Insulation ValueR 8.0
ItemFlexible Duct
Jacket ColorSilver
Jacket MaterialFiberglass Scrim Reinfo.
Length32
Low Temp. Deg.-20F
MaterialPolyester
Max. Air Flow5,000 fpm
Max. Pressure6 in WC
Max. Temp.140F
Maximum Air Flow5000 FPM
Maximum Continuous Leng.100 ft
Maximum Pressure6" W.G. Positive, 4"to .
Maximum Temperature250?F (121.11?C)
Operating Temperature-20?F to 140?F (-28.8?C.
Overall Length25 ft
Package Height9
Package Length32
Package TypeBox
Package Weight13.64
Package Width9
Pressure Rating6" w.g. pos., 4"-12" di.
Prop 65Yes
R-ValueR8
Size4" x 25'
StandardsUL181, NFPA 90A and 90B.
UL ListedYes
UOMCT
UPC671094169678
UPC Number31
Vapor Transmission0.05 %, 0.05 Perms
Weight13.64
Width9

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonSCB076CC2FH854.131In StockATCO54.13 @ 1
Grainger4PDN561.75190ATCO61.75 @ 1
thumbzoomZoroG289809573.991In StockAtco10.7173.99 @ 1
bakerdist.comATC31R80480.641In StockATCO80.64 @ 1
thumbzoomRaptor SuppliesAD9CBM109.71259651In StockATCO109.7125965 @ 1
