- mpnTSD-ML22VCA
- brandname: Atlas
- manufacturername: Atlas

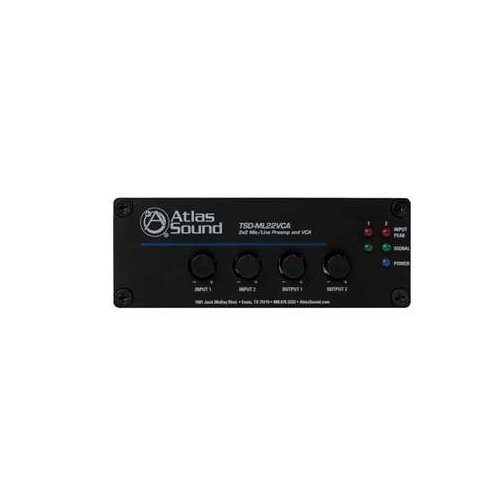

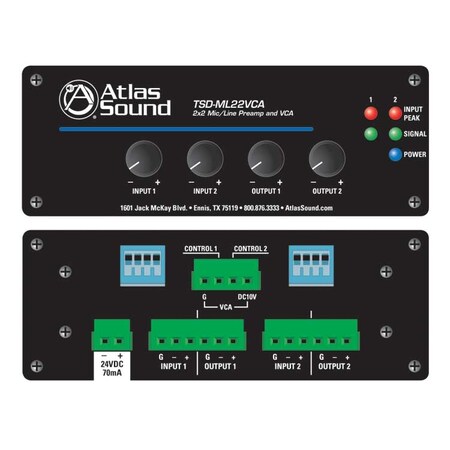

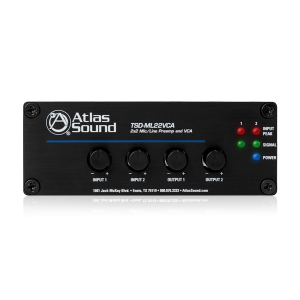

Atlas Sound 2 x 2 Mic/Line Preamp and VCA
- Brand: Atlas Sound
- PartNumber: TSD-ML22VCA
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Atlas Sound
- Label: Atlas Sound
Attributes
| Key | Value |
|---|
| 24vdc Power Requirements | 70mA |
| Brackets | Qty 2, Included |
| Brand Name | Atlas Sound |
| Cable Retainer | Qty 2, Included |
| Chassis Color | Black |
| Chassis Material | Aluminum |
| Color | Black |
| Connection | Removable 3 Position Ca. |
| Country of Origin (subj. | Unknown |
| Depth | 2.5", 2.5" (6.35 cm), 2. |
| Description | 2 x 2 Mic/Line Preamp w. |
| Dimensions | 1.5" (39mm) x 4" (101mm. |
| Dip Switch Function | Qty 2, Phantom Power 24. |
| Environmental Certifica. | RoHS, T |
| Environmentally Friendly | Yes |
| External Power Supply | cUL, CE, RoHS, TUV |
| Frequency Response | 20Hz - 20kHz |
| Height | 1.5", 1.5, 1.5" (3.81 c. |
| Impedance | 1.2K Balanced, 600 Unba. |
| Input Impedance | 1.2K? Balanced, 600? Un. |
| Input Level Control | Qty 2, Removable Knobs . |
| Input Signal | Green, 25mV On Threshol. |
| Line Input Level | 1V (0dBV) Balanced = 2V. |
| Line Output Level | 1V (0dBV) In = 2V (+6dB. |
| Low Cut Filter | 125Hz/12dB Defeatable |
| Manufacturer | Atlas Sound LP. |
| Manufacturer Part Number | TSD-ML22VCA |
| Manufacturer Website Ad. | http://www.atlassound.c. |
| Maximum Frequency Respo. | 20 kHz |
| Mic Input Level | 46dB Gain 10mV (-40dB) . |
| Mic Output Level | 10mV (-40dBV) In = 80mV. |
| Microphone Input Level | 46dB Gain 10mV (-40dBV). |
| Minimum Frequency Respo. | 20 Hz |
| Operating Power Consump. | 1.68 W |
| Output Impedance | 300? Balanced, 150? Unb. |
| Output Level Control | Qty 2, Removable Knobs . |
| Output Peak | Red, -3dB Before Clip, . |
| Phantom | 24VDC Defeatable |
| Phantom Power | 24VDC Defeatable |
| Power | Blue |
| Power Consumption | 70mA, 1.68W |
| Product Model | TSD-ML22VCA |
| Product Name | TSD-ML22VCA 2 x 2 Mic/L. |
| Product Type | Preamplifier |
| Signal To Noise Ratio L. | 85dBV |
| Signal To Noise Ratio L. | 55dBV |
| Signal to Noise: Line t. | 55dBV |
| THD | .06% & 1kHz |
| Total Harmonic Distorti. | 0.1% |
| TSD 24VDC | Power Supplies |
| TSD-RMK | 1 RU Rack Panel, Option. |
| Type | Qty 2, Balanced Mic or . |
| VCA Control Port | Channel 1 and 2, +10VDC. |
| Velcro | Industrial-Grade, Inclu. |
| Voltage | 24VDC |
| Voltage Compatibility | 24V |
| Warranty | 3 years |
| Weight | 6oz, .165kg, 6oz., .165. |
| Weight (Approximate) | 6 oz |
| Width | 4" (10.16 cm), 4", 4 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | PCNation | 5NN745 | 184.06 | 1 | In Stock | | ATLASIED | 1.0 | 184.06 @ 1 |
 | AI Consolidated | TSD-ML22VCA-ATLAS-SOUND | 203.03 | 1 | In Stock | | Atlas Sound | 24.15 | 203.03 @ 1 |
| spaceboundsolutions.com | SBS-720694 | 207.52 | 1 | In Stock | | Atlasied | | 207.52 @ 1 |
 | primebuy.com | TSD-ML22VCA | 243.3 | 1 | In Stock | | AtlasIED | 0.375 | 243.3 @ 1 |
 | bhphotovideo.com | ATTSDML22VCA | 248.6288 | 1 | In Stock | | Atlas Sound | | 248.6288 @ 1 |
 | Zoro | G3999299 | 249.3 | 1 | In Stock | | Atlas | | 249.3 @ 1 |
 | conferenceroomav.com | TSD-ML22VCA | 257.99 | 1 | In Stock | | ATLASIED | 0.375 | 257.99 @ 1 |
 | alldataresource.com | 9998425 | 262.85 | 1 | In Stock | | Atlas Sound | | 262.85 @ 1 |
| exertisalmo.com | TSD-ML22VCA | 320.99 | 1 | In Stock | | Atlas | | 320.99 @ 1 |
| Newark | 58AC4356 | 320.99 | 1 | In Stock | | ATLAS SOUND | | 320.99 @ 1 |
