Attributes
| Key | Value |
|---|---|
| 24vdc Power Requirements | 500mA |
| Audio Channels | 1 |
| Average Current | 110mA |
| Average VA Watts | 6.7W |
| Brand Name | Atlas Sound |
| Cable Retainers | Qty 2 |
| Chassis Color | Black |
| Chassis Material | Aluminum |
| Color | Black |
| Connection | Removable 3 Position Captive Screw 3.5mm Spacing, Removable 5 Position Captive Screw 5mm Spacing |
| Country of Origin | China |
| Country of Origin (subject to change) | Unknown |
| Depth | 2.75" (6.99 cm), 2.8, 2.8" |
| Description | Mono Commercial Amplifier |
| Energy Star | Yes |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Frequency Response | 40Hz - 20kHz, 40Hz - 20kHz ( 3dB) |
| Height | 1.5", 1.5, 1.5" (3.81 cm) |
| Idle Current | 60mA |
| Idle VA Watts | 2.8W |
| Impedance | 10KOhms Balanced, 5KOhms Unbalanced, 4 Ohm |
| Input Signal | Green, 25mV On Threshold |
| Input Voltage | 24 V DC |
| Level Control | Qty 1, Removable Knob with Security Cover |
| Level Control Knob | Qty 1 |
| Level Control Security Cover | Qty 1 |
| Line Input Level | 500mV (-6dBV) Balanced |
| Load Taps | 4Ohms, 25V = 31Ohms Load, 70V = 245Ohms Load, 100V = 500Ohms Load |
| Manufacturer | Atlas Sound LP. |
| Manufacturer Part Number | TSD-PA10VG |
| Manufacturer Website Address | http://www.atlassound.com |
| Max Current | 500mA |
| Max VA Watts 14W Dimensions | 1.5" (39mm) x 4" (101mm) x 5.2" (132mm) |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 40 Hz |
| Operating Power Consumption | 14 W |
| Output Taps | 4Ohms, 25V, 70V, 100V |
| Peak | Red, -3dB Before Clip |
| Power | Blue |
| Power Output | 10W @ 4Ohms, 5W @ 8Ohms, 10W @ 25V = 62Ohms, 70V = 490Ohms, 100V = 1000Ohms Loads, 10W at 4?, 5W at 8?, 10W at 25V/70V/100V Loads |
| Power Supply Sold separately | cUL, CE, RoHS, TUV |
| Product Model | TSD-PA10VG |

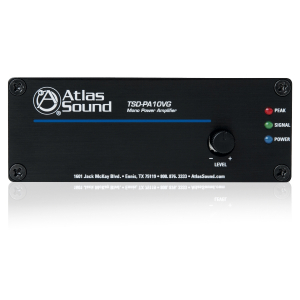

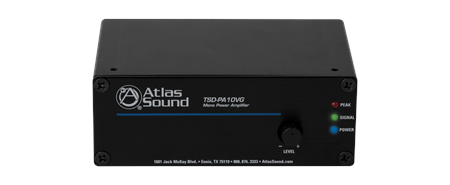

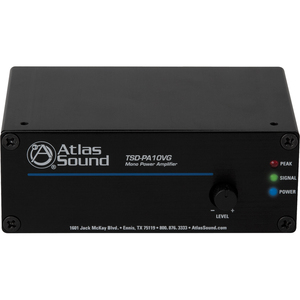

| Product Name | TSD-PA10VG 10W Mono 25V/70.7V/100V Power Amplifier |
| Product Type | Amplifier |
| RMS Output Power | 10 W |
| Signal to Noise | 78dB |
| Signal to Noise Ratio (SNR) | 78 dB |
| THD | .5% at 1kHz, 05% & 1kHz |
| Total Harmonic Distortion (THD) | 0.5% |
| Type | Qty 1, Balanced Line, Speaker Output |
| Velcro | Industrial-Grade |
| Voltage | 24VDC 1000mA |
| Voltage Compatibility | 24V |
| Warranty | 3 years |
| Weight | 6oz, .165kg |
| Weight (Approximate) | 6 oz |
| Width | 4", 4" (10.16 cm), 4 |
| Wire Size | 14 Gauge Max |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | PCNation | 5NN746 | 127.46 | 127.46 | 1 | In Stock | ATLASIED | 1.0 | 127.46 @ Qty: 1+ | |
 | AI Consolidated | TSD-PA10VG-ATLAS-SOUND | 136.22 | 136.22 | 1 | In Stock | Atlas Sound | 27.0 | 136.22 @ Qty: 1+ | |
| spaceboundsolutions.com | SBS-720695 | 140.23 | 140.23 | 1 | In Stock | Atlasied | 140.23 @ Qty: 1+ | |||
 | ACR | TSD-PA10VG | 149.45 | 149.45 | 1 | In Stock | Atlas Sound | 149.45 @ Qty: 1+ | ||
 | primebuy.com | TSD-PA10VG | 166.4 | 166.4 | 1 | In Stock | AtlasIED | 166.4 @ Qty: 1+ | ||
 | Zoro | G8042751 | 167.25 | 167.25 | 1 | In Stock | Atlas | 167.25 @ Qty: 1+ | ||
 | bhphotovideo.com | ATTSDPA10VG | 167.9888 | 167.9888 | 1 | In Stock | Atlas Sound | 167.9888 @ Qty: 1+ | ||
 | alldataresource.com | 723635 | 172.18 | 172.18 | 1 | In Stock | Atlas Sound | 172.18 @ Qty: 1+ | ||
 | conferenceroomav.com | TSD-PA10VG | 174.99 | 174.99 | 1 | In Stock | ATLASIED | 0.375 | 174.99 @ Qty: 1+ | |
| Crutchfield | 978TSDPA10 | 174.99 | 174.99 | 1 | In Stock | AtlasIED | 174.99 @ Qty: 1+ | |||
| exertisalmo.com | TSD-PA10VG | 216.99 | 216.99 | 1 | In Stock | Atlas | 216.99 @ Qty: 1+ | |||
| Newark | 58AC4357 | 216.99 | 216.99 | 1 | In Stock | ATLAS SOUND | 216.99 @ Qty: 1+ |
