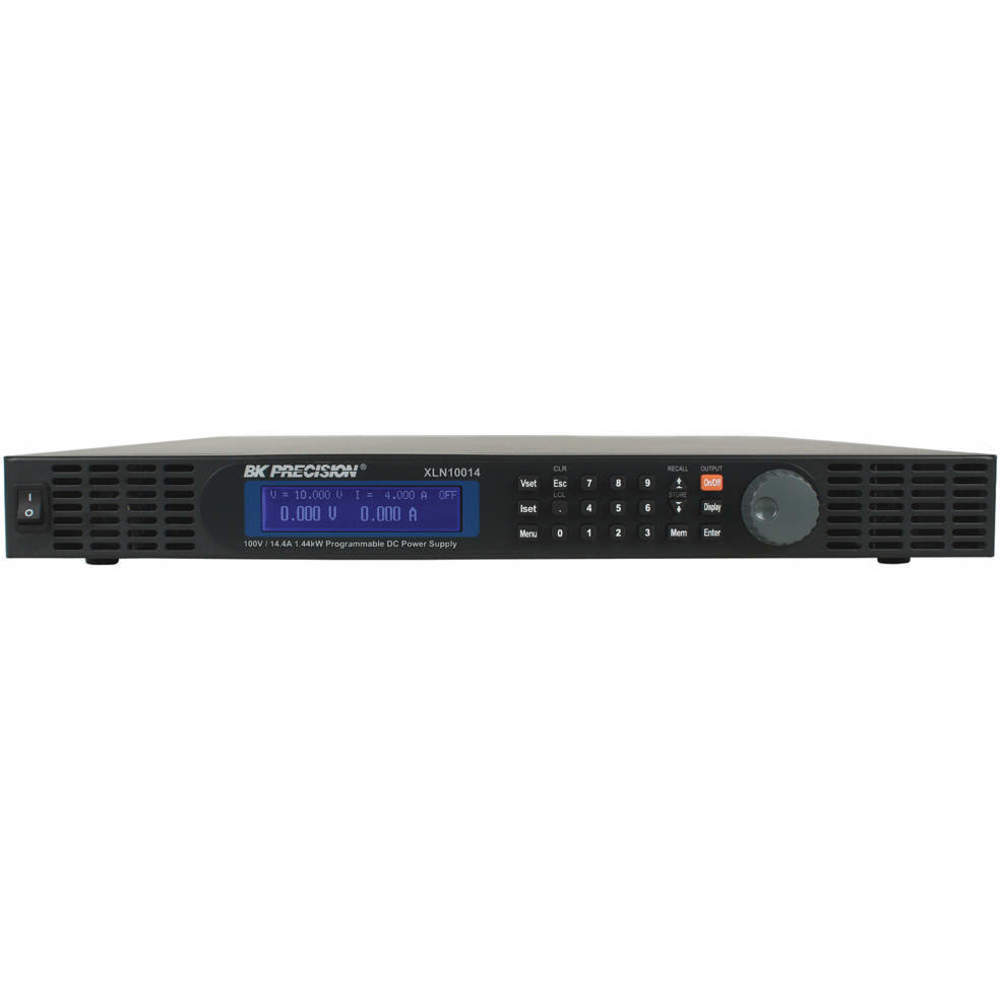

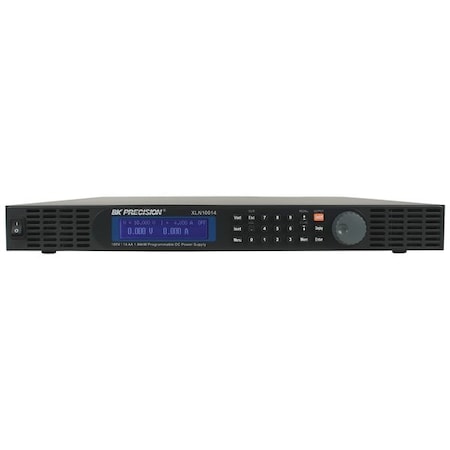

B&K Precision XLN10014

DC Power Supply, 0-100V, 0-14.4A, USB, RS485

DC Power Supply, 0-100V, 0-14.4A, USB, RS485zoom

Attributes

Key Value
Accuracy - Voltmeter; A.0.05% + 25mV, 0.05% + 6.
Calibration Certificateyes
CategoryTest and Measurement
ConditionNew
ConnectionRS485, USB
Current14.4 A
Current - Output0 ~ 14.4A
Current Limits0% to 100%
Current Regulation - Li.4mA
Current Regulation - Lo.6mA
Dimensions16.5 W x 1.7 H x 17.0 D.
DisplayVFD
Display TypeLCD
Efficiency80% (Full Load)
Fall Time?30 ms/?1000 ms
FeaturesMemory, Programmable, R.
IncludesPower Cord, Rackmount K.
Input Frequency (Hz)47 to 63 Hz
Input Voltage100-240 VAC, 100-240 V .
InterfaceUSB; Optional LAN and G.
ItemDC Power Supply
Line RegulationLess Than or Equal To .
Line Volts RegulationLess Than or Equal To .
Load RegulationLess Than or Equal To .
ManufacturerBK Precision
Manufacturers Warranty .3 yr
Meter TypeDigital
MfrB&K Precision
Number of Characters4 (2)
Number of Outputs1
Output Current14.4 A
Output Current (Amps)0 to 14.4 A
Output Power1440 W
Output Voltage100 VDC
Output Volts (DC)0 to 100V
PackageBox
Part StatusActive
Power1.44 kW
Power (Watts)1440W
Power Supply TypeSingle Output DC Power .
ProtectionOCP, OPP and Key-Lock F.
Response Time<50 ms
Ripple8mV rms, 80mV p-p
Ripple Volts RegulationLess Than or Equal To .
Rise Time?30 ms
SeriesXLN, XLN Series
Size / Dimension17.008" L x 16.535" W x.
Temperature, Range, Ope.7 to 40?C
TypeProgrammable, Bench (AC.
Voltage100 V
Voltage - Output0 ~ 100VDC
Voltage - Supply100 ~ 240VAC
Voltage Regulation - Li.10mV
Voltage Regulation - Lo.12mV
Weight19.8 Lbs., 20 lbs (9.1 .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Digi-Key22070592252.311B&K Precision20.02252.3 @ 1
us.rs-online.com701462412410.01In StockB&K Precision19.82410.0 @ 1
AmazonTPB0094JT0DQ2443.891In Stock1B&K Precision Corporation2443.89 @ 1
thumbzoomZoroG83312512507.991In StockB&K Precision28.02507.99 @ 1
thumbzoomvaluetronics.comBKPREC_XLN10014_NEW2510.01In StockBK Precision2510.0 @ 1
TranscatXLN100142550.01In StockB&K PRECISION2550.0 @ 1
thumbzoomjensentools.com18223.12550.013B&K Precision2550.0 @ 1
globaltestsupply.comXLN100142550.01In StockB&K Precision2550.0 @ 1
thumbzoomNewark53R04152550.01In StockB&K PRECISION2550.0 @ 1
thumbzoomsustainablesupply.comC30137222779.571In StockBk Precision28.02779.57 @ 1
thumbzoomRadwellXLN100143150.01In StockB&K PRECISION3150.0 @ 1
thumbzoomAccessotronikXLN10014_B1023639.51In StockB&K Precision3639.5 @ 1
thumbzoomRaptor SuppliesAC6VDN3967.9780141In StockB&K PRECISION3967.978014 @ 1
