- mpnXLN15010
- brandname: B&K Precision
- manufacturername: B&K Precision

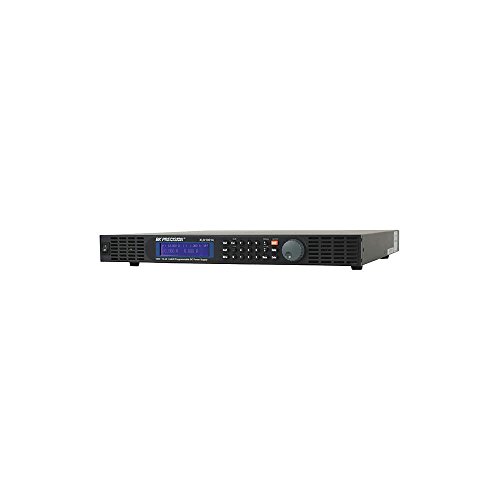

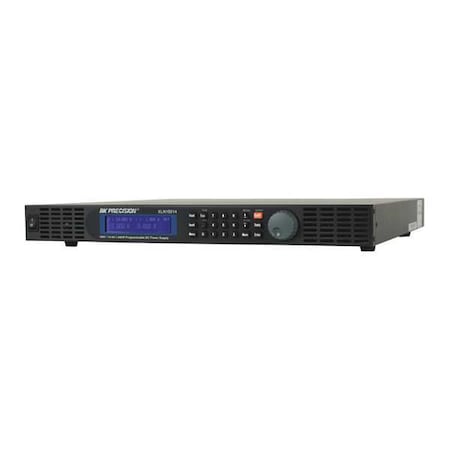

Single Output DC Power Supply Digital
- Brand: B K PRECISION
- PartNumber: XLN15010
- PackageQuantity: 1
- Binding: Personal Computers
- Manufacturer: B&K Precision
- Label: B&K Precision
Attributes
| Key | Value |
|---|
| Accuracy - Voltmeter; A. | 0.05% + 75mV, 0.1% + 30. |
| Calibration Certificate | NIST Traceable |
| Category | Test and Measurement |
| Condition | New |
| Connection | Parallel |
| Current | 10.4 A |
| Current - Output | 0.04 ~ 10.4A |
| Current Limits | 0% to 100% |
| Current Regulation - Li. | 20.8mA |
| Current Regulation - Lo. | 40.4mA |
| Current stabilisation | ?0.1%+ 30mA |
| Dimensions | 420x44.2x460mm |
| Display | 4 Digit VFD |
| Display Type | LCD |
| Features | Memory, Programmable, R. |
| Includes | Power Cord, Rackmount K. |
| Input Frequency (Hz) | 47 to 63 Hz |
| Input Voltage | 100 to 240V AC |
| Item | Single Output DC Power . |
| Kind of display used | LCD |
| Kind of power supply | programmable, |
| Line Regulation | Less Than or Equal 17 mV |
| Line Volts Regulation | 0.1% + 3mV |
| Load Regulation | Less Than or Equal 17 mV |
| Manufacturer | BK Precision, B&K Preci. |
| Manufacturer series | XLN |
| Manufacturers Warranty . | 3 yr |
| Maximum power | 1.56kW |
| Measuring instrument fe. | master/slave mode for p. |
| Meter Type | Digital |
| Mfr | B&K Precision |
| Number of channels | 1 |
| Number of Characters | 4 (2) |
| Number of Outputs | 1 |
| Output current | 0.04...10.4A |
| Output Current | 10.4 A |
| Output Current (Amps) | 0.04 to 10.4 A |
| Output current resoluti. | 1mA |
| Output Power | 1560 W |
| Output voltage | 5...150V DC |
| Output Voltage | 5-150 VDC |
| Output voltage resoluti. | 10mV |
| Output Volts (DC) | 5 to 150V |
| Package | Box |
| Part Status | Active |
| Power | 1.56 kW |
| Power (Watts) | 1560W |
| Power Supply Type | Single Output DC Power . |
| Product Status | Active |
| Protection | anti-overload OPP,, Fol. |
| Ripple | 10mVrms, 100mVpp |
| Ripple Volts Regulation | Less Than or Equal 10 m. |
| Series | XLN, XLN Series |
| Size / Dimension | 18.110" L x 16.535" W x. |
| Software | LabVIEW |
| Type | Programmable, Bench (AC. |
| Type of power supply | programmable laboratory |
| Voltage | 150 V |
| Voltage (regulated) rip. | ?10mVrms, |
| Voltage - Output | 5 ~ 150VDC |
| Voltage - Supply | 100 ~ 240VAC |
| Voltage Regulation - Li. | 17mV |
| Voltage Regulation - Lo. | 17mV |
| Voltage stabilisation | ?0.05%+ 75mV |
| Weight | 9kg, 20 lbs (9.1 kg) |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | All-Spec | XLN15010-65699 | 2300.0 | 1 | In Stock | | BK Precision | 29.0 | 2300.0 @ 1 |
 | TME | XLN15010 | 2525.43 | 1 | In Stock | | B&K PRECISION | 19.8 | 2525.43 @ 1 |
 | Zoro | G8413167 | 2674.99 | 1 | In Stock | | B&K Precision | 26.0 | 2674.99 @ 1 |
 | valuetronics.com | BKPREC_XLN15010_NEW | 2740.0 | 1 | In Stock | | BK Precision | | 2740.0 @ 1 |
| Digi-Key | 4271199 | 2740.01 | 1 | In Stock | | B&K Precision | 20.0 | 2740.01 @ 1 |
 | jensentools.com | 21138.1 | 2790.0 | 1 | In Stock | | B&K Precision | | 2790.0 @ 1 |
| globaltestsupply.com | XLN15010 | 2790.0 | 1 | In Stock | | B&K Precision | | 2790.0 @ 1 |
 | Newark | 95W0533 | 2790.0 | 1 | In Stock | | B&K PRECISION | | 2790.0 @ 1 |
| AmazonTP | B011OMRNGG | 2944.5 | 1 | In Stock | 30 | B K PRECISION | | 2944.5 @ 1 |
| Grainger | 20VD77 | 2968.0 | 1 | In Stock | 15 | B&K PRECISION | | 2968.0 @ 1 |
| us.rs-online.com | 70275474 | 3120.56 | 1 | In Stock | | B&K Precision | | 3120.56 @ 1 |
 | Raptor Supplies | AF7DAK | 4515.613596 | 1 | In Stock | | B&K PRECISION | | 4515.613596 @ 1 |
