Baldor-Reliance CDPX3436

B08J7R71GX

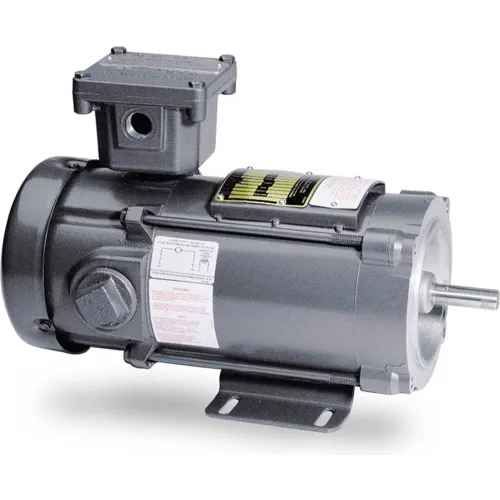

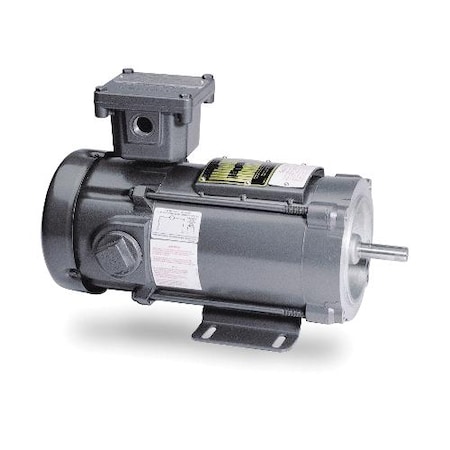

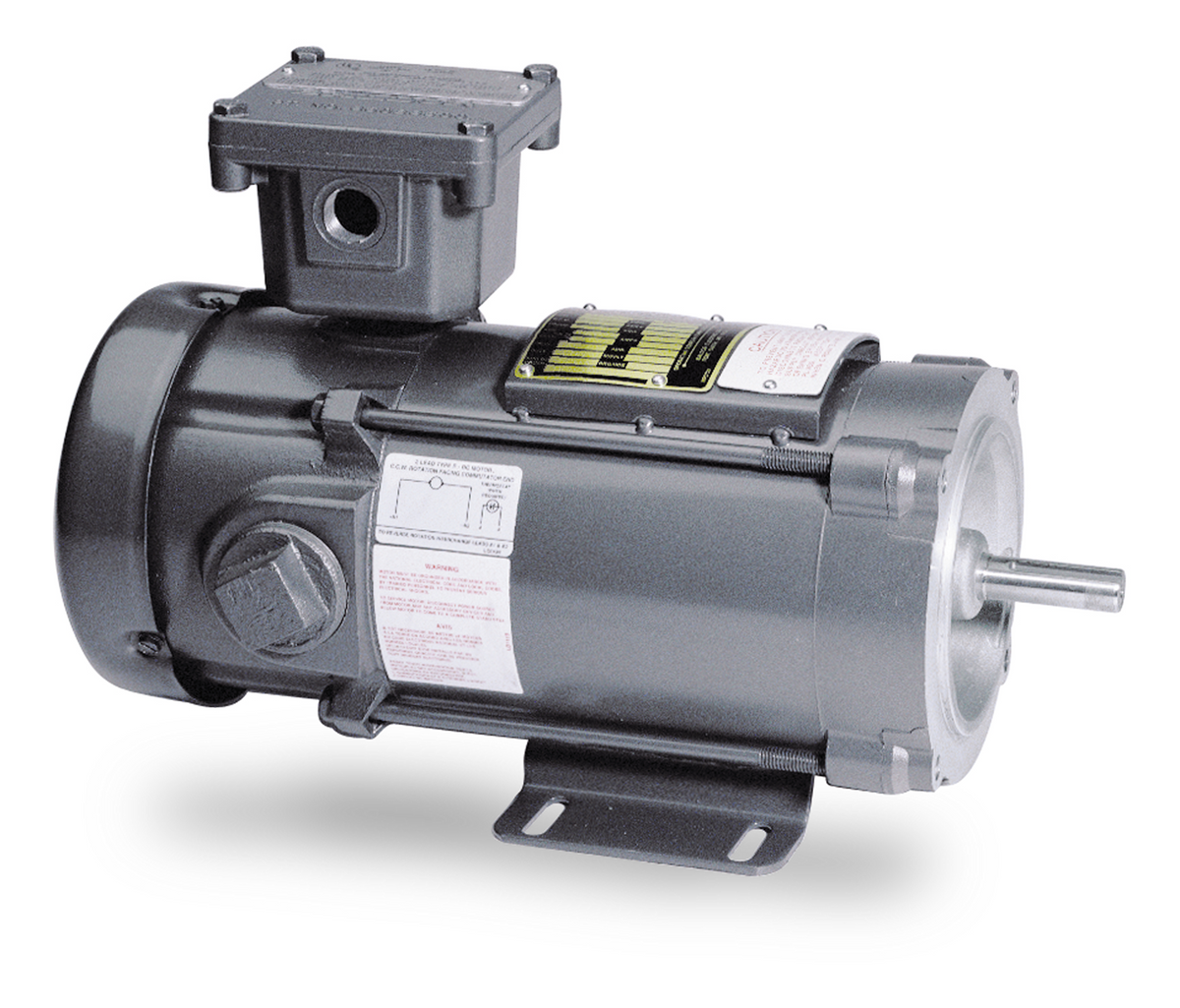

Baldor-Reliance CDPX3436 DC Electric Motor - Permanent Magnet, Brushed, 3/4 hp hp, 180 V, 1750 rpm, TEFC (Totally Enclosed Fan Cooled), 56C Frame

Baldor-Reliance CDPX3436 DC Electric Motor - Permanent Magnet, Brushed, 3/4 hp hp, 180 V, 1750 rpm, TEFC (Totally Enclosed Fan Cooled), 56C Framezoom

Attributes

Key Value
Amps3.5
ApprovalsCSA, UL
Armature Current3.5, 3.5 A
Armature Voltage180 V
Base RPM1,750 RPM
BearingsSealed
Country of Origin (subj.United States
CT Speed Range20:1
Drive End Flange TypeC-Face
Duty CycleContinuous
EnclosureTEFC
Enclosure MaterialSteel
Enclosure TypeXPFC (Explosion Proof F.
Estimated Weight51.00
Explosion Proof RatingClass I (Group D) Class.
Family SeriesBaldor Motors, EXPLOSIO.
Frame56C
Gross Weight51 lbs
Horsepower3/4 hp
HP.75, 3/4, 0.75
Insulation ClassF
Item NumberCDPX3436
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #34-6519-3865G1
Manufacturer Part NumberCDPX3436
Maximum Ambient Tempera.40? C
MountingFoot Mount, Rigid
Mounting TypeC-Face With Base
Net Weight51 lbs
Overall Length15.87"
Part NumberCDPX3436
PhaseDC
Product SeriesEXPLOSION PROOF PERMANE.
Product TypeExplosion Proof, DC
RotationReversible
RPM1700 - 1800, 1750
Service Factor1.00
Shaft Diameter0.625"
Ship Weight51 lbs.
Speed (RPM)1750
Voltage180V, 180
Volts180VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comCDPX34362425.281In StockBALDOR2425.28 @ 1
AmazonTPB000BMWP8M2566.791In Stock3Baldor Electric2566.79 @ 1
thumbzoomemotorpro.comCDPX34363226.581In StockBaldor51.03226.58 @ 1
factorysupplyoutlet.comSW84IK3534.511In StockBaldor-Reliance3534.51 @ 1
thumbzoomGalcoCDPX3436-BLDR3570.211In StockBaldor51.03570.21 @ 1
thumbzoomWalker IndustrialCDPX34363570.211In StockBaldor3570.21 @ 1
thumbzoomGlobal IndustrialWBB9099383572.01In Stock15Baldor-Reliance3572.0 @ 1
motorsandcontrol.comCDPX34363718.971In StockBaldor Reliance51.03718.97 @ 1
us.rs-online.com725146934057.341In StockBaldor-Reliance4057.34 @ 1
thumbzoompumpproducts.comCDPX34364224.01In StockBaldor4224.0 @ 1
thumbzoomcbtcompany.comCDPX34364230.71In StockBaldor Reliance4230.7 @ 1
thumbzoomZoroG33018414291.251In StockBaldor-Reliance4291.25 @ 1
kirbyrisk.com31289894681.231In StockBaldor4681.23 @ 1
motionindustries.com005345375149.591In StockBaldor-Reliance5149.59 @ 1
thumbzoomRaptor SuppliesAJ6PEC10633.69704151In StockBALDOR MOTOR10633.6970415 @ 1
