Baldor CEM3546T
Baldorzoom

Baldor CEM3546T

mpn:
CEM3546T
brand:
Baldor
manufacturer:
Baldor
MPN:
CEM3546T
Description:
CEM3546T 1HP1760RPM3PH60HZ143TC3519MTE FCF1
Weight:
2.3
Weight:
35.0 LB
Preferred Price:
611.12
Min Offer Price:
454.50
Price:
611.12
Min Simple Price:
345.27
Absolute Min Price:
490.28
Min Price:
490.28
Dimensions:
[17.0, 12.0, 8.0]
qty:
21
simpleSku:
jkwNTE:::CEM3546T
sku:
jkwNTE::Z6:CEM3546T@y0
condition:
11
seller:
Wilson
amzMan:
baldor
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Application, Product TypeGeneral Purpose
BrandBaldor-Reliance
Capacitor Required, International Shipping, Usable @ 200VNo
CC NumberCC010A
ColorGold
Comments, Frequency60 Hz
Composition, ConstructionCast Iron
Country of Origin (subject to change)United States
Current Stock, Phase3
Drive End Flange TypeC-Face
Duty, Duty CycleContinuous
Efficiency %, Nominal Efficiency85.5 %
EnclosureTotally Enclosed Fan Cooled
Enclosure, Enclosure TypeTEFC
Estimated Weight36.00
Family SeriesBaldor Motors
FL Amps3.1-3/1.5
FL Efficiency85.5
Footnotes1,30
Frame MaterialRolled steel
Frame, NEMA Frame143TC
Full Load Amps3.0/1.50
Green Certification or Other RecognitionNEMA Premium(R) Rated
Gross Weight, Net Weight0 lbs
Hertz, Hz60
Horsepower1 hp
HP, No. of Speeds, Number of Speeds1
IncludesConduit Box
Ins. ClassF
Inverter Rated, Usable @ 208VYes
ItemGeneral Purpose Motor
Item Number, Mpn, Part NumberCEM3546T
Lead TimeExpected to ship in 1-2 business days
Length Less Shaft11 3/16 in
ManufacturerBaldor, Baldor Reliance
Manufacturers Warranty Length3 yr
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor, Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Mounting, Mounting TypeFoot Mount
Nameplate RPM1,760
NEMA DesignB
Nominal Voltage, Voltage (AC)208 VAC
Overall Length13 5/16 in
PhaseThree, 3 Phase
RPM1760 RPM, 1,760 RPM
RPM Group1701-1800
RPM Range1,701-1,800
RPM, Speed (RPM)1760
SeriesSuper-E Series
Shaft Dia.7/8 in
Shaft Length2 3/16 in
SKUZO-G7837182
StandardsCSA, CSA EEV, UR
SubCategoryMotors/Ac Motors
UPC, UPC Code781568541821
Voltage208V, 230V, 460V, 230/460V AC, 230/460
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Weight36 lb

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomTask SurplusA4000-23B1350.0350.01In StockBALDOR350.0 @ Qty: 1+
thumbzoomAmazonB00AED52Z6372.48372.481In StockBaldor372.48 @ Qty: 1+
thumbzoomelectricmotorwholesale.comCEM3546T476.98476.981In StockBaldor36.0476.98 @ Qty: 1+
thumbzoomMRO Supply699253612.25612.251In StockBaldor612.25 @ Qty: 1+
thumbzoomGalcoCEM3546T-BLDR709.56709.561In StockBaldor709.56 @ Qty: 1+
thumbzoomWalker IndustrialCEM3546T714.29714.291In StockBaldor714.29 @ Qty: 1+
thumbzoomZoroG7837182726.17726.171In StockBaldor-Reliance36.8726.17 @ Qty: 1+
motorsandcontrol.comCEM3546T744.05744.051In StockBaldor Reliance36.0744.05 @ Qty: 1+
thumbzoomPurvisCEM3546T753.08753.081In StockBaldor-Reliance753.08 @ Qty: 1+
thumbzoomGlobal IndustrialWBB909518769.0769.01In Stock15Baldor-Reliance769.0 @ Qty: 1+
standardelectricsupply.com2298913799.58799.581In StockBaldor Electric799.58 @ Qty: 1+
thumbzoomapexindustrialautomation.comCEM3546T824.18824.18118Baldor-Reliance824.18 @ Qty: 1+
thumbzoompumpproducts.comCEM3546T845.17845.171In StockBaldor845.17 @ Qty: 1+
cbtcompany.comCEM3546T846.44846.441In StockBaldor Reliance846.44 @ Qty: 1+
us.rs-online.com71943912851.16851.161In StockBaldor-Reliance851.16 @ Qty: 1+
thumbzoomsimsupply.comZO-G7837182880.5880.513Baldor-Reliance880.5 @ Qty: 1+
kirbyrisk.com2409758936.58936.581In StockBaldor936.58 @ Qty: 1+
thumbzoomsustainablesupply.comC15502291091.511091.511In StockBaldor Electric36.81091.51 @ Qty: 1+
motionindustries.com044953281130.821130.821In StockBaldor-Reliance1130.82 @ Qty: 1+
thumbzoomRaptor SuppliesAJ6PMZ1228.1240791228.1240791In StockBALDOR MOTOR1228.124079 @ Qty: 1+
B00AED52Z6
518.69 USD
Baldor CEM3546T

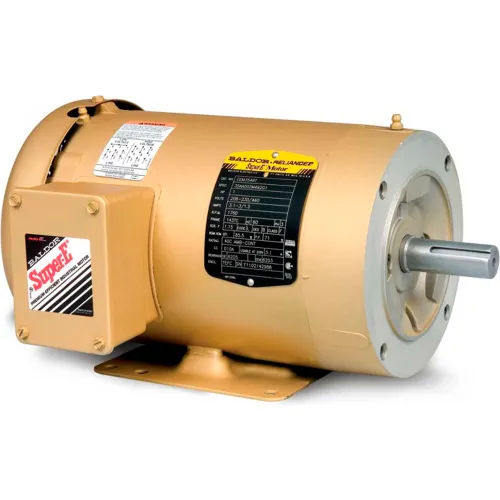

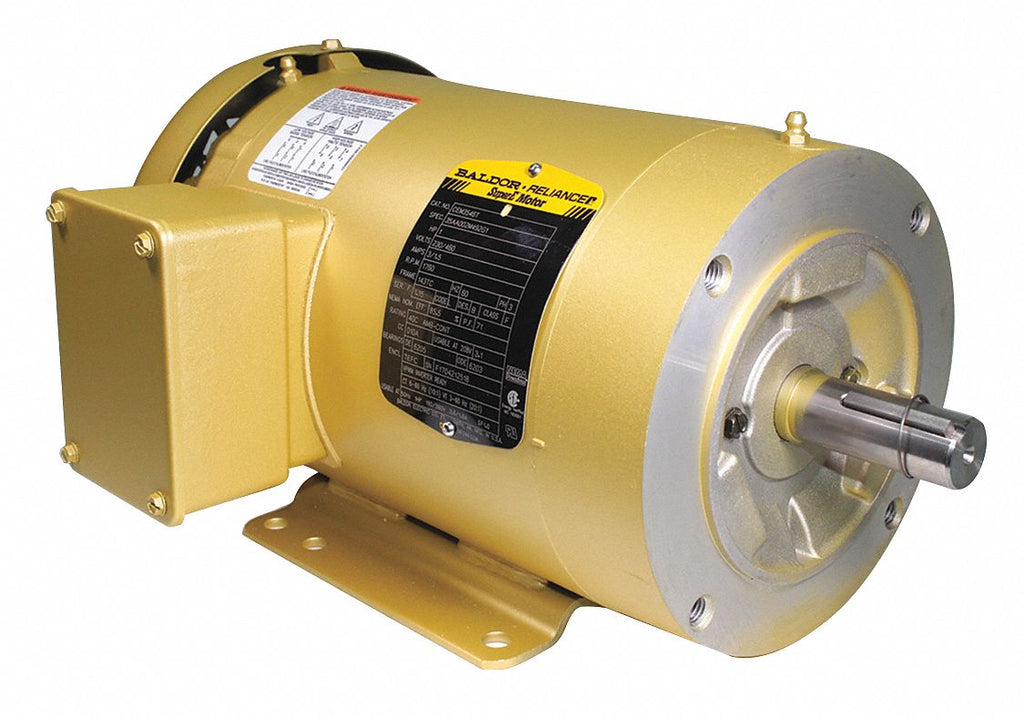

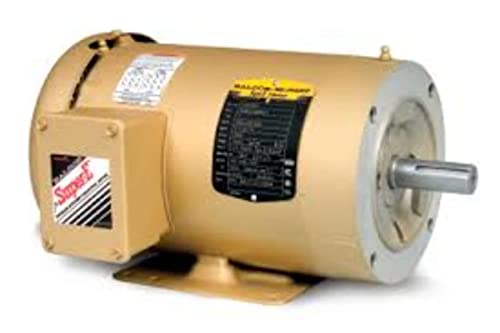

Baldor CEM3546T General Purpose AC Motor, 3 Phase, 143TC Frame, TEFC Enclosure, 1Hp Output, 1760rpm, 60Hz, 208-230/460V Voltage

Baldor CEM3546T General Purpose AC Motor, 3 Phase, 143TC Frame, TEFC Enclosure, 1Hp Output, 1760rpm, 60Hz, 208-230/460V Voltagezoom
