Baldor-Reliance CEM3550T

B08KQHS7QV

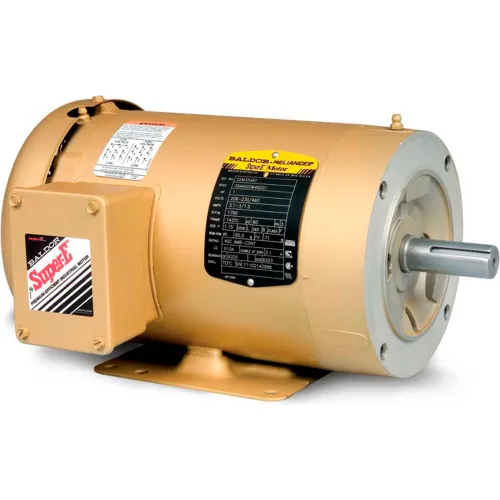

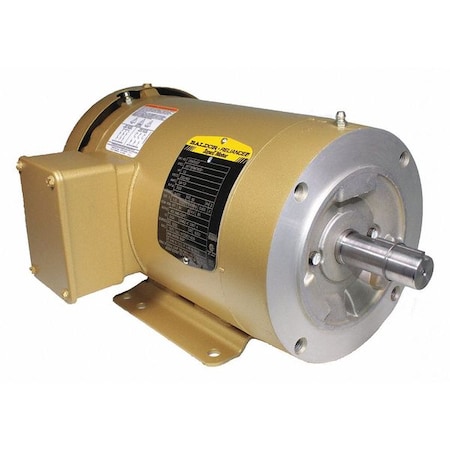

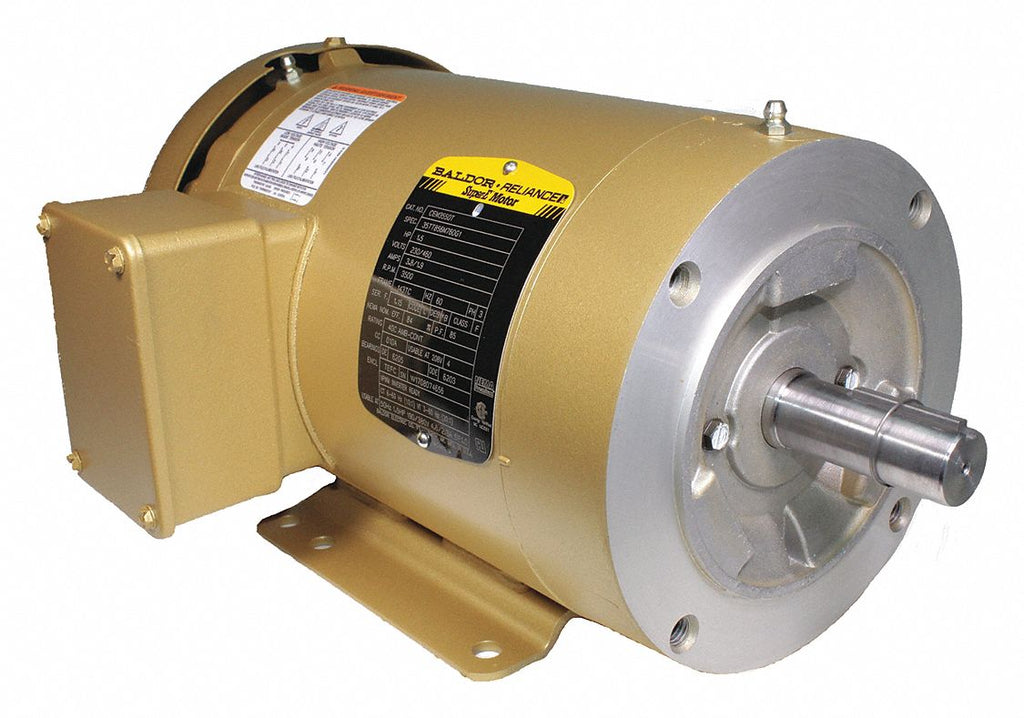

Baldor-Reliance CEM3550T General Purpose Motor - 3 ph, 1-1/2 hp, 3600 rpm, 208-230/460 V, 143TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Footed/C-Face Flange Mount

Baldor-Reliance CEM3550T General Purpose Motor - 3 ph, 1-1/2 hp, 3600 rpm, 208-230/460 V, 143TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Footed/C-Face Flange Mountzoom

Attributes

Key Value
ApplicationGeneral Purpose
BrandBaldor-Reliance
Capacitor RequiredNo
CC NumberCC010A
ColorGold
Comments60 Hz
CompositionCast Iron
ConstructionCast Iron
Country of Origin (subj.United States
Current Stock4
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %84 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTEFC
Estimated Weight40.00
Family SeriesBaldor Motors
FL Amps4-3.8/1.9
FL Efficiency84
Footnotes1
Frame143TC
Frame MaterialRolled steel
Frequency60 Hz
Full Load Amps3.8/1.90
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower1-1/2 hp
HP1.5, 1 1/2
Hz60
IncludesConduit Box
Ins. ClassF
International ShippingNo
Inverter RatedYes
ItemGeneral Purpose Motor
Item NumberCEM3550T
Length Less Shaft11 3/16 in
ManufacturerBaldor, Baldor Reliance
Manufacturers Warranty .3 yr
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount
Mounting TypeFoot Mount
MpnCEM3550T
Nameplate RPM3,500
NEMA DesignB
NEMA Frame143TC
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency84 %
Nominal Voltage208 VAC
Number of Speeds1
Overall Length13 5/16 in
Part NumberCEM3550T
Phase3, Three, 3 Phase
Product TypeGeneral Purpose
RPM3,500 RPM, 3500 RPM, 34.
RPM Group3001-3600
RPM Range3,001-3,600
SeriesSuper-E Series
Service Factor1.15
Shaft Dia.7/8 in
Shaft Length2 3/16 in
SKUZO-G8242796
Speed (RPM)3500
StandardsCSA, CSA EEV, UR
SubCategoryMotors/Ac Motors
UPC781568542835
UPC Code781568542835
Usable @ 200VNo
Usable @ 208VYes
Voltage208V, 230V, 460V, 230/4.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Weight40 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
motionindustries.com0449534929.91In StockBaldor-Reliance29.9 @ 1
thumbzoomelectricmotorwholesale.comCEM3550T537.861In StockBaldor40.0537.86 @ 1
AmazonTPB07FN3CYNC604.641In Stock3Baldor Electric604.64 @ 1
thumbzoomPurvisCEM3550T760.181In StockBaldor-Reliance760.18 @ 1
thumbzoomGalcoCEM3550T-BLDR791.711In StockBaldor791.71 @ 1
thumbzoomWalker IndustrialCEM3550T791.711In StockBaldor791.71 @ 1
thumbzoomZoroG8242796797.01In StockBaldor-Reliance40.38797.0 @ 1
motorsandcontrol.comCEM3550T824.691In StockBaldor Reliance40.0824.69 @ 1
thumbzoomGlobal IndustrialWBB909525849.01In Stock15Baldor-Reliance849.0 @ 1
thumbzoompumpproducts.comCEM3550T936.831In StockBaldor936.83 @ 1
thumbzoomsimsupply.comZO-G8242796943.221In StockBaldor-Reliance943.22 @ 1
us.rs-online.com71943915989.631In StockBaldor-Reliance989.63 @ 1
kirbyrisk.com31290451038.081In StockBaldor1038.08 @ 1
thumbzoomsustainablesupply.comC14891861064.411In StockBaldor Electric40.381064.41 @ 1
thumbzoomRaptor SuppliesAJ6PND1312.6180861In StockBALDOR MOTOR1312.618086 @ 1
