Baldor CEM3554T

B06XDS86Y6

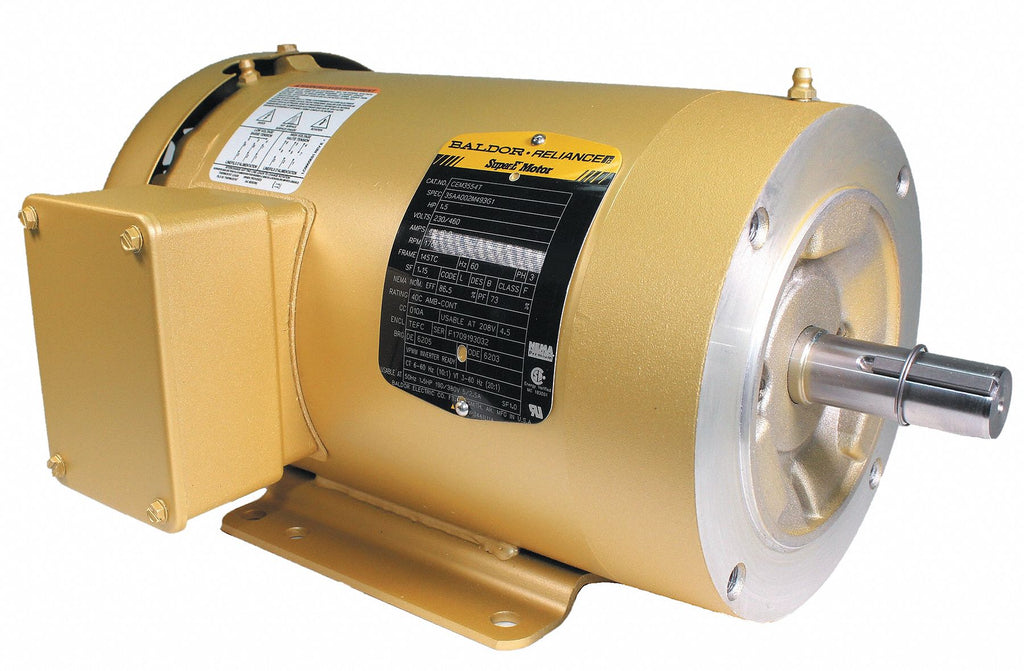

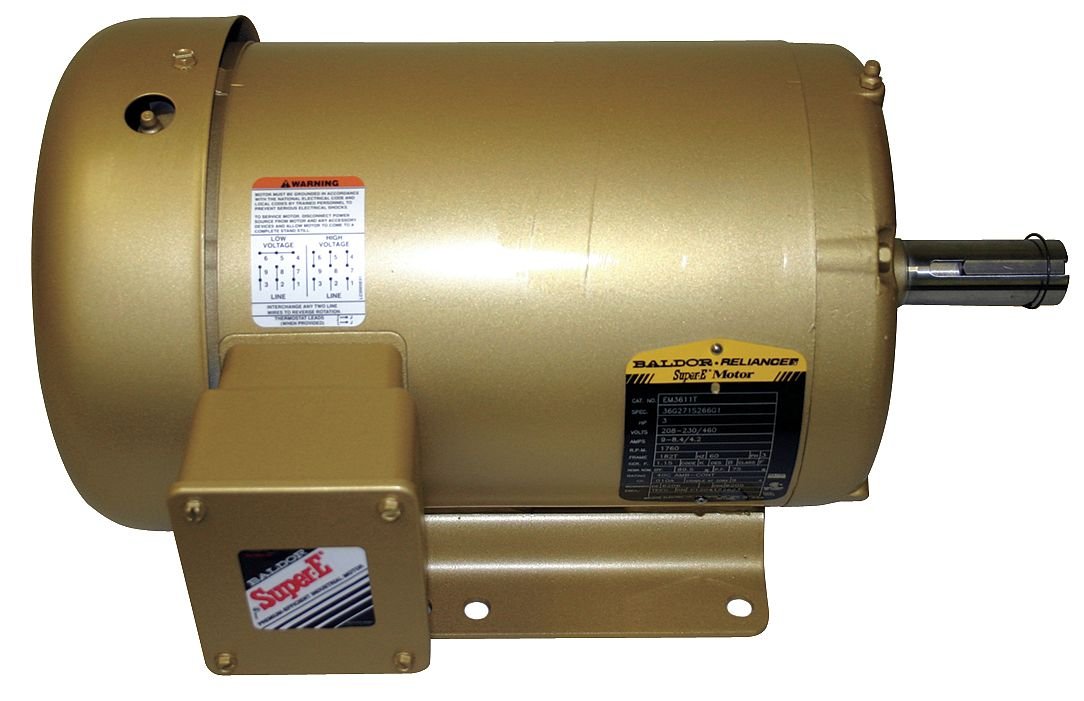

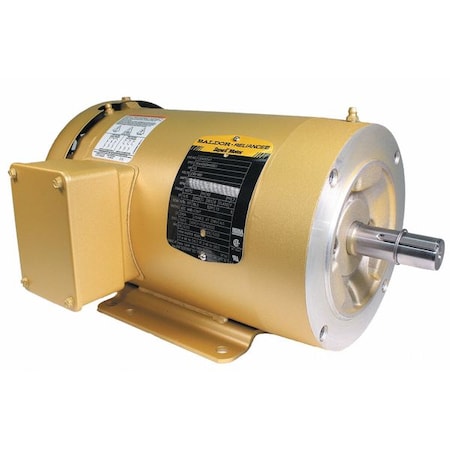

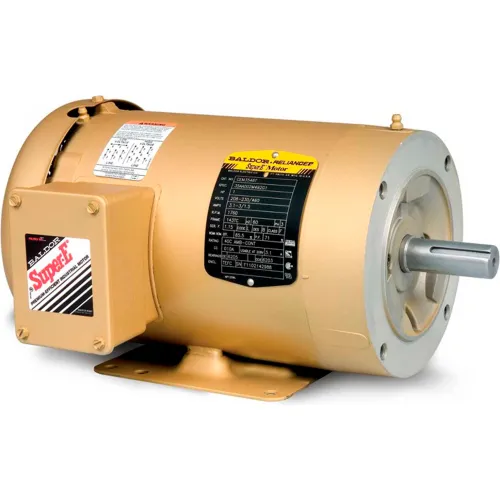

Baldor General Purpose Motor CEM3554T, 1.5 HP, 208-230/460 V, 3 PH, 1760 RPM, 145TC, TEFC

Baldor General Purpose Motor CEM3554T, 1.5 HP, 208-230/460 V, 3 PH, 1760 RPM, 145TC, TEFCzoom

Attributes

Key Value
ApplicationGeneral Purpose
Bearing TypeBall
BrandBaldor-Reliance
Capacitor RequiredNo
CC NumberCC010A
ColorGold
CompositionSteel
ConstructionCast Iron
Country of Origin (subj.United States
Current Stock3
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %86.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTEFC
Estimated Weight42.00
Family SeriesBaldor Motors, M Series
FL Amps4.5-4.4/2.2
FL Efficiency86.5
Footnotes1,30
Frame145TC
Frame MaterialRolled steel
Full Load Amps4.4/2.2
Green Certification or .NEMA Premium(R) Rated
Gross Weight42 lbs
Hertz60
Horsepower1-1/2 hp
HP1.5, 1 1/2
Hz60
IncludesConduit Box
Ins. ClassF
International ShippingNo
Inverter DutyNo
Inverter RatedYes
ItemGeneral Purpose Motor
Item NumberCEM3554T
Lead TimeExpected to ship in 1-2.
Length Less Shaft11 3/16 in
ManufacturerBaldor, Baldor Reliance
Manufacturer Part NumberCEM3554T
Manufacturers Warranty .3 yr
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount
Mounting TypeC-Face Footed
MpnCEM3554T
Nameplate RPM1,760
NEMA DesignB
NEMA Frame145TC
Net Weight41 lbs
No. of Speeds1
Nominal Efficiency86.5 %
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
Overall Length13 5/16 in, 13.29 "
Overload ProtectionNone
Part NumberCEM3554T
Phase3, Three, 3 Phase
Product SeriesM
Product TypeGeneral Purpose
RPM1760 RPM, 1760, 1,800 R.
RPM Group1701-1800
RPM Range1,701-1,800
SeriesSuper-E Series
Shaft Dia.7/8 in
Shaft Length2 3/16 in
SKUZO-G8226671
Speed (RPM)1760
StandardsCSA, CSA EEV, UR
SubCategoryMotors/Ac Motors
UPC781568551424
UPC Code781568551424
Usable @ 200VNo
Usable @ 208VYes
Voltage208V, 230V, 460V, 208-2.
Voltage (AC)208-230 VAC, 460 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Weight42 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comCEM3554T527.381In StockBaldor42.0527.38 @ 1
thumbzoomAmazonB00AED5UUI555.01In StockBaldor555.0 @ 1
thumbzoomMRO Supply699833676.981In StockBaldor676.98 @ 1
thumbzoommidwestapplianceparts.comCEM3554T-BM-P719.491In StockBaldor719.49 @ 1
thumbzoomGalcoCEM3554T-BLDR784.581In StockBaldor42.0784.58 @ 1
thumbzoomWalker IndustrialCEM3554T789.811In StockBaldor789.81 @ 1
thumbzoomZoroG8226671789.811In StockBaldor-Reliance44.65789.81 @ 1
thumbzoomGlobal IndustrialWBB909548809.01In Stock15Baldor-Reliance809.0 @ 1
motorsandcontrol.comCEM3554T822.721In StockBaldor Reliance42.0822.72 @ 1
thumbzoomPurvisCEM3554T832.871In StockBaldor-Reliance832.87 @ 1
thumbzoomsimsupply.comZO-G8226671934.7313Baldor-Reliance934.73 @ 1
thumbzoompumpproducts.comCEM3554T935.01In StockBaldor935.0 @ 1
cbtcompany.comCEM3554T935.931In StockBaldor Reliance935.93 @ 1
us.rs-online.com71943918987.2611Baldor-Reliance987.26 @ 1
kirbyrisk.com23983511035.61In StockBaldor1035.6 @ 1
thumbzoomsustainablesupply.comC14891871148.461In StockBaldor Electric44.651148.46 @ 1
motionindustries.com044953261250.631In StockBaldor-Reliance1250.63 @ 1
thumbzoomRaptor SuppliesAJ6PNG1306.77434551In StockBALDOR MOTOR1306.7743455 @ 1
