Baldor Electric CEM3559T

B07FN8M8MP

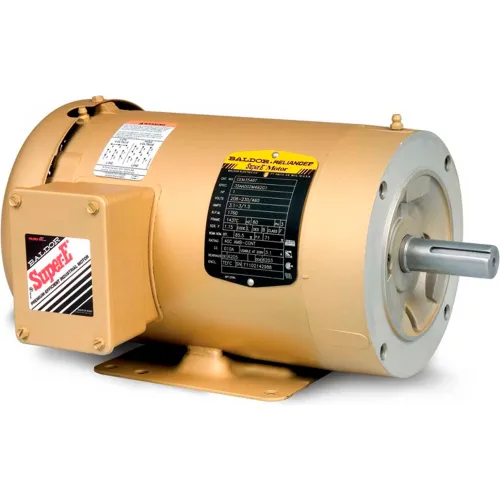

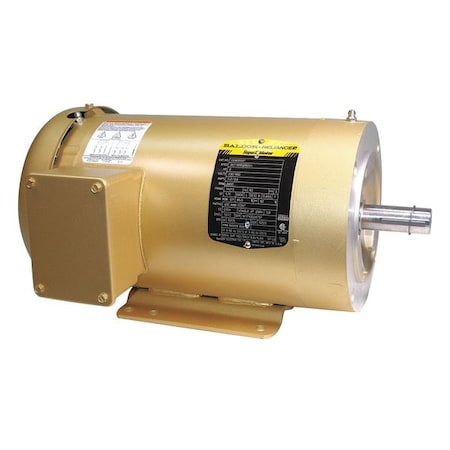

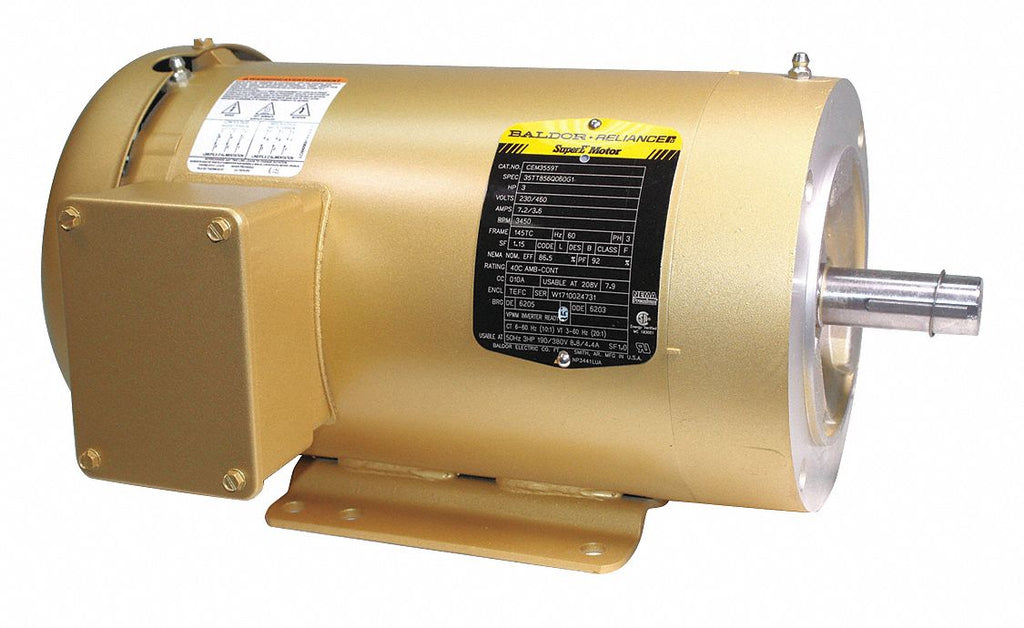

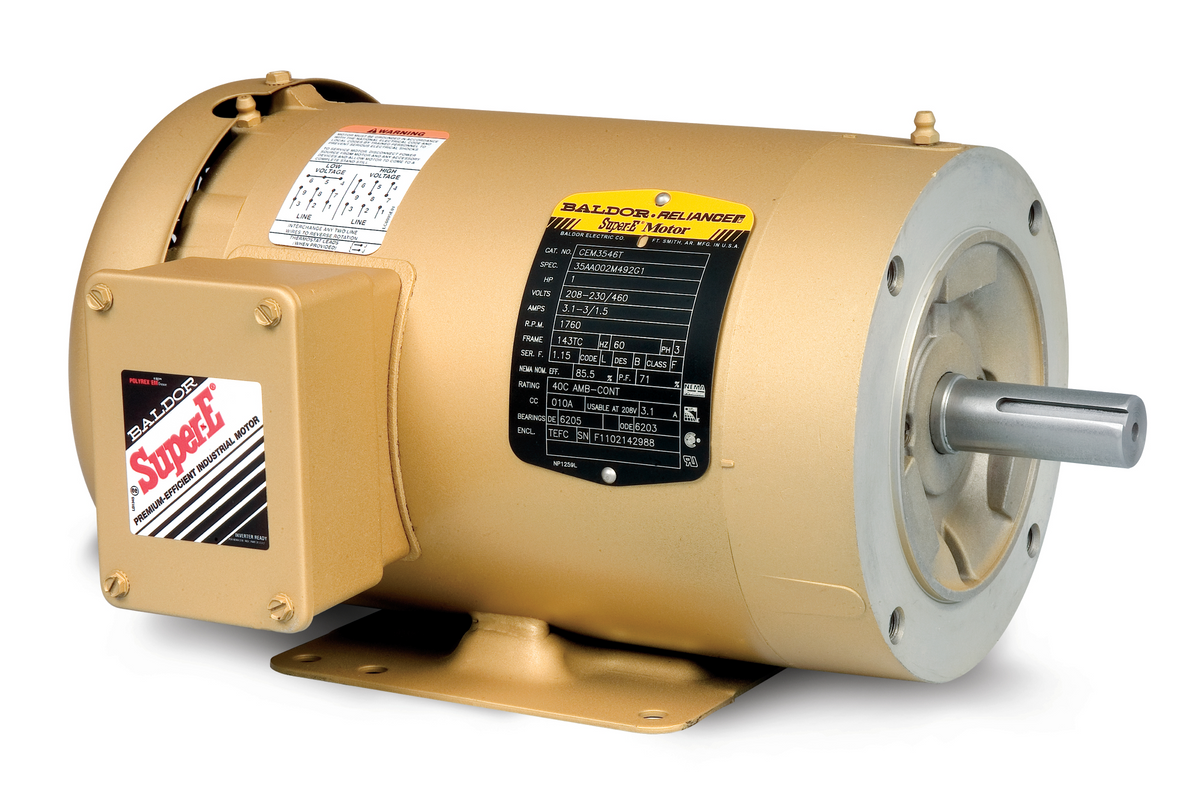

Baldor Electric, CEM3559T, 3HP, 3450RPM, 3PH, 460V;230V;208V, 145TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor

Baldor Electric, CEM3559T, 3HP, 3450RPM, 3PH, 460V;230V;208V, 145TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amps7.9/7.2/3.6
ApplicationGeneral Purpose
BearingsBall
BrandBaldor-Reliance
Capacitor RequiredNo
CC NumberCC010A
ColorGold
Comments60 Hz
CompositionCast Iron
ConstructionCast Iron
Country of Origin (subj.United States
Current Stock9
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency86.5%
Efficiency %86.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight52.00
Family SeriesBaldor Motors
FL Amps7.9-7.2/3.6
FL Efficiency86.5
Footnotes1
Frame145TC, 143TC
Frame MaterialRolled steel
Frequency60 Hz
Full Load Amps7.2/3.6
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower3 hp
HP3
Hz60
IncludesConduit Box
Ins. ClassF
Insulation ClassF
International ShippingNo
Inverter DutyYes
Inverter RatedYes
ItemGeneral Purpose Motor
Item NumberCEM3559T
Lead TimeExpected to ship in 1-2.
Length Less Shaft12 1/16 in
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #35TT856Q060G1
Manufacturers Warranty .3 yr
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, C-Face/Rigid
Mounting TypeFoot Mount
MpnCEM3559T
Nameplate RPM3,450
NEMA DesignB
NEMA Frame145TC
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency86.5 %
Nominal Voltage208 VAC
Number of Speeds1
Overall Length14.17", 14 3/16 in
Part NumberCEM3559T
Phase3, 3 Phase, Three
Product TypeGeneral Purpose, Three .
RotationReversible
RPM3450 RPM, 3450, 3,450 R.
RPM Group3001-3600
RPM Range3,001-3,600
SeriesSuper-E Series
Service Factor1.15
Shaft Dia.7/8 in
Shaft Diameter0.875"
Shaft Length2 3/16 in
Ship Weight52 lbs.
SKUZO-G8391643
Speed (RPM)3450
StandardsCSA, CSA EEV, UR
SubCategoryMotors/Ac Motors
UPC781568542859
UPC Code781568542859
Usable @ 200VNo
Usable @ 208VYes
Voltage208V, 230V, 460V, 208-2.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460
Weight52 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00AED62XW466.81In Stock2Baldor466.8 @ 1
thumbzoomelectricmotorwholesale.comCEM3559T639.941In StockBaldor639.94 @ 1
thumbzoomMRO Supply699257807.521In StockBaldor807.52 @ 1
thumbzoomemotorpro.comCEM3559T851.431In StockBaldor52.0851.43 @ 1
thumbzoommidwestapplianceparts.comCEM3559T-BM-P896.871In StockBaldor896.87 @ 1
thumbzoomGalcoCEM3559T-BLDR935.871In StockBaldor935.87 @ 1
thumbzoomWalker IndustrialCEM3559T942.111In StockBaldor942.11 @ 1
motorsandcontrol.comCEM3559T981.361In StockBaldor Reliance52.0981.36 @ 1
thumbzoomPurvisCEM3559T993.541In StockBaldor-Reliance993.54 @ 1
thumbzoomGlobal IndustrialWBB9094951009.01In Stock15Baldor-Reliance1009.0 @ 1
thumbzoompumpproducts.comCEM3559T1114.671In StockBaldor1114.67 @ 1
cbtcompany.comCEM3559T1116.41In StockBaldor Reliance1116.4 @ 1
us.rs-online.com719439291177.6311Baldor-Reliance1177.63 @ 1
kirbyrisk.com24012831235.281In StockBaldor1235.28 @ 1
thumbzoomZoroG83916431353.081In StockBaldor-Reliance52.11353.08 @ 1
thumbzoomsimsupply.comZO-G83916431382.2319Baldor-Reliance1382.23 @ 1
thumbzoomsustainablesupply.comC28629281451.251In StockBaldor Electric52.11451.25 @ 1
motionindustries.com044953361491.91In StockBaldor-Reliance1491.9 @ 1
thumbzoomRaptor SuppliesAJ6PNV1637.0071381In StockBALDOR MOTOR1637.007138 @ 1
