mpn:
brand:
manufacturer:
MPN:
Description:

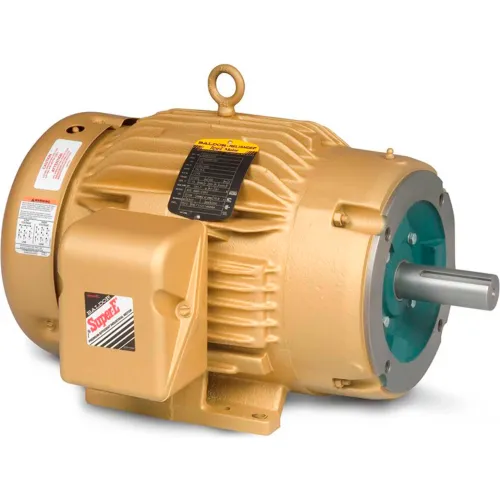

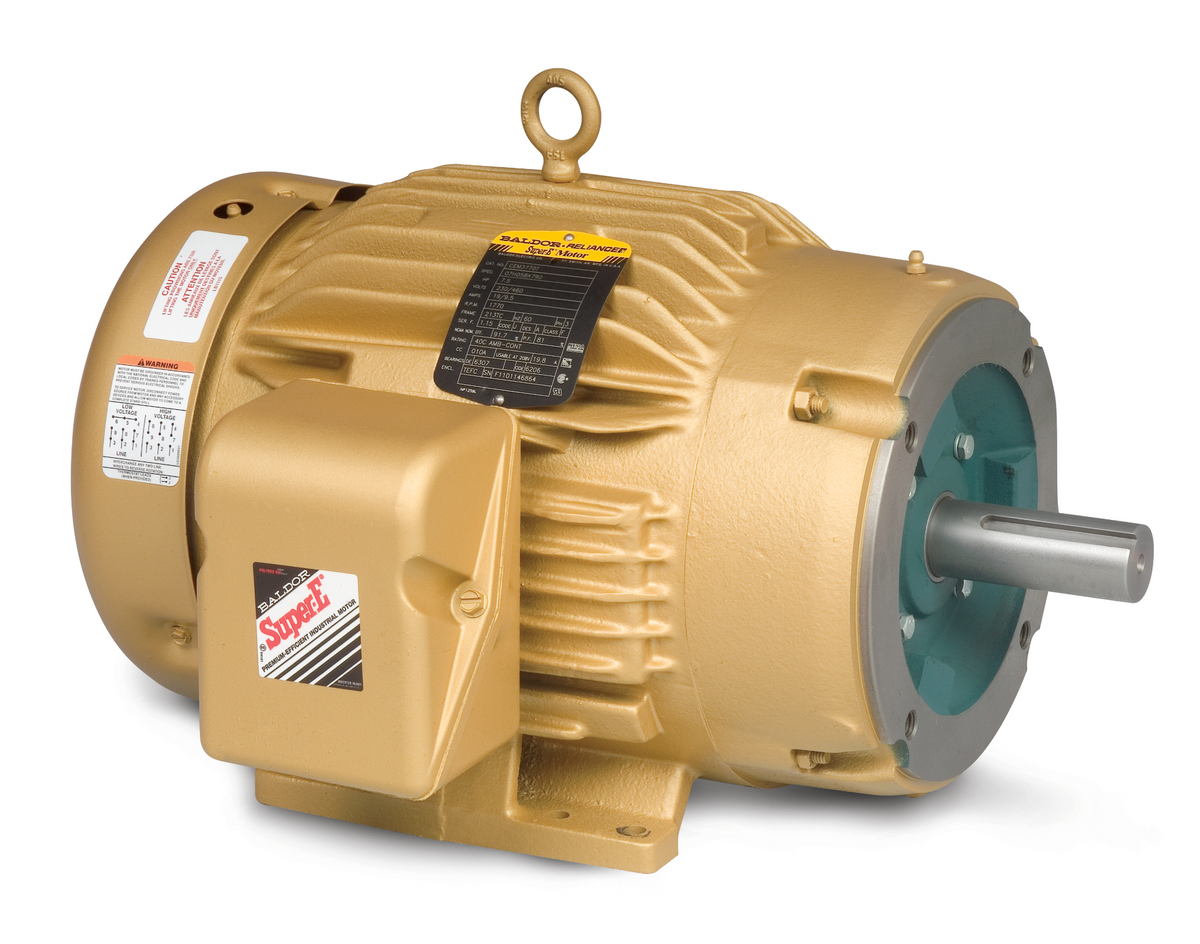

CEM3583T 1.5HP 3450RPM 3PH 60HZ 143TC 0524M TEFC
Weight:
56.0
Weight:
57.0 LB
Preferred Price:
1284.7
Price:
1284.7
Min Simple Price:
725.82
Absolute Min Price:
1030.66
Min Price:
1030.66
Dimensions:
[14.0, 11.0, 8.0]
qty:
21
simpleSku:
Mzg5Nw:::CEM3583T
sku:
Mzg5Nw::7O:CEM3583T@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
baldor
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Amps | 4/3.8/1.9 |
| Application | General Purpose |
| Bearing Type | Ball |
| Bearings | Ball |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 84.0% |
| Efficiency % | 84 % |
| Enclosure | TEFC, Totally Enclosed Fan Cooled |
| Enclosure Material | Iron |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled), TEFC |
| Estimated Weight | 55.00 |
| Family Series | Baldor Motors, M Series |
| FL Amps | 4-3.8/1.9 |
| FL Efficiency | 84 |
| Frame | 143TC |
| Gross Weight | 56 lbs |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1 1/2, 1-1/2 |
| Hz | 60 |
| Includes | Conduit Box |
| Insulation Class | F |
| Inverter Duty | Yes, No |
| Item | General Purpose Motor |
| Item Number | CEM3583T |
| Length Less Shaft | 10 15/16 in |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 05C052X102G1 |
| Manufacturer Part Number | CEM3583T |
| Manufacturers Warranty Length | 3 yr |
| Maximum Ambient Temperature | 40? C |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, C-Face/Rigid |
| Mounting Type | C-Face Footed |
| Nameplate RPM | 3,500 |
| NEMA Frame | 143TC |
| Net Weight | 56 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 415 VAC, 480 VAC |
| Number of Speeds | 1 |
| Overall Length | 13.03 ", 13 in, 13.03" |
| Overload Protection | None |
| Part Number | CEM3583T |
| Phase | 3, 3 Phase |
| Product Series | M |
| Product Type | General Purpose, Three Phase |
| Rotation | Reversible |
| RPM | 3500, 3500 RPM, 3400 - 3600, 3,600 RPM |
| RPM Range | 3,001-3,600 |
| Series | Super-E Series |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8 in |
| Shaft Diameter | 0.875" |
| Shaft Length | 2 3/16 in |
| Ship Weight | 55 lbs. |
| Speed (RPM) | 3500 |
| Standards | CSA, CSA EEV, UR |
| UPC Code | 781568134184 |
| Voltage | 208V, 230V, 460V, 208-230/460V AC, 230/460 |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
| Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | electricmotorwholesale.com | CEM3583T | 725.82 | 725.82 | 1 | In Stock | Baldor | 55.0 | 725.82 @ Qty: 1+ | |
 | Purvis | CEM3583T | 954.71 | 954.71 | 1 | In Stock | Baldor-Reliance | 954.71 @ Qty: 1+ | ||
 | emotorpro.com | CEM3583T | 965.76 | 965.76 | 1 | In Stock | Baldor | 55.0 | 965.76 @ Qty: 1+ | |
 | Walker Industrial | CEM3583T | 1068.61 | 1068.61 | 1 | In Stock | Baldor | 1068.61 @ Qty: 1+ | ||
 | galesburgelectric.com | CEM3583T | 1068.61 | 1068.61 | 1 | In Stock | Baldor | 1068.61 @ Qty: 1+ | ||
 | Galco | CEM3583T-BLDR | 1068.61 | 1068.61 | 1 | In Stock | Baldor | 56.0 | 1068.61 @ Qty: 1+ | |
 | Global Industrial | WBB388909 | 1070.0 | 1070.0 | 1 | In Stock | Baldor-Reliance | 1070.0 @ Qty: 1+ | ||
| motorsandcontrol.com | CEM3583T | 1113.13 | 1113.13 | 1 | In Stock | Baldor Reliance | 55.0 | 1113.13 @ Qty: 1+ | ||
 | Zoro | G7817205 | 1153.99 | 1153.99 | 1 | In Stock | Baldor-Reliance | 55.0 | 1153.99 @ Qty: 1+ | |
 | apexindustrialautomation.com | CEM3583T | 1233.02 | 1233.02 | 1 | 1 | Baldor-Reliance | 1233.02 @ Qty: 1+ | ||
| us.rs-online.com | 71943933 | 1234.86 | 1234.86 | 1 | In Stock | Baldor-Reliance | 1234.86 @ Qty: 1+ | |||
 | pumpproducts.com | CEM3583T | 1265.0 | 1265.0 | 1 | In Stock | Baldor | 1265.0 @ Qty: 1+ | ||
| kirbyrisk.com | 2348796 | 1401.16 | 1401.16 | 1 | In Stock | Baldor | 1401.16 @ Qty: 1+ | |||
 | sustainablesupply.com | C1489188 | 1462.65 | 1462.65 | 1 | In Stock | Baldor Electric | 55.0 | 1462.65 @ Qty: 1+ | |
 | Raptor Supplies | AJ6PNZ | 1709.3555505 | 1709.3555505 | 1 | In Stock | BALDOR MOTOR | 1709.3555505 @ Qty: 1+ |
