Baldor-Reliance CEM3614T
Baldor-Reliancezoom

Baldor-Reliance CEM3614T

mpn:
CEM3614T
brand:
Baldor
manufacturer:
Baldor
MPN:
CEM3614T
Description:
CEM3614T 2HP1170RPM3PH60HZ184TC3640MTE FCF1
Weight:
87.0
Weight:
6.0625 LB
Preferred Price:
1381.9
Price:
1381.9
Min Simple Price:
780.74
Absolute Min Price:
1108.65
Min Price:
1108.65
Dimensions:
[19.0, 13.0, 11.0]
qty:
21
simpleSku:
Mzg5Nw:::CEM3614T
sku:
Mzg5Nw::JB:CEM3614T@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
baldor-reliance
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Amps3.5/7/7
Application, Product TypeGeneral Purpose
Bearings, Motor BearingsBall
Capacitor Required, Usable @ 200VNo
CC NumberCC010A
Comments, Frequency60 Hz
Composition, Enclosure Material, Motor Frame MaterialSteel
Construction, Frame MaterialRolled steel
Country of Origin (subject to change)United States
Drive End Flange TypeC-Face
Duty, Duty CycleContinuous
Efficiency88.5%
Efficiency %, Nominal Efficiency88.5 %
EnclosureTotally Enclosed Fan Cooled
Enclosure TypeTEFC (Totally Enclosed Fan Cooled)
Enclosure, Enclosure TypeTEFC
Estimated Weight97.00
Family NameThree Phase Enclosed Family
Family SeriesBaldor Motors
FL Amps7/3.5
FL Efficiency88.5
Frame, NEMA Frame184TC
Full Load Amps7.0/3.5
Green Certification or Other RecognitionNEMA Premium(R) Rated
Gross Weight, Net Weight0 lbs
Hertz, Hz60
Horsepower2 hp
HP2
IncludesConduit Box
Ins. Class, Insulation ClassF
Inverter Duty, Inverter Rated, Usable @ 208VYes
ItemGeneral Purpose Motor
Item Number, Manufacturer Part Number, Part NumberCEM3614T
Length Less Shaft15 5/16 in
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #36A002S917G1
Manufacturers Warranty Length3 yr
Max. Ambient Temp.40 Degrees C
Maximum Ambient Temperature40? C
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor, Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingC-Face/Rigid
Mounting TypeFooted
Mounting, Mounting TypeFoot Mount
Nameplate RPM1,175
NEMA DesignA
No. of Speeds, Number of Speeds1
Nominal Voltage, Voltage (AC)208 VAC
Overall Length18.05", 18 1/16 in
Phase3, Three, 3 Phase
Product TypeThree Phase
RotationReversible
RPM1175 RPM, 1,175 RPM
RPM Group1101-1200
RPM Range1,101-1,200
RPM, Speed (RPM)1175
SeriesGE3 Series
Shaft Dia.1 1/8 in
Shaft Diameter1.125"
Shaft Length2 3/4 in
Ship Weight97 lbs.
StandardsCSA, CSA EEV, UR
UPC Code781568537480
Voltage208V, 230V, 460V, 208-230/460V AC
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Voltage, Volts230/460
Weight97 lb

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomelectricmotorwholesale.comCEM3614T780.74780.741In StockBaldor97.0780.74 @ Qty: 1+
thumbzoomMRO Supply699264984.99984.991In StockBaldor984.99 @ Qty: 1+
thumbzoomwilliamsautomation.comCEM3614T1000.01000.01In StockBALDOR1000.0 @ Qty: 1+
thumbzoomemotorpro.comCEM3614T1038.551038.551In StockBaldor97.01038.55 @ Qty: 1+
thumbzoomGlobal IndustrialWBB9095271149.01149.01In Stock15Baldor-Reliance1149.0 @ Qty: 1+
thumbzoomGalcoCEM3614T-BLDR1149.161149.161In StockBaldor1149.16 @ Qty: 1+
thumbzoomWalker IndustrialCEM3614T1149.161149.161In StockBaldor1149.16 @ Qty: 1+
thumbzoomZoroG81158251169.01169.01In Stock26Baldor-Reliance91.01169.0 @ Qty: 1+
motorsandcontrol.comCEM3614T1197.041197.041In StockBaldor Reliance97.01197.04 @ Qty: 1+
thumbzoomPurvisCEM3614T1212.141212.141In StockBaldor-Reliance1212.14 @ Qty: 1+
thumbzoompumpproducts.comCEM3614T1360.331360.331In StockBaldor1360.33 @ Qty: 1+
cbtcompany.comCEM3614T1361.761361.761In StockBaldor Reliance1361.76 @ Qty: 1+
us.rs-online.com719439481465.171465.171In StockBaldor-Reliance1465.17 @ Qty: 1+
kirbyrisk.com23842531506.771506.771In StockBaldor1506.77 @ Qty: 1+
thumbzoomsustainablesupply.comC27573851726.231726.231In StockBaldor Electric91.01726.23 @ Qty: 1+
motionindustries.com044953381820.151820.151In StockBaldor-Reliance1820.15 @ Qty: 1+
thumbzoomRaptor SuppliesAJ6PPR1905.29404651905.29404651In StockBALDOR MOTOR1905.2940465 @ Qty: 1+
B08KHPNMJB
Baldor-Reliance CEM3614T

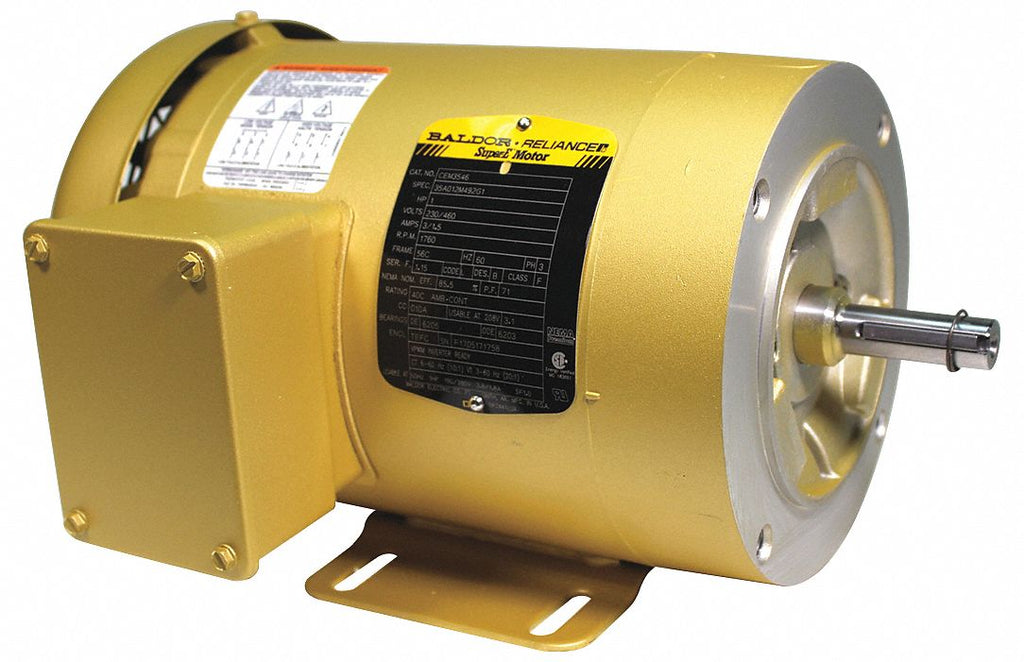

Baldor-Reliance CEM3614T General Purpose Motor - 3 ph, 2 hp, 1200 rpm, 208-230/460 V, 184TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Footed/C-Face Flange Mount, 1175 rpm Base RPM

Baldor-Reliance CEM3614T General Purpose Motor - 3 ph, 2 hp, 1200 rpm, 208-230/460 V, 184TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Footed/C-Face Flange Mount, 1175 rpm Base RPMzoom
