mpn:
brand:
manufacturer:
MPN:
Description:

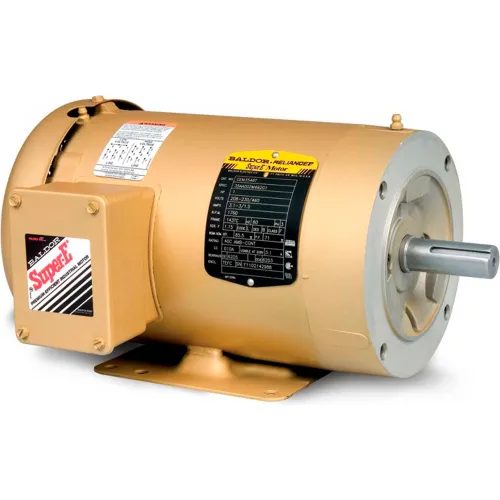

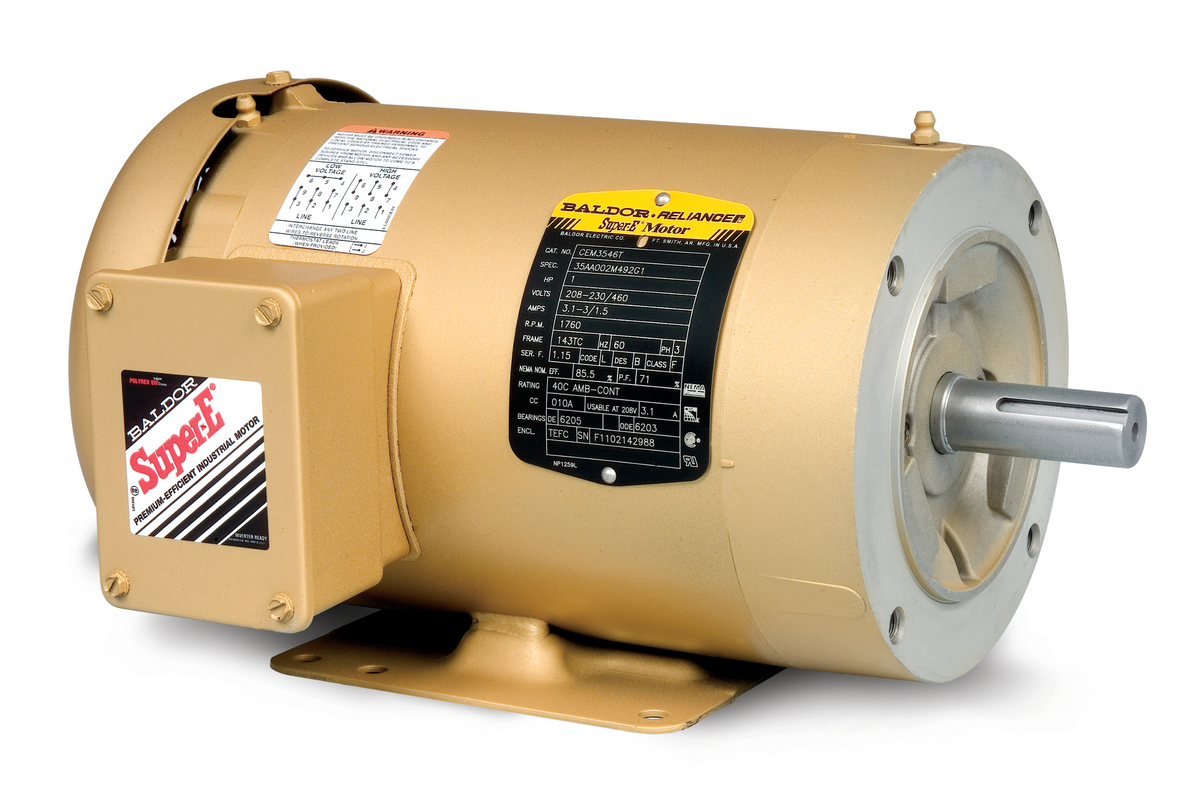

Shop Baldor CEM3709T and trust MRO to be your reliable Baldor supplier to experience the difference that quality and expertise can make. Trusted since 1898. Fast, Free Shipping.
Weight:
120.0
Weight:
120.0 LB
Preferred Price:
1998.71
Price:
1998.71
Min Simple Price:
1129.22
Absolute Min Price:
1603.49
Min Price:
1603.49
Dimensions:
[19.0, 13.0, 13.0]
qty:
21
simpleSku:
jkwNTE:::CEM3709T
sku:
jkwNTE::3Q:CEM3709T@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
baldor
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Amps | 18/19/9 |
| Application | General Purpose |
| Bearing Type | Ball |
| Bearings | Ball |
| Capacitor Required | No |
| CC Number | CC010A |
| Composition | Steel |
| Construction | Rolled steel |
| Country of Origin (subject to change) | United States |
| Drive End Flange Type | C-Face |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Efficiency % | 89.5 % |
| Enclosure | TEFC, Totally Enclosed Fan Cooled |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled), TEFC |
| Estimated Weight | 120.00 |
| Family Name | Three Phase Enclosed Family |
| Family Series | Baldor Motors, M Series |
| FL Amps | 19.4-18/9 |
| FL Efficiency | 89.5 |
| Footnotes | 1,30 |
| Frame | 213TC |
| Frame Material | Rolled steel |
| Full Load Amps | 18.0/9.0 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
| Gross Weight | 120 lbs |
| Hertz | 60 |
| Horsepower | 7-1/2 hp |
| HP | 7 1/2, 7-1/2, 7.5 |
| Hz | 60 |
| Includes | Conduit Box |
| Ins. Class | F |
| Insulation Class | F |
| Inverter Duty | Yes, No |
| Inverter Rated | Yes |
| Item | General Purpose Motor |
| Item Number | CEM3709T |
| Length Less Shaft | 15 1/2 in |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 37G814L869G1 |
| Manufacturers Warranty Length | 3 yr |
| Max. Ambient Temp. | 40 Degrees C |
| Maximum Ambient Temperature | 40? C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | NEMA Premium Efficient |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot Mount, C-Face/Rigid |
| Mounting Type | Footed, C-Face Footed |
| Nameplate RPM | 3,520 |
| NEMA Design | A |
| NEMA Frame | 213TC |
| Net Weight | 118 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 89.5 % |
| Nominal Voltage | 208 VAC, 240 VAC, 415 VAC, 480 VAC |
| Number of Speeds | 1 |
| Overall Length | 18.63", 18 5/8 in, 18.63 " |
| Overload Protection | None |
| Part Number | CEM3709T |
| Phase | 3, Three, 3 Phase |
| Product Series | M |
| Product Type | General Purpose, Three Phase |
| Rotation | Reversible |
| RPM | 3400 - 3600, 3520 RPM, 3520, 3,600 RPM |
| RPM Group | 3001-3600 |
| RPM Range | 3,001-3,600 |
| Series | GE3 Series |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8 in |
| Shaft Diameter | 1.375" |
| Shaft Length | 3 3/16 in |
| Ship Weight | 120 lbs. |
| Speed (RPM) | 3520 |
| Standards | CSA, CSA EEV, UR |
| UPC Code | 781568541449 |
| Usable @ 200V | No |
| Usable @ 208V | Yes |
| Voltage | 208V, 230V, 460V, 230/460V AC, 230/460 |
| Voltage (AC) | 230 VAC, 460 VAC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Volts | 230/460 |
| Weight | 120 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | electricmotorwholesale.com | CEM3709T | 1129.22 | 1129.22 | 1 | In Stock | Baldor | 120.0 | 1129.22 @ Qty: 1+ | |
 | MRO Supply | 2484675 | 1424.63 | 1424.63 | 1 | In Stock | Baldor | 1424.63 @ Qty: 1+ | ||
 | emotorpro.com | CEM3709T | 1502.09 | 1502.09 | 1 | In Stock | Baldor | 120.0 | 1502.09 @ Qty: 1+ | |
 | midwestapplianceparts.com | CEM3709T-BM-P | 1506.14 | 1506.14 | 1 | In Stock | Baldor | 1506.14 @ Qty: 1+ | ||
 | Galco | CEM3709T-BLDR | 1662.07 | 1662.07 | 1 | In Stock | Baldor | 120.0 | 1662.07 @ Qty: 1+ | |
 | Walker Industrial | CEM3709T | 1662.07 | 1662.07 | 1 | In Stock | Baldor | 1662.07 @ Qty: 1+ | ||
 | Zoro | G8109814 | 1690.0 | 1690.0 | 1 | In Stock | 26 | Baldor-Reliance | 120.0 | 1690.0 @ Qty: 1+ |
 | Global Industrial | WBB909049 | 1699.0 | 1699.0 | 1 | In Stock | Baldor-Reliance | 1699.0 @ Qty: 1+ | ||
| motorsandcontrol.com | CEM3709T | 1731.31 | 1731.31 | 1 | In Stock | Baldor Reliance | 120.0 | 1731.31 @ Qty: 1+ | ||
 | Purvis | CEM3709T | 1753.17 | 1753.17 | 1 | In Stock | Baldor-Reliance | 1753.17 @ Qty: 1+ | ||
 | pumpproducts.com | CEM3709T | 1967.17 | 1967.17 | 1 | In Stock | Baldor | 1967.17 @ Qty: 1+ | ||
| cbtcompany.com | CEM3709T | 1969.55 | 1969.55 | 1 | In Stock | Baldor Reliance | 1969.55 @ Qty: 1+ | |||
| us.rs-online.com | 71943963 | 2077.59 | 2077.59 | 1 | In Stock | Baldor-Reliance | 2077.59 @ Qty: 1+ | |||
| kirbyrisk.com | 2420387 | 2179.29 | 2179.29 | 1 | In Stock | Baldor | 2179.29 @ Qty: 1+ | |||
 | sustainablesupply.com | C2757366 | 2390.97 | 2390.97 | 1 | In Stock | Baldor Electric | 120.0 | 2390.97 @ Qty: 1+ | |
| motionindustries.com | 04495332 | 2632.57 | 2632.57 | 1 | In Stock | Baldor-Reliance | 2632.57 @ Qty: 1+ | |||
 | Raptor Supplies | AJ6PQH | 2725.149609 | 2725.149609 | 1 | In Stock | BALDOR MOTOR | 2725.149609 @ Qty: 1+ |
