Baldor-Reliance IDM3770T-5

B0847TKSVY

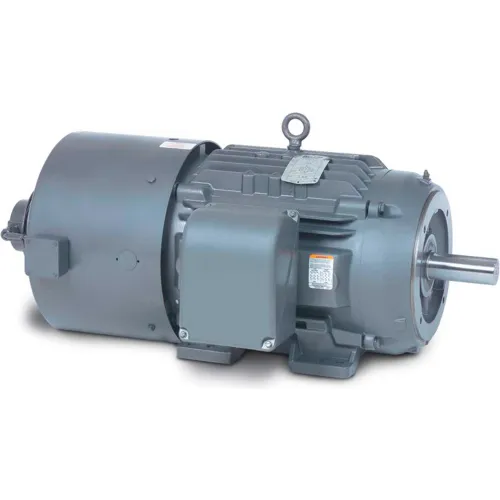

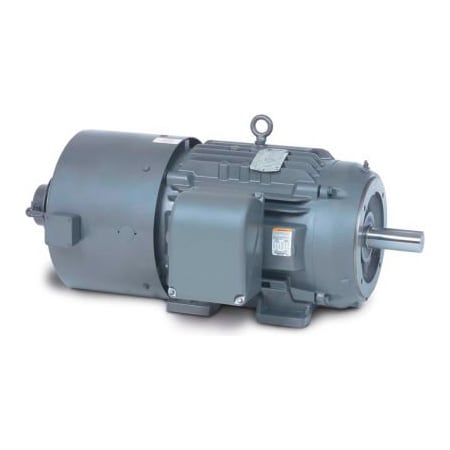

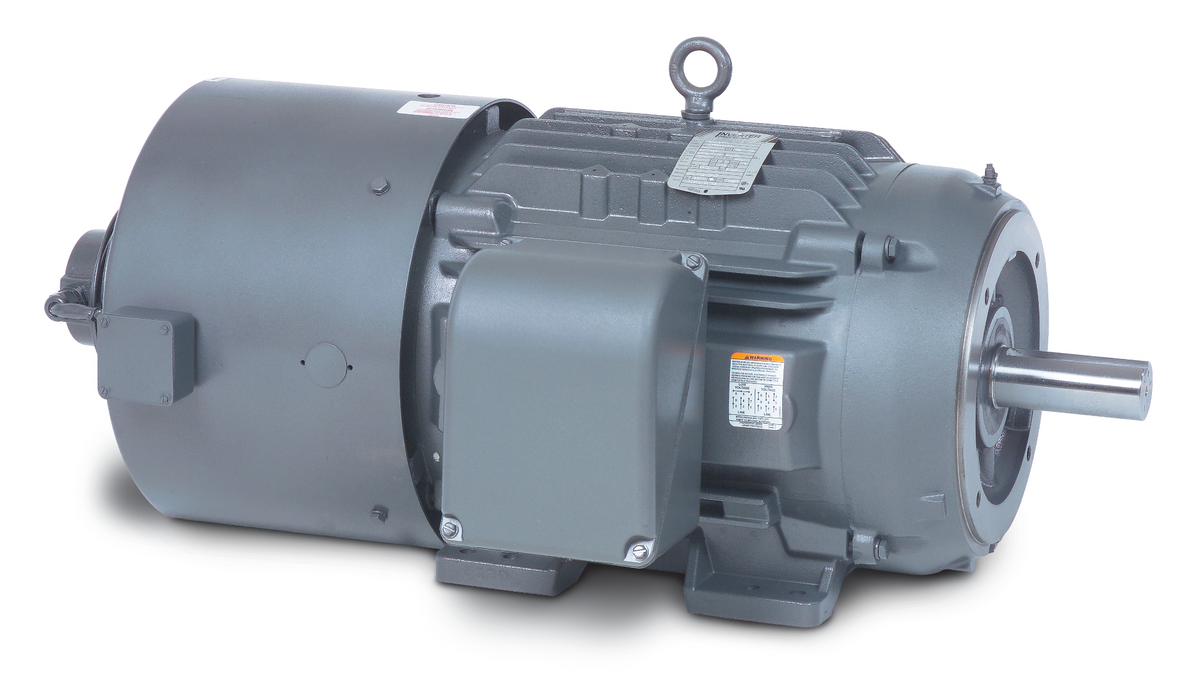

Baldor-Reliance IDM3770T-5 Continuous Duty Type 0738M AC Motor

Baldor-Reliance IDM3770T-5 Continuous Duty Type 0738M AC Motorzoom

Attributes

Key Value
Amps7.5
ApplicationVariable Speed AC
BearingsBall
Comments60 Hz
CompositionCast Iron
ConstructionCast Iron
Country of Origin (subj.United States
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency91.7%
Efficiency %91.7 %
EnclosureTotally Enclosed Blower.
Enclosure MaterialIron
Enclosure TypeTEBC (Totally Enclosed .
Estimated Weight170.00
Family NameVariable Speed AC Family
Family SeriesBaldor Motors
FL Amps7.5
FL Efficiency91.7
Frame213TC
Frame Type213TC
Frequency60 Hz
Gross Weight170 lbs
Hertz60
Horsepower7-1/2 hp
Horsepower Rating7.5 HP
HP7-1/2, 7.5
Hz60
Insulation ClassH
Inverter DutyYes
Item NumberIDM3770T-5
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #07D515X817G1
Manufacturer Part NumberIDM3770T-5
Maximum Ambient Tempera.40? C
MountingFoot Mount, C-Face/Rigid
Mounting TypeFoot Mount, Footed / Fl.
NEMA Frame213TC
Net Weight170 lbs
Nominal Voltage575 VAC, 600 VAC
Number of Speeds1
Overall Length25.58"
Part NumberIDM3770T-5
Phase3, 3 Phase
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1700 - 1800, 1,770 RPM,.
SeriesVS Master Series
Service Factor1, 1.00
Shaft Diameter1.375"
Ship Weight170 lbs.
Special FeaturesEncoder Ready ; Inverte.
Speed (RPM)1770
Supply Voltage575 VAC
UPC Code781568184417
Voltage575V, 575
Voltage (AC)575 VAC
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comIDM3770T-52320.381In StockBaldor2320.38 @ 1
AmazonTPB007ZQP5GG2576.171In Stock3Baldor Electric2576.17 @ 1
thumbzoomGlobal IndustrialWBB3891123509.01In StockBaldor-Reliance3509.0 @ 1
thumbzoomWalker IndustrialIDM3770T-53509.831In StockBaldor3509.83 @ 1
thumbzoomGalcoIDM3770T-5-BLDR3509.831In StockBaldor170.03509.83 @ 1
motorsandcontrol.comIDM3770T-53656.061In StockBaldor Reliance170.03656.06 @ 1
factorysupplyoutlet.comFH76AF3781.141In StockBaldor-Reliance3781.14 @ 1
thumbzoomemotorpro.comIDM3770T-53786.331In StockBaldor170.03786.33 @ 1
thumbzoomapexindustrialautomation.comIDM3770T-54049.811Baldor-Reliance4049.8 @ 1
us.rs-online.com719351254055.911In StockBaldor-Reliance4055.91 @ 1
motionindustries.com005365155467.811In StockBaldor-Reliance5467.81 @ 1
thumbzoompumpproducts.comIDM3770T-56130.671In StockBaldor6130.67 @ 1
thumbzoomZoroG5049344406371.91In StockBaldor-Reliance6371.9 @ 1
thumbzoomRaptor SuppliesAJ6WHM9281.43537751In StockBALDOR MOTOR9281.4353775 @ 1
