- mpnM3542-5
- brandname: Baldor
- manufacturername: Baldor

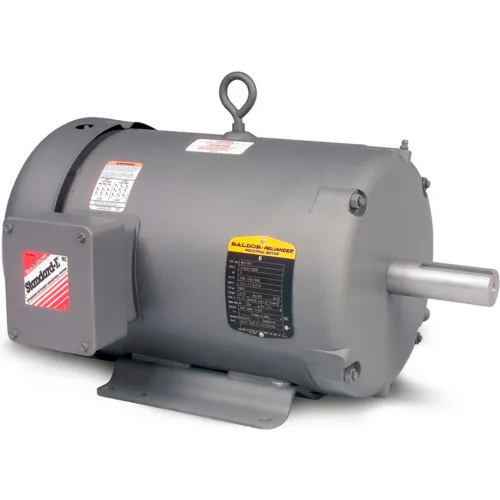

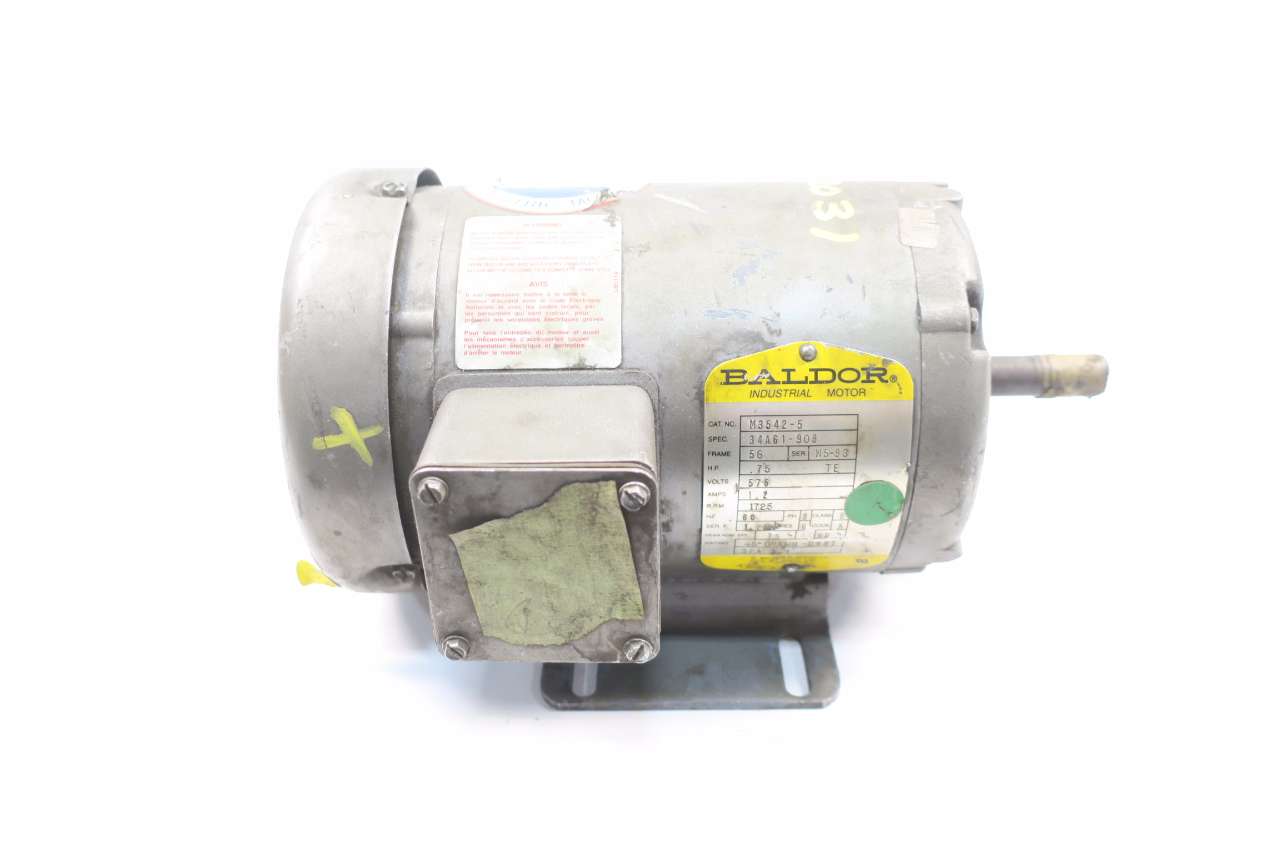

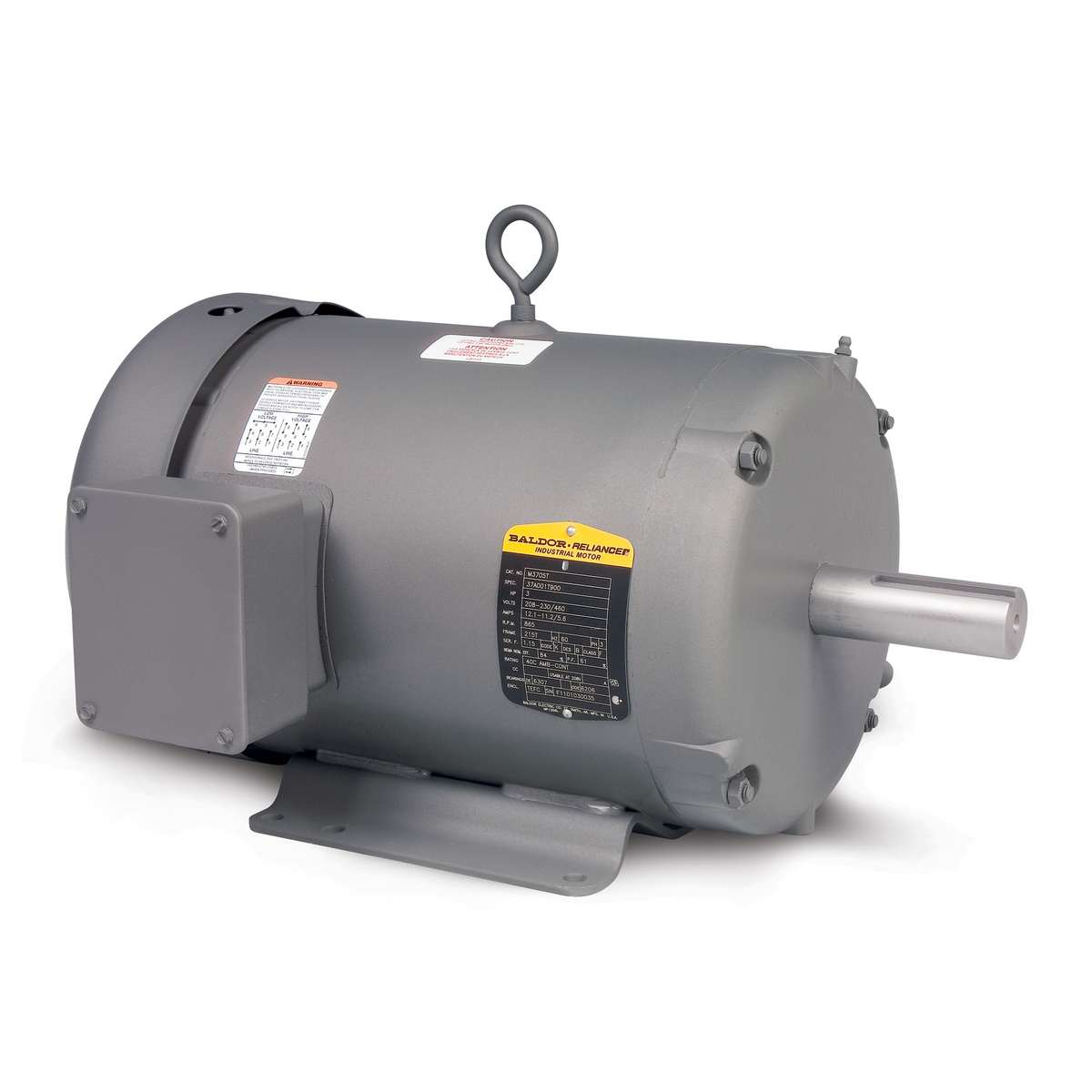

Baldor M3542-5 200 & 575 Volt Motor
- Brand: Baldor
- PartNumber: M3542-5
- Manufacturer: Baldor
- Label: Baldor
Attributes
| Key | Value |
|---|
| Amps | 1.2 |
| Application | General Purpose |
| Bearings | Ball |
| Comments | 60 Hz |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 75.5% |
| Efficiency % | 75.5 % |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 26.00 |
| Family Name | Three Phase Enclosed Fa. |
| Family Series | Baldor Motors |
| FL Amps | 1.2 |
| FL Efficiency | 75.5 |
| Frame | 56 |
| Frequency | 60 Hz |
| Gross Weight | 26 lbs |
| Hertz | 60 |
| Horsepower | 3/4 hp |
| HP | 3/4, 0.75 |
| Hz | 60 |
| Insulation Class | B |
| Item Number | M3542-5 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 34A61-908 |
| Manufacturer Part Number | M3542-5 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Foot Mount, Rigid |
| Mounting Type | Foot Mount, Footed |
| NEMA Frame | 56 |
| Net Weight | 26 lbs |
| Nominal Voltage | 575 VAC, 600 VAC |
| Number of Speeds | 1 |
| Overall Length | 11.35" |
| Package Quantity | 1 |
| Part Number | M3542-5 |
| Phase | 3, 3 Phase |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1725 RPM, 1700 - 1800, . |
| Series | GE3 Series |
| Service Factor | 1.25 |
| Shaft Diameter | 0.625" |
| Ship Weight | 26 lbs. |
| Speed (RPM) | 1725 |
| UPC Code | 781568117521 |
| Voltage | 575V, 575 |
| Voltage (AC) | 575 VAC |
| Volts | 575 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | NRI Industrial | D576687 | 144.23 | 1 | In Stock | | BALDOR | | 144.23 @ 1 |
| AmazonTP | B007ZQN2JI | 301.1 | 1 | In Stock | 3 | Baldor Electric Company | | 301.1 @ 1 |
| AmazonUNK | B007ZQN2JI | 301.1 | 1 | In Stock | | Baldor Electric Company | | 301.1 @ 1 |
 | emotorpro.com | M3542-5 | 389.6 | 1 | In Stock | | Baldor | 26.0 | 389.6 @ 1 |
 | Global Industrial | WBB391477 | 429.95 | 1 | In Stock | | Baldor-Reliance | | 429.95 @ 1 |
| factorysupplyoutlet.com | VU37YH | 430.02 | 1 | In Stock | | Baldor-Reliance | | 430.02 @ 1 |
 | Walker Industrial | M3542-5 | 431.09 | 1 | In Stock | | Baldor | | 431.09 @ 1 |
 | Galco | M3542-5-BLDR | 431.09 | 1 | In Stock | | Baldor | 26.0 | 431.09 @ 1 |
| motorsandcontrol.com | M3542-5 | 449.05 | 1 | In Stock | | Baldor Reliance | 26.0 | 449.05 @ 1 |
| us.rs-online.com | 71944322 | 498.14 | 1 | In Stock | | Baldor-Reliance | | 498.14 @ 1 |
| cbtcompany.com | M3542-5 | 510.85 | 1 | In Stock | | Baldor Reliance | | 510.85 @ 1 |
 | pumpproducts.com | M3542-5 | 511.5 | 1 | In Stock | | Baldor | | 511.5 @ 1 |
 | Zoro | G804934058 | 727.99 | 1 | In Stock | | Baldor-Reliance | | 727.99 @ 1 |
 | Raptor Supplies | AJ6XJE | 1284.0027525 | 1 | In Stock | | BALDOR MOTOR | | 1284.0027525 @ 1 |
