- mpnVEM3554T-5
- brandname: Baldor
- manufacturername: Baldor

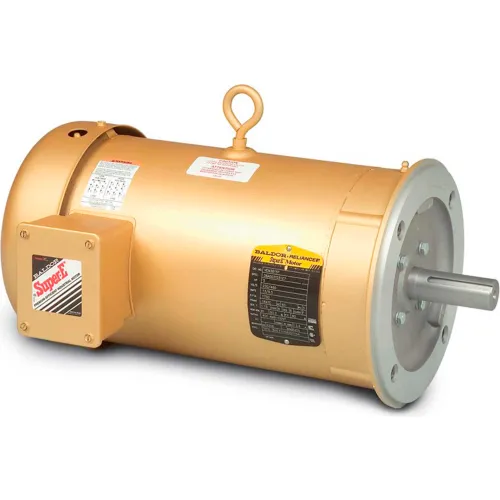

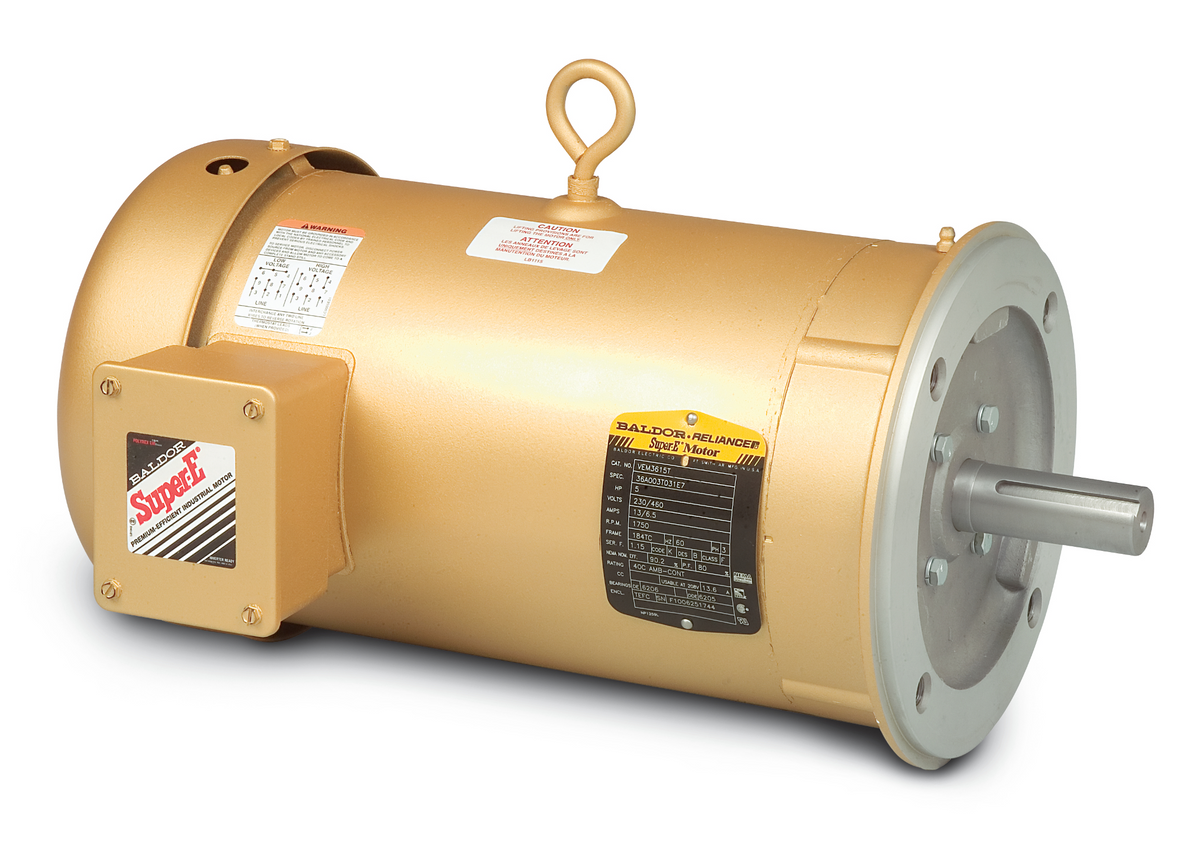

Baldor VEM3554T-5, 1.5 HP, 3 PH, 145TC Frame, 1760 RPM, C-Face Mount, TEFC, 575 Volts
- Brand: Baldor
- PartNumber: VEM3554T-5
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Baldor
- Label: Baldor
Attributes
| Key | Value |
|---|
| Amps | 1.8 |
| Application | General Purpose |
| Bearings | Ball |
| Comments | 60 Hz |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Efficiency % | 86.5 % |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 41.00 |
| Family Name | Three Phase Enclosed Fa. |
| Family Series | Baldor Motors |
| FL Amps | 1.8 |
| FL Efficiency | 86.5 |
| Frame | 145TC |
| Frequency | 60 Hz |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 1-1/2 hp |
| HP | 1.5, 1-1/2 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| Item Number | VEM3554T-5 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 35AA003M887G1 |
| Manufacturer Part Number | VEM3554T-5 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | C-Face, Footless |
| Mounting Type | Footless |
| NEMA Frame | 145TC |
| Net Weight | 0 lbs |
| Nominal Voltage | 575 VAC, 600 VAC |
| Number of Speeds | 1 |
| Overall Length | 13.29" |
| Part Number | VEM3554T-5 |
| Phase | 3, 3 Phase |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1760 RPM, 1760, 1700 - . |
| Series | GE3 Series |
| Service Factor | 1.15 |
| Shaft Diameter | 0.875" |
| Ship Weight | 41 lbs. |
| Speed (RPM) | 1760 |
| UPC Code | 781568550816 |
| Voltage | 575V, 575 |
| Voltage (AC) | 575 VAC |
| Volts | 575 |
