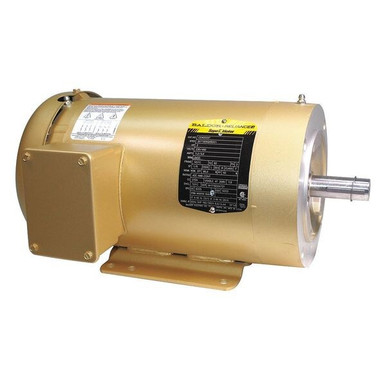

Baldor Electric CEM3559T
Baldor Electriczoom

Baldor Electric CEM3559T

mpn:
CEM3559T
brand:
Baldor-Reliance
manufacturer:
Baldor-Reliance
MPN:
CEM3559T
Description:
Baldor-Reliance's extensive line of General Purpose motors are available in Open Drip-proof and TEFC construction in both single and three phase. Horsepower sizes available from stock range from 1/12 HP through 1500 HP. Designed for General purpose use means that these motors can be used in applications which include compressors, pumps, fans, conveyors, material handling, machine tools and many others.<br><br><b>Features</b><ul style=Margin-top:0px;padding-top: 5px: padding-bottom: 5px;><li>Pressure cast aluminum end plates with ribbed design for rigidity</li><li>Ball bearings</li><li>Locked drive end bearing</li><li>Heavy gauge steel frame</li></ul><b>Application(s)</b><ul style=Margin-top:0px;padding-top: 5px: padding-bottom: 5px;><li>Pumps, fans, conveyors, machine tools, gear reducers.</li></ul>
Weight:
3.25625
Weight:
52.0 LB
Preferred Price:
826.23
Min Offer Price:
1372.95
Price:
826.23
Min Simple Price:
466.8
Absolute Min Price:
662.85
Min Price:
662.85
Dimensions:
[20.0, 14.0, 12.0]
qty:
21
simpleSku:
OTA0Mg:::CEM3559T
sku:
OTA0Mg::MP:CEM3559T@y0
condition:
11
seller:
AmazonTP
amzMan:
baldor electric
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Amps7.9/7.2/3.6
Application, Product TypeGeneral Purpose
Bearings, Motor BearingsBall
BrandBaldor-Reliance
Capacitor Required, International Shipping, Usable @ 200VNo
CC NumberCC010A
ColorGold
Comments, Frequency60 Hz
Composition, ConstructionCast Iron
Country of Origin (subject to change)United States
Current Stock9
Drive End Flange TypeC-Face
Duty, Duty CycleContinuous
Efficiency86.5%
Efficiency %, Nominal Efficiency86.5 %
EnclosureTotally Enclosed Fan Cooled
Enclosure Material, Motor Frame MaterialSteel
Enclosure TypeTEFC (Totally Enclosed Fan Cooled)
Enclosure, Enclosure TypeTEFC
Estimated Weight52.00
Family SeriesBaldor Motors
FL Amps7.9-7.2/3.6
FL Efficiency86.5
Footnotes, No. of Speeds, Number of Speeds1
Frame143TC
Frame MaterialRolled steel
Frame, NEMA Frame145TC
Full Load Amps7.2/3.6
Green Certification or Other RecognitionNEMA Premium(R) Rated
Gross Weight, Net Weight0 lbs
Hertz, Hz60
Horsepower3 hp
HP, Phase3
IncludesConduit Box
Ins. Class, Insulation ClassF
Inverter Duty, Inverter Rated, Usable @ 208VYes
ItemGeneral Purpose Motor
Item Number, Mpn, Part NumberCEM3559T
Lead TimeExpected to ship in 1-2 business days
Length Less Shaft12 1/16 in
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #35TT856Q060G1
Manufacturers Warranty Length3 yr
Max. Ambient Temp.40 Degrees C
Maximum Ambient Temperature40? C
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Cooled
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor, Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingC-Face/Rigid
Mounting, Mounting TypeFoot Mount
Nameplate RPM3,450
NEMA DesignB
Nominal Voltage, Voltage (AC)208 VAC
Overall Length14.17", 14 3/16 in
Phase3 Phase, Three
Product TypeThree Phase
RotationReversible
RPM3450 RPM, 3,450 RPM
RPM Group3001-3600
RPM Range3,001-3,600
RPM, Speed (RPM)3450
SeriesSuper-E Series
Shaft Dia.7/8 in
Shaft Diameter0.875"
Shaft Length2 3/16 in
Ship Weight52 lbs.
SKUZO-G8391643
StandardsCSA, CSA EEV, UR
SubCategoryMotors/Ac Motors
UPC, UPC Code781568542859
Voltage208V, 230V, 460V, 208-230/460V AC
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Voltage, Volts230/460
Weight52 lb

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
AmazonTPB00AED62XW466.8466.81In Stock2Baldor466.8 @ Qty: 1+
thumbzoomelectricmotorwholesale.comCEM3559T639.94639.941In StockBaldor639.94 @ Qty: 1+
thumbzoomMRO Supply699257807.52807.521In StockBaldor807.52 @ Qty: 1+
thumbzoomemotorpro.comCEM3559T851.43851.431In StockBaldor52.0851.43 @ Qty: 1+
thumbzoommidwestapplianceparts.comCEM3559T-BM-P896.87896.871In StockBaldor896.87 @ Qty: 1+
thumbzoomGalcoCEM3559T-BLDR935.87935.871In StockBaldor935.87 @ Qty: 1+
thumbzoomWalker IndustrialCEM3559T942.11942.111In StockBaldor942.11 @ Qty: 1+
motorsandcontrol.comCEM3559T981.36981.361In StockBaldor Reliance52.0981.36 @ Qty: 1+
thumbzoomPurvisCEM3559T993.54993.541In StockBaldor-Reliance993.54 @ Qty: 1+
thumbzoomGlobal IndustrialWBB9094951009.01009.01In Stock15Baldor-Reliance1009.0 @ Qty: 1+
thumbzoompumpproducts.comCEM3559T1114.671114.671In StockBaldor1114.67 @ Qty: 1+
cbtcompany.comCEM3559T1116.41116.41In StockBaldor Reliance1116.4 @ Qty: 1+
us.rs-online.com719439291177.631177.6311Baldor-Reliance1177.63 @ Qty: 1+
kirbyrisk.com24012831235.281235.281In StockBaldor1235.28 @ Qty: 1+
thumbzoomZoroG83916431353.081353.081In StockBaldor-Reliance52.11353.08 @ Qty: 1+
thumbzoomsimsupply.comZO-G83916431382.231382.2319Baldor-Reliance1382.23 @ Qty: 1+
thumbzoomsustainablesupply.comC28629281451.251451.251In StockBaldor Electric52.11451.25 @ Qty: 1+
motionindustries.com044953361491.91491.91In StockBaldor-Reliance1491.9 @ Qty: 1+
thumbzoomRaptor SuppliesAJ6PNV1637.0071381637.0071381In StockBALDOR MOTOR1637.007138 @ Qty: 1+
B07FN8M8MP
Baldor Electric CEM3559T

Baldor Electric, CEM3559T, 3HP, 3450RPM, 3PH, 460V;230V;208V, 145TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor

Baldor Electric, CEM3559T, 3HP, 3450RPM, 3PH, 460V;230V;208V, 145TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motorzoom
