- mpnCEUHM3546
- brandname: Baldor-Reliance
- manufacturername: Baldor-Reliance

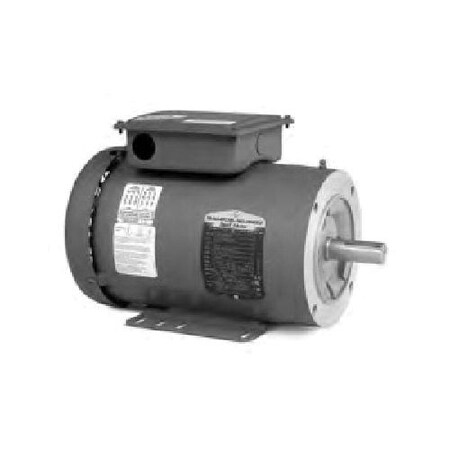

Baldor 1HP,1760RPM,3PH,60HZ,56C,3519M,TEFC,F3,N (CEUHM3546)
- Brand: Baldor
- PartNumber: CEUHM3546
- Manufacturer: ABB - BALDOR
- Label: ABB - BALDOR
Attributes
| Key | Value |
|---|
| Amps | 3.1/3/1.5 |
| Application | Unit Handling |
| Bearings | Ball |
| Comments | 60 Hz |
| Composition | Steel |
| Construction | Rolled Steel |
| Country of Origin (subj. | United States |
| Drive End Flange Type | C-Face |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency % | 85.5 % |
| Enclosure | TEFC, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEFC (Totally Enclosed . |
| Estimated Weight | 38.00 |
| Family Name | Three Phase Enclosed Fa. |
| Family Series | Baldor Motors |
| FL Amps | 3/1.5 |
| FL Efficiency | 85.5 |
| Frame | 56C |
| Frequency | 60 Hz |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 1 hp |
| HP | 1 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| Item Number | CEUHM3546 |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 35X046G004G1 |
| Manufacturer Part Number | CEUHM3546 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Foot Mount, C-Face/Rigid |
| Mounting Type | Foot Mount |
| NEMA Frame | 56C |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC |
| Number of Speeds | 1 |
| Overall Length | 12.23" |
| Part Number | CEUHM3546 |
| Phase | 3, 3 Phase |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1760 RPM, 1770, 1,760 R. |
| Series | UH3 Series |
| Service Factor | 1.15 |
| Shaft Diameter | 0.625" |
| Ship Weight | 38 lbs. |
| Speed (RPM) | 1760 |
| UPC Code | 781568784990 |
| Voltage | 230V, 460V |
| Voltage (AC) | 230 VAC |
| Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3328058 | 600.9 | 1 | In Stock | 1 | Baldor-Reliance | | 600.9 @ 1 |
 | emotorpro.com | CEUHM3546 | 629.61 | 1 | In Stock | | Baldor | 38.0 | 629.61 @ 1 |
| factorysupplyoutlet.com | SU60YQ | 689.7 | 1 | In Stock | | Baldor-Reliance | | 689.7 @ 1 |
 | Walker Industrial | CEUHM3546 | 696.67 | 1 | In Stock | 17 | Baldor | | 696.67 @ 1 |
 | Galco | CEUHM3546-BLDR | 696.67 | 1 | In Stock | | Baldor | | 696.67 @ 1 |
 | motorsandcontrol.com | CEUHM3546 | 725.69 | 1 | In Stock | | Baldor Reliance | 38.0 | 725.69 @ 1 |
 | pumpproducts.com | CEUHM3546 | 825.0 | 1 | In Stock | | Baldor | | 825.0 @ 1 |
| us.rs-online.com | 71943983 | 870.81 | 1 | In Stock | | Baldor-Reliance | | 870.81 @ 1 |
| motionindustries.com | 07003539 | 1004.5 | 1 | In Stock | | Baldor-Reliance | | 1004.5 @ 1 |
