Baldor-Reliance CEWDM3545

B08KHKV5S3

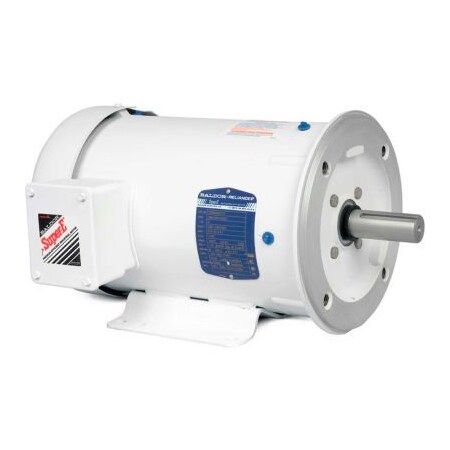

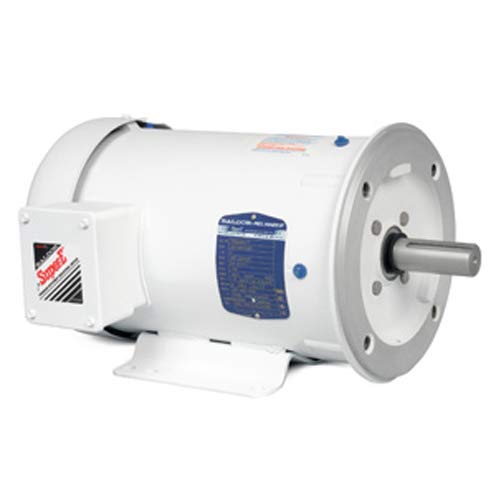

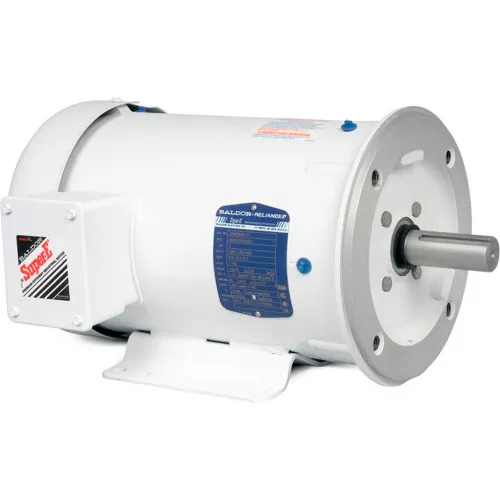

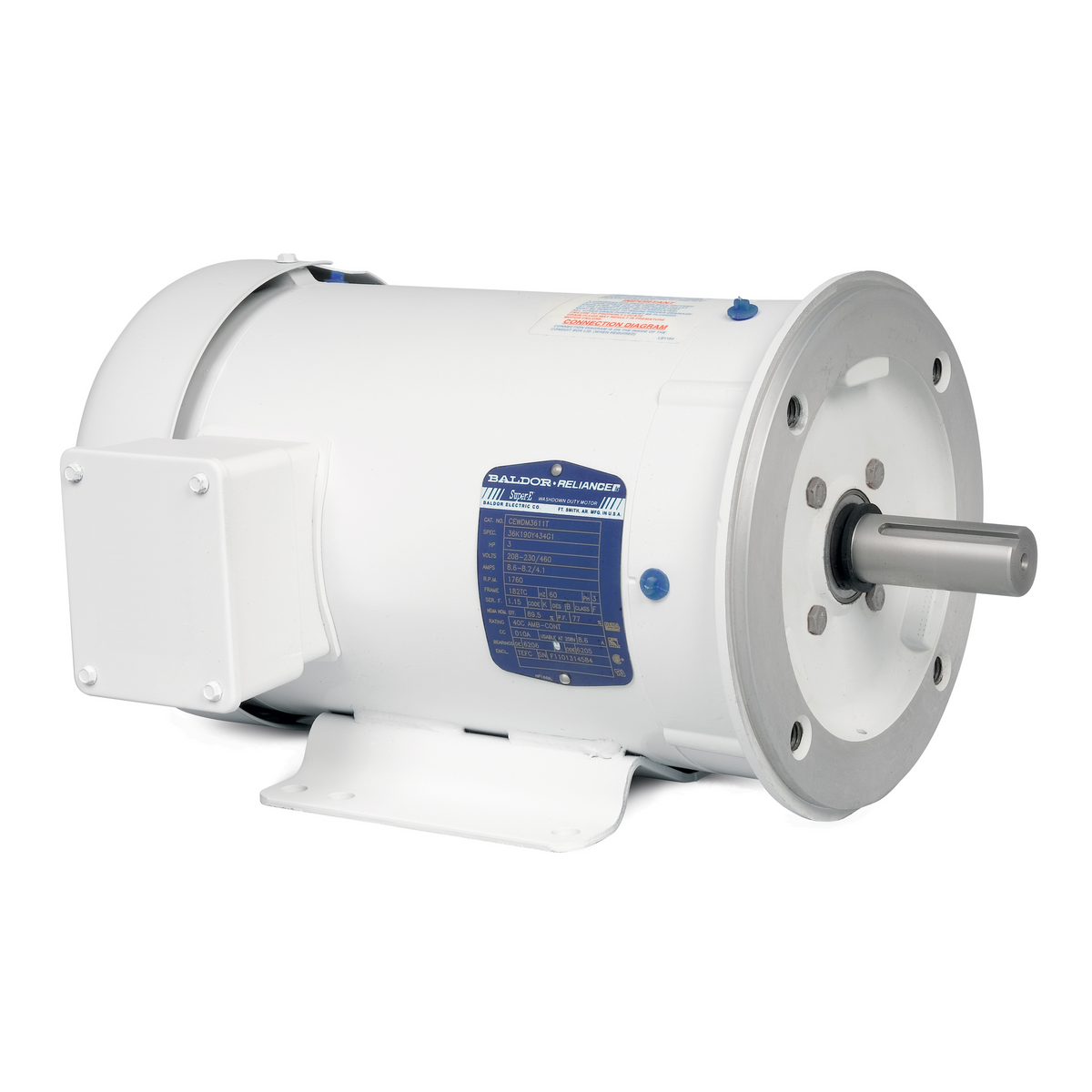

Baldor-Reliance CEWDM3545 General Purpose Washdown Duty Motor (Painted) - General Purpose Motor (Painted), 1 hp, 3 ph, 3600 rpm, 230/460 V

Baldor-Reliance CEWDM3545 General Purpose Washdown Duty Motor (Painted) - General Purpose Motor (Painted), 1 hp, 3 ph, 3600 rpm, 230/460 Vzoom

Attributes

Key Value
Amps2.8/3/1.4
Bearing TypeDouble Sealed
BearingsSealed
CompositionStainless Steel
ConstructionRolled Steel
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency77.0%
Efficiency %77 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight33.00
Family SeriesBaldor Motors, WDM Seri.
FL Amps2.8/1.4
FL Efficiency77
Frame56C
Gross Weight35 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassF
Inverter DutyYes, No
Item NumberCEWDM3545
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #35T986Y474G1
Manufacturer Part NumberCEWDM3545
Maximum Ambient Tempera.40? C
MountingFoot Mount, C-Face/Rigid
Mounting TypeC-Face Footed
NEMA Frame56C
Net Weight35 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Poles2
Number of Speeds1
Overall Length12.24", 12.24 "
Package Quantity1
Part NumberCEWDM3545
Phase3
Product SeriesWDM
Product TypeWashdown Duty, Three Ph.
RotationReversible
RPM3450, 3,600 RPM
Service Factor1.15, 1.25
Shaft Diameter0.625"
Ship Weight33 lbs.
Speed (RPM)3450
Voltage230V, 460V
Voltage (AC)230 VAC, 460 VAC
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comCEWDM3545731.461In StockBALDOR731.46 @ 1
AmazonTPB0042G79IY869.491In Stock10Baldor869.49 @ 1
thumbzoomMRO Supply25138922.961In StockBaldor922.96 @ 1
thumbzoomPurvisCEWDM3545962.111In StockBaldor-Reliance962.11 @ 1
thumbzoomgalesburgelectric.comCEWDM3545965.071In StockBaldor965.07 @ 1
thumbzoomemotorpro.comCEWDM3545973.151In StockBaldor33.0973.15 @ 1
factorysupplyoutlet.comBG89QE1066.021In StockBaldor-Reliance1066.02 @ 1
thumbzoomWalker IndustrialCEWDM35451076.791In StockBaldor1076.79 @ 1
thumbzoomGalcoCEWDM3545-BLDR1076.791In StockBaldor35.01076.79 @ 1
thumbzoomGlobal IndustrialWBB3885381078.01In StockBaldor-Reliance1078.0 @ 1
motorsandcontrol.comCEWDM35451121.651In StockBaldor Reliance33.01121.65 @ 1
thumbzoomapexindustrialautomation.comCEWDM35451242.4512Baldor-Reliance1242.45 @ 1
thumbzoomcbtcompany.comCEWDM35451276.01In StockBaldor Reliance1276.0 @ 1
AmazonSCB0042G79IY1395.171In StockBaldor1395.17 @ 1
kirbyrisk.com25712751411.881In StockBaldor1411.88 @ 1
motionindustries.com024602651705.261In StockBaldor-Reliance1705.26 @ 1
thumbzoompumpproducts.comCEWDM35451914.01In StockBaldor1914.0 @ 1
thumbzoomZoroG2049338591990.011Baldor-Reliance1990.0 @ 1
thumbzoomRaptor SuppliesAJ6QAF3207.16322551In StockBALDOR MOTOR3207.1632255 @ 1
