- mpnEHM3218TA
- brandname: Baldor-Reliance
- manufacturername: Baldor-Reliance

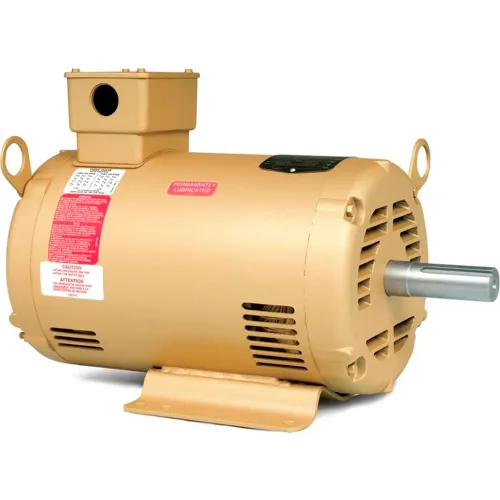

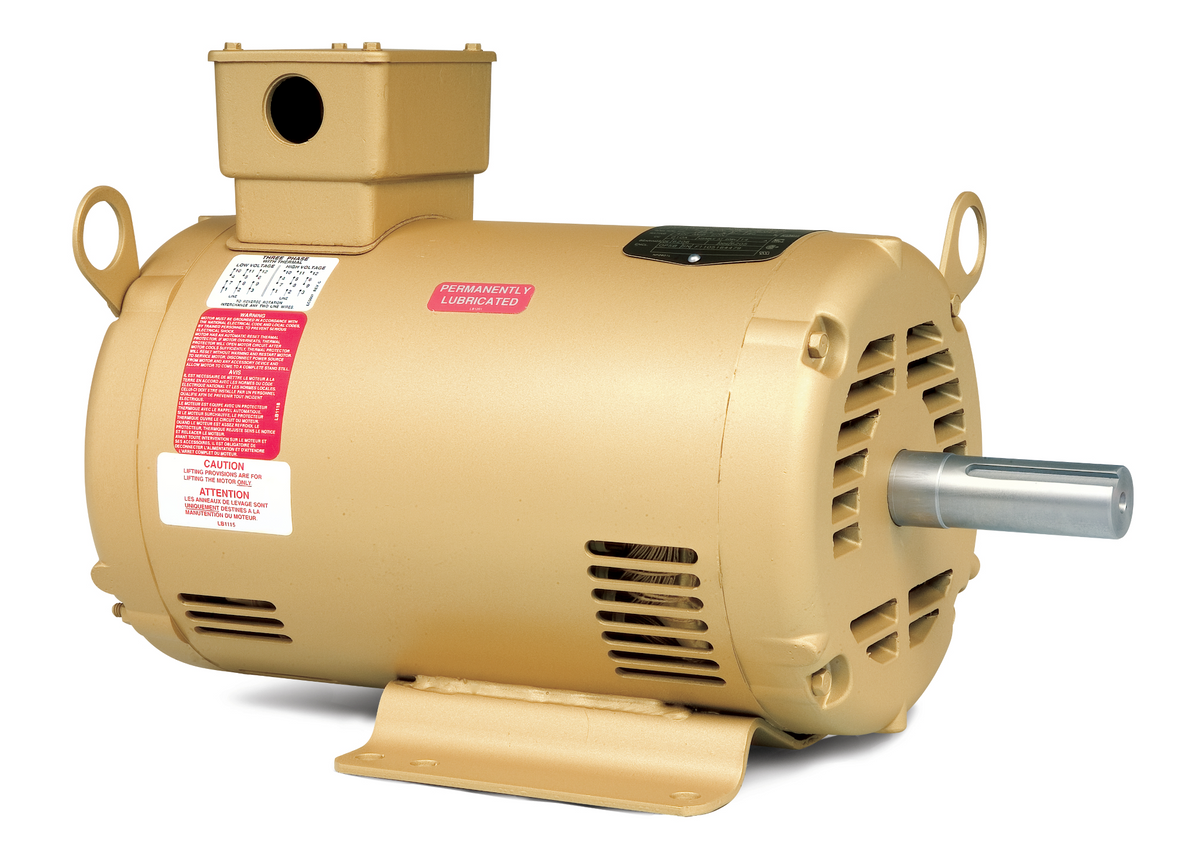

Baldor Electric, EHM3218TA, 5HP, 1750RPM, 3PH, 460V;230V;208V, 184T Frame, Standard Flange, Foot Mount, Open, General Purpose Motor
- Brand: Baldor Electric
- PartNumber: EHM3218TA
- Manufacturer: Baldor Electric
- Label: Baldor Electric
Attributes
| Key | Value |
|---|
| Amps | 6.6/14/13.2 |
| Application | HVAC |
| Bearings | Ball |
| Comments | 60 Hz |
| Composition | Steel |
| Construction | Rolled Steel |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Efficiency % | 89.5 % |
| Enclosure | Open |
| Enclosure Material | Steel |
| Enclosure Type | OPSB, OPSB (Open Slotte. |
| Estimated Weight | 84.00 |
| Family Series | Baldor Motors |
| FL Amps | 14-13.2/6.6 |
| FL Efficiency | 89.5 |
| Frame | 184T |
| Frame Type | 184T |
| Frequency | 60 Hz |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 5 HP |
| Horsepower Rating | 5 HP |
| HP | 5 |
| Hz | 60 |
| Insulation Class | F |
| Inverter Duty | Yes |
| Item Number | EHM3218TA |
| Manufacturer | Baldor, Baldor Reliance |
| Manufacturer Model # | 36H650S536E7 |
| Maximum Ambient Tempera. | 40? C |
| Mounting | Foot Mount, Rigid |
| Mounting Type | Footed, Foot Mount |
| NEMA Frame | 184T |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC |
| Number of Speeds | 1 |
| Overall Length | 16.5" |
| Part Number | EHM3218TA |
| Phase | 3, 3 Phase |
| Product Type | General Purpose, Three . |
| Rotation | Reversible |
| RPM | 1,750 RPM, 1750 RPM, 17. |
| Series | HV3 Super-E Series |
| Service Factor | 1.15 |
| Shaft Diameter | 1.125" |
| Ship Weight | 84 lbs. |
| Special Features | Automatic Thermal Overl. |
| Speed (RPM) | 1750 |
| Supply Voltage | 230/460 VAC |
| Thermal Protection | Automatic |
| UPC Code | 781568604137 |
| Voltage | 208V, 230V, 460V |
| Voltage (AC) | 208 VAC |
| Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | EHM3218TA | 1007.84 | 1 | In Stock | | Baldor | 84.0 | 1007.84 @ 1 |
| factorysupplyoutlet.com | OD39BM | 1104.02 | 1 | In Stock | | Baldor-Reliance | | 1104.02 @ 1 |
 | Walker Industrial | EHM3218TA | 1115.17 | 1 | In Stock | | Baldor | | 1115.17 @ 1 |
 | Global Industrial | WBB909118 | 1116.0 | 1 | In Stock | 15 | Baldor-Reliance | | 1116.0 @ 1 |
| motorsandcontrol.com | EHM3218TA | 1161.63 | 1 | In Stock | | Baldor Reliance | 84.0 | 1161.63 @ 1 |
| us.rs-online.com | 71934041 | 1288.67 | 1 | In Stock | | Baldor-Reliance | | 1288.67 @ 1 |
 | cbtcompany.com | EHM3218TA | 1321.49 | 1 | In Stock | | Baldor Reliance | | 1321.49 @ 1 |
 | Galco | EHM3218TA-BLDR | 1349.0 | 1 | In Stock | | Baldor | | 1349.0 @ 1 |
| kirbyrisk.com | 2997117 | 1462.21 | 1 | In Stock | | Baldor | | 1462.21 @ 1 |
| motionindustries.com | 04553011 | 1608.4 | 1 | In Stock | | Baldor-Reliance | | 1608.4 @ 1 |
 | Raptor Supplies | AJ6RWA | 2994.498 | 1 | In Stock | | BALDOR MOTOR | | 2994.498 @ 1 |
