Generic VEM3611T-5

B08P3N7Q6R

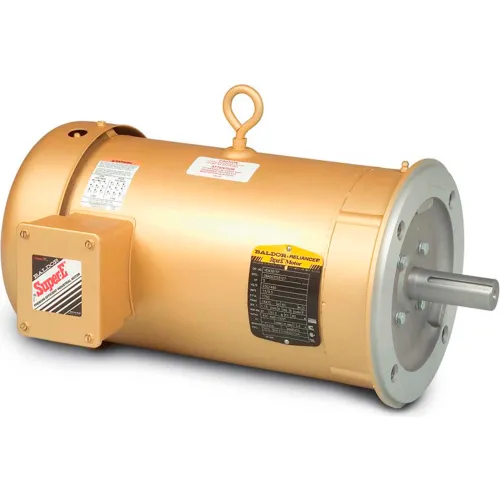

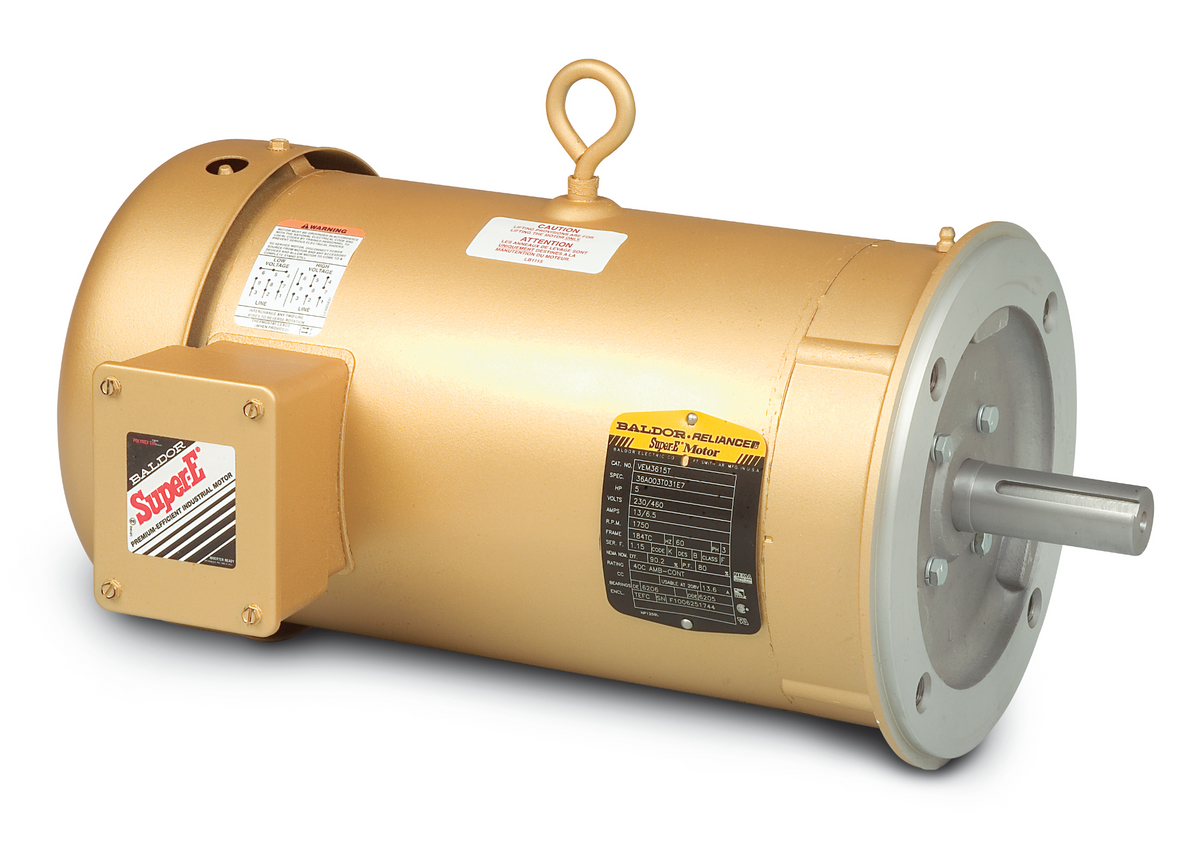

Baldor-Reliance VEM3611T-5 General Purpose Motor - 3 ph, 3 hp, 1800 rpm, 575 V, 182TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Footless/C-Face Flange Mount

Baldor-Reliance VEM3611T-5 General Purpose Motor - 3 ph, 3 hp, 1800 rpm, 575 V, 182TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Footless/C-Face Flange Mountzoom

Attributes

Key Value
Amps3.3
ApplicationGeneral Purpose
BearingsBall
Comments60 Hz
Country of Origin (subj.United States
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency89.5%
Efficiency %89.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialSteel
Enclosure TypeTEFC
Estimated Weight71.00
Family NameThree Phase Enclosed Fa.
Family SeriesBaldor Motors
FL Amps3.3
FL Efficiency89.5
Frame182TC
Frequency60 Hz
Gross Weight0 lbs
Hertz60
Horsepower3 hp
HP3
Hz60
Insulation ClassF
Inverter DutyYes
Item NumberVEM3611T-5
ManufacturerBaldor, Baldor Reliance
Manufacturer Model #36A003S582G1
Manufacturer Part NumberVEM3611T-5
Maximum Ambient Tempera.40? C
MountingC-Face, Footless
Mounting TypeFootless
NEMA Frame182TC
Net Weight0 lbs
Nominal Voltage575 VAC, 600 VAC
Number of Speeds1
Overall Length16.54"
Part NumberVEM3611T-5
Phase3, 3 Phase
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1760 RPM, 1760, 1,760 R.
SeriesGE3 Series
Service Factor1.15
Shaft Diameter1.125"
Ship Weight71 lbs.
Speed (RPM)1760
UPC Code781568388334
Voltage575V
Voltage (AC)575 VAC
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomemotorpro.comVEM3611T-5799.671In StockBaldor71.0799.67 @ 1
thumbzoomGalcoVEM3611T-5-BLDR878.981In StockBaldor878.98 @ 1
thumbzoomGlobal IndustrialWBB909328886.01In StockBaldor-Reliance886.0 @ 1
motorsandcontrol.comVEM3611T-5921.71In StockBaldor Reliance71.0921.7 @ 1
thumbzoompumpproducts.comVEM3611T-51046.831In StockBaldor1046.83 @ 1
thumbzoomcbtcompany.comVEM3611T-51048.541In StockBaldor Reliance1048.54 @ 1
thumbzoomZoroG33384361063.751In StockBaldor-Reliance1063.75 @ 1
us.rs-online.com719444431106.061In StockBaldor-Reliance1106.06 @ 1
motionindustries.com051700211401.631In StockBaldor-Reliance1401.63 @ 1
thumbzoomRaptor SuppliesAJ6YQY2635.45992451In StockBALDOR MOTOR2635.4599245 @ 1
