- mpnYPC345A
- brandname: Baldor-Reliance
- manufacturername: Baldor-Reliance

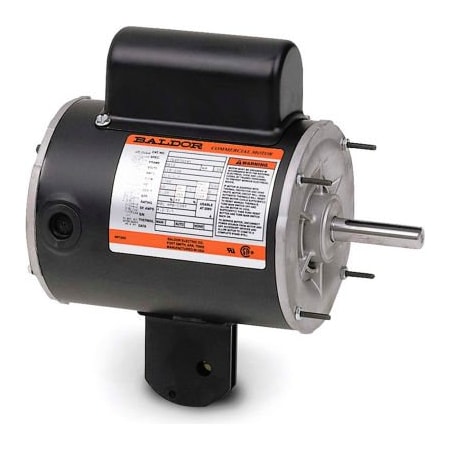

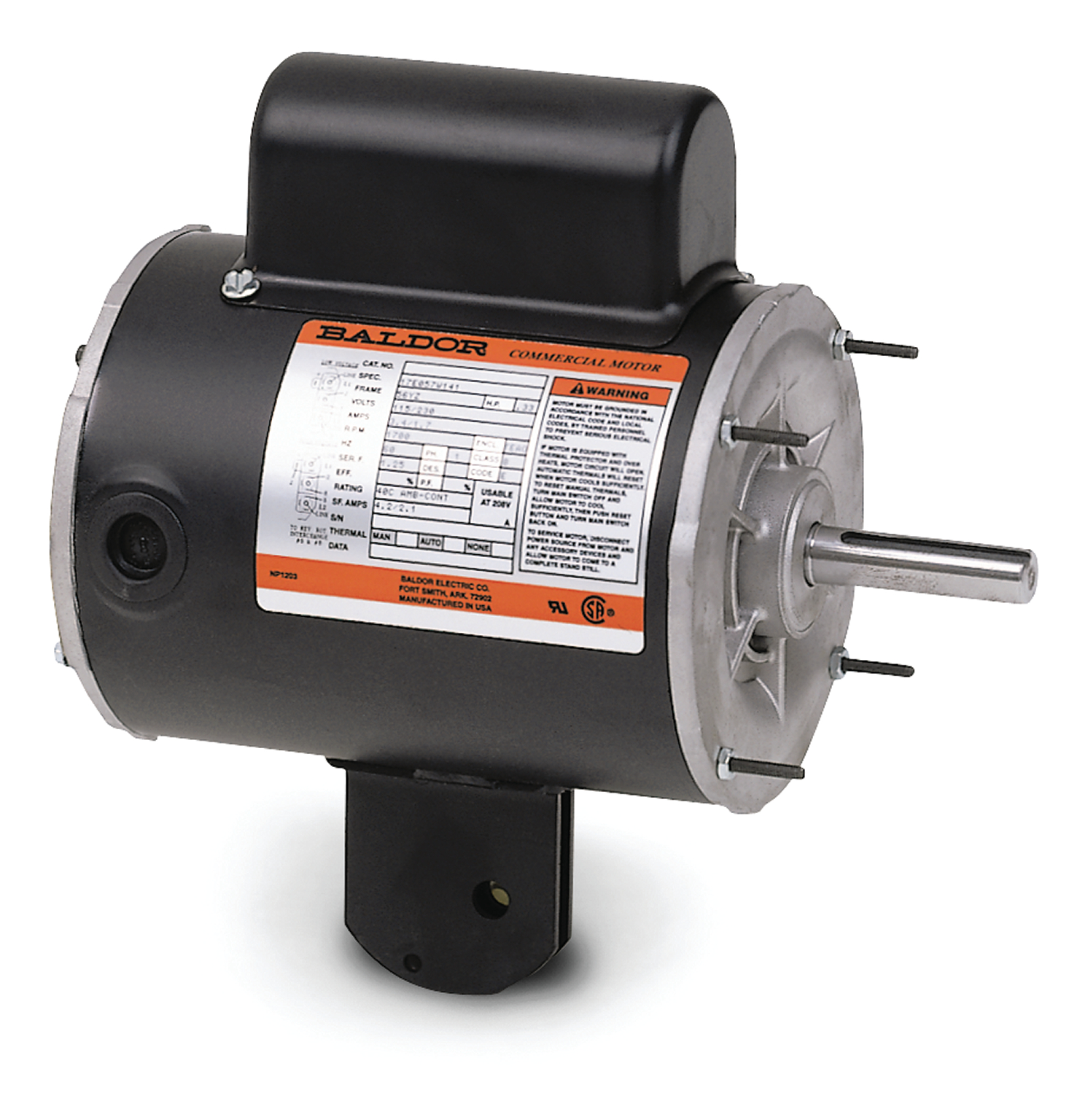

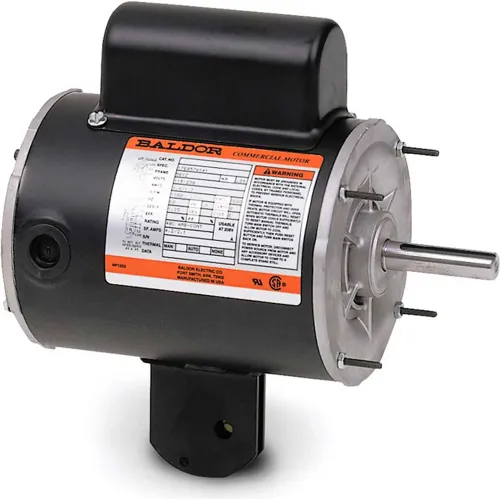

Baldor YPC345A Commercial Duty Motor
- Brand: Baldor
- PartNumber: YPC345A
- Manufacturer: Baldor
- Label: Baldor
Attributes
| Key | Value |
|---|
| Amps | 5.1 |
| Application | Farm Duty |
| Bearings | Ball |
| Comments | 60 Hz |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Country of Origin (subj. | United States |
| Drive End Flange Type | Standard |
| Duty Cycle | Continuous |
| Efficiency | 70.0% |
| Efficiency % | 70 % |
| Enclosure | TEAO, Totally Enclosed . |
| Enclosure Material | Steel |
| Enclosure Type | TEAO (Totally Enclosed . |
| Estimated Weight | 24.00 |
| Family Series | Baldor Motors |
| FL Amps | 5.1 |
| FL Efficiency | 70 |
| Frame | 56YZ |
| Frame Type | 56YZ |
| Frequency | 60 Hz |
| Gross Weight | 22 lbs |
| Hertz | 60 |
| Horsepower | 1/2 hp |
| Horsepower Rating | 0.5 HP |
| HP | 0.5, 1/2 |
| Hz | 60 |
| Insulation Class | B |
| Item Number | YPC345A |
| Manufacturer | Baldor-Reliance, Baldor. |
| Manufacturer Model # | 34M197R236G1 |
| Manufacturer Part Number | YPC345A |
| Maximum Ambient Tempera. | 40? C |
| Motor Construction | Steel |
| Motor Amperage (Full Lo. | 5.1 Amp |
| Motor Enclosure Type | Totally Enclosed Air Ov. |
| Motor Frame Model | 56YZ |
| Motor Frequency | 60 Hz |
| Motor Horsepower | 0.5 HP |
| Motor Insulation Class | Class B Insulation |
| Motor Nema Design | Nema Design D |
| Motor RPM's | 1800 RPM |
| Motor Voltage | 115 Volt |
| Motor Voltage Phases | 1 Phase |
| Mounting | Cradle, Yoke Pedestal |
| Mounting Type | Cradle, Yoke Pedestal |
| Net Weight | 22 lbs |
| Nominal Voltage | 120 VAC |
| Number of Speeds | 1 |
| Overall Length | 10.68" |
| Part Number | YPC345A |
| Phase | 1, 1 Phase |
| Product Type | Fractional HP (HVAC) |
| Rotation | Reversible |
| RPM | 1,625 RPM, 1625 RPM, 16. |
| Series | HV1 Series |
| Service Factor | 1, 1.00 |
| Shaft Diameter | 0.625" |
| Ship Weight | 24 lbs. |
| Special Features | Automatic Thermal Overl. |
| Speed (RPM) | 1625 |
| Supply Voltage | 115 VAC |
| Thermal Protection | Automatic |
| UPC Code | 781568407707 |
| Voltage | 115, 110-120V |
| Voltage (AC) | 110-120 VAC |
| Volts | 115 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 26910 | 316.8 | 1 | In Stock | | Baldor | | 316.8 @ 1 |
 | Purvis | YPC345A | 346.32 | 1 | In Stock | | Baldor-Reliance | | 346.32 @ 1 |
 | emotorpro.com | YPC345A | 354.82 | 1 | In Stock | | Baldor | 24.0 | 354.82 @ 1 |
| factorysupplyoutlet.com | PI43ZX | 390.3 | 1 | In Stock | | Baldor-Reliance | | 390.3 @ 1 |
 | Walker Industrial | YPC345A | 394.24 | 1 | In Stock | | Baldor | | 394.24 @ 1 |
 | Galco | YPC345A-BLDR | 394.24 | 1 | In Stock | | Baldor | 22.0 | 394.24 @ 1 |
 | Global Industrial | WBB392005 | 395.95 | 1 | In Stock | | Baldor-Reliance | | 395.95 @ 1 |
| motorsandcontrol.com | YPC345A | 410.66 | 1 | In Stock | | Baldor Reliance | 24.0 | 410.66 @ 1 |
| us.rs-online.com | 71934557 | 447.99 | 1 | In Stock | | Baldor-Reliance | | 447.99 @ 1 |
 | pumpproducts.com | YPC345A | 460.17 | 1 | In Stock | | Baldor | | 460.17 @ 1 |
 | cbtcompany.com | YPC345A | 467.17 | 1 | In Stock | | Baldor Reliance | | 467.17 @ 1 |
| rspsupply.com | BALDOR YPC345A | 476.67 | 1 | In Stock | | Baldor | | 476.67 @ 1 |
| kirbyrisk.com | 2093865 | 516.93 | 1 | In Stock | | Baldor | | 516.93 @ 1 |
| motionindustries.com | 02461684 | 613.83 | 1 | In Stock | | Baldor-Reliance | | 613.83 @ 1 |
 | Zoro | G304987578 | 771.53 | 1 | In Stock | | Baldor-Reliance | | 771.53 @ 1 |
 | Raptor Supplies | AJ6ZMQ | 1154.66949 | 1 | In Stock | | BALDOR MOTOR | | 1154.66949 @ 1 |
