- mpn8103 0601000
- brandname: Belden
- manufacturername: Belden

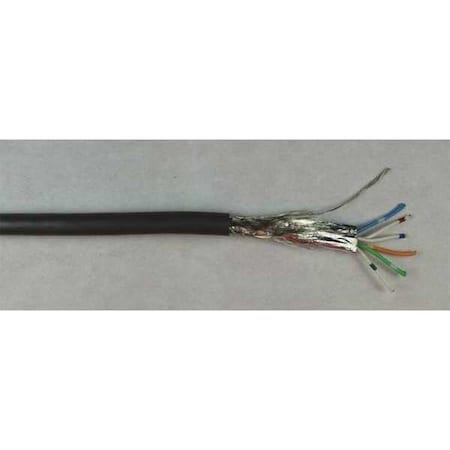

BELDEN 8103 0601000 SHLD MULTIPR CABLE 3PR 1000FT 300V CHR
- Brand: Belden
- PartNumber: 8103 0601000
- Model: 8103 0601000
- Color: Silver
- PackageQuantity: 1
- Manufacturer: BELDEN
- Label: BELDEN
Attributes
| Key | Value |
|---|
| Application | For EIA RS-232, EIA RS-. |
| Application - Communica. | Computer Systems |
| Cable Sub-Category | Multi-Conductor |
| Cable Type | STP |
| Conductor Material | Tinned Copper (TC), Tin. |
| Conductor Size | 24 AWG |
| Conductor Size - Data C. | 24 AWG |
| Configuration | 3 Pair |
| Country of Origin | US - United States |
| Country of Origin (subj. | United States |
| Diameter | 0.283 in |
| ECCN | EAR99 |
| Fire Rating - Data Cable | Commercial |
| Insulation Material | Polyethylene (PE), Foam. |
| Item | Communication Cable |
| Item - Data Cable | Communication Cable |
| Jacket Color | Chrome, Silver |
| Jacket Material | PVC, Polyvinyl Chloride. |
| Jacket Material - Wire . | PVC |
| Length | 1000 ft, 1000 ft. |
| NEC Article and Type | 800 CM |
| No. of Conductors | 6 |
| Nominal Outside Dia. | 0.283 in |
| Number of Conductors | 6 |
| Number of Pairs | 3 |
| Operating Temperature | -30 to +80 ?C |
| Outer Diameter | 0.283 in. |
| Package Type - Data Cab. | Reel in a Box |
| Packaging | Coil |
| Plenum / Riser Rated | Riser Rated |
| Product Header | Overall Foil/Braid Shie. |
| Series | Datalene 8103 Series |
| Shield Material | Aluminum/Polyester Tape. |
| Shielded | Overall Beldfoil Shield. |
| Shielded / Unshielded | Shielded |
| Shielding | Braid, Foil |
| Shielding Material | Braid/Foil |
| Solid / Stranded | Stranded |
| Spool Length | 1,000 ft |
| Standards | CEC: CM, NEC: CM, RoHS . |
| Stranding | 7x32 |
| Suggested Voltage Ratin. | 300 V |
| Temp. Range | -22 Degrees to 176 Deg. |
| Temperature, Rating | -30 to 80 C |
| Total Number of Conduct. | 6 (3 Pair) |
| UNSPSC | 26121609 |
| Voltage Rating | 300 V |
| Wire Size | 24 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | turtle.com | BDN 8103 0601000 | 3.2 | 1 | 1000 | | Belden | | 3.2 @ 1000 |
| alldataresource.com | B8103-1000 | 5.3 | 1 | 1000 | | Belden | | 5.3 @ 1000 |
| Digi-Key | BEL5305-1000-ND | 1857.1 | 1 | 1000 | | Belden Inc. | | 1857.1 @ 1000 |
| Onlinecomponents.com | 8103-060-1000 | 2076.0 | 1 | 1000 | | Belden | | 2076.0 @ 1000 |
| Mouser | 566-8103-1000 | 2227.0 | 1 | 1000 | | Belden | | 2227.0 @ 1000 |
 | Zoro | G3724589 | 3527.75 | 1 | 1000 | | Belden | 48.0 | 3527.75 @ 1000 |
| Graybar | 99753240 | 4163.2304 | 1 | 1000 | | Belden | | 4163.2304 @ 1000 |
 | Newark | 03F4115 | 4498.2 | 1 | 12000 | | BELDEN | | 4498.2 @ 1000 |
| us.rs-online.com | 70005539 | 4707.02 | 1 | 1000 | | Belden | | 4707.02 @ 1000 |
